1804.2-M12X1,5-ST GN 1804.2 Gesleufde borgmoeren

1804.2-M12X1,5-ST

GN 1804.2 Gesleufde borgmoeren

met draadborging
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 1804.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 1804.2-M12x1,5-ST
d1
M12x1.5
d2
28
d3
23
d4
M4
b
5
h
6
Code no. for
C-Spanner
DIN 1810-A25-28
20

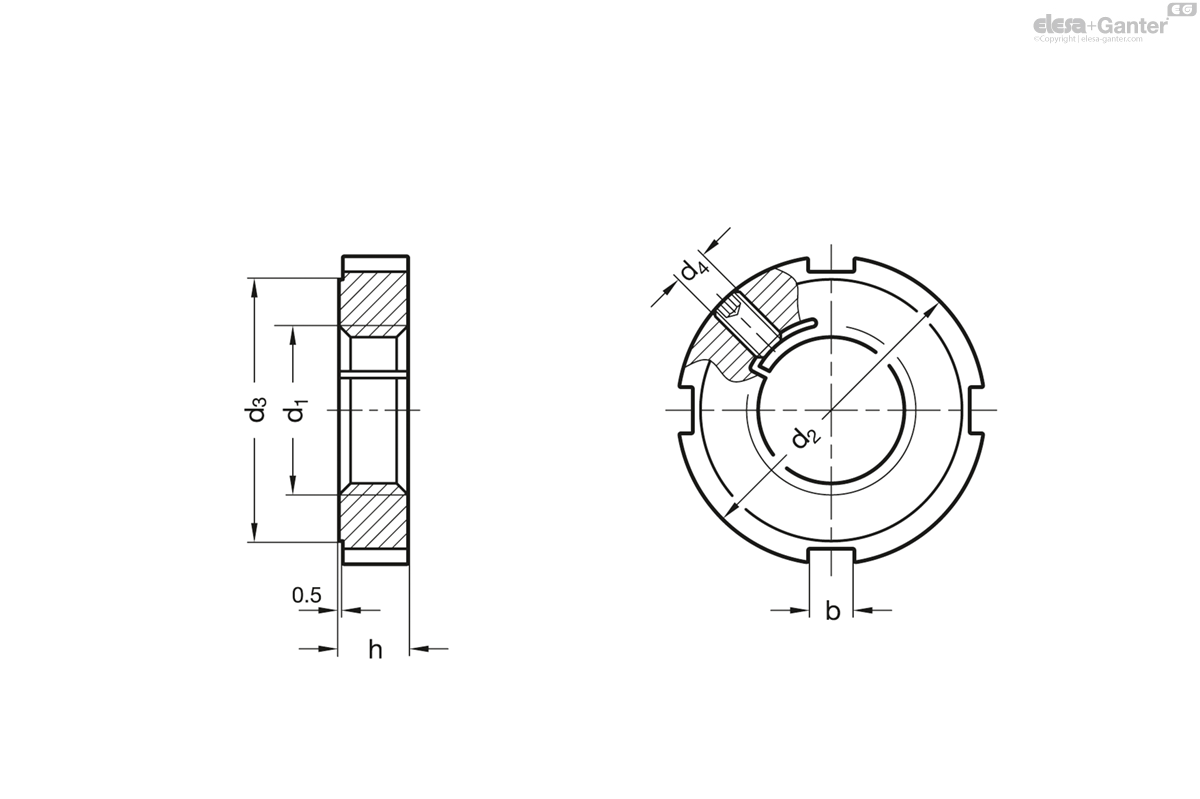

1804.2-M12X1,5-ST drawing

Nut

Steel ST

  • Tensile strength class 5.8
  • blackened

Set screw

Steel, blackened

GN 1804.2 slotted locknuts with thread locking can be secured against twisting by twisting off the threaded shaft via a d4 set screw. The thread flanks of the nut ensure damage-free securing and can be used as often as needed.

The d3 offset plane surface is intended as an axial contact surface.

  • C-Spanner DIN 1810 (Code no. see table)
