810-530-C GN 810 Staal

810-530-C

GN 810 Staal

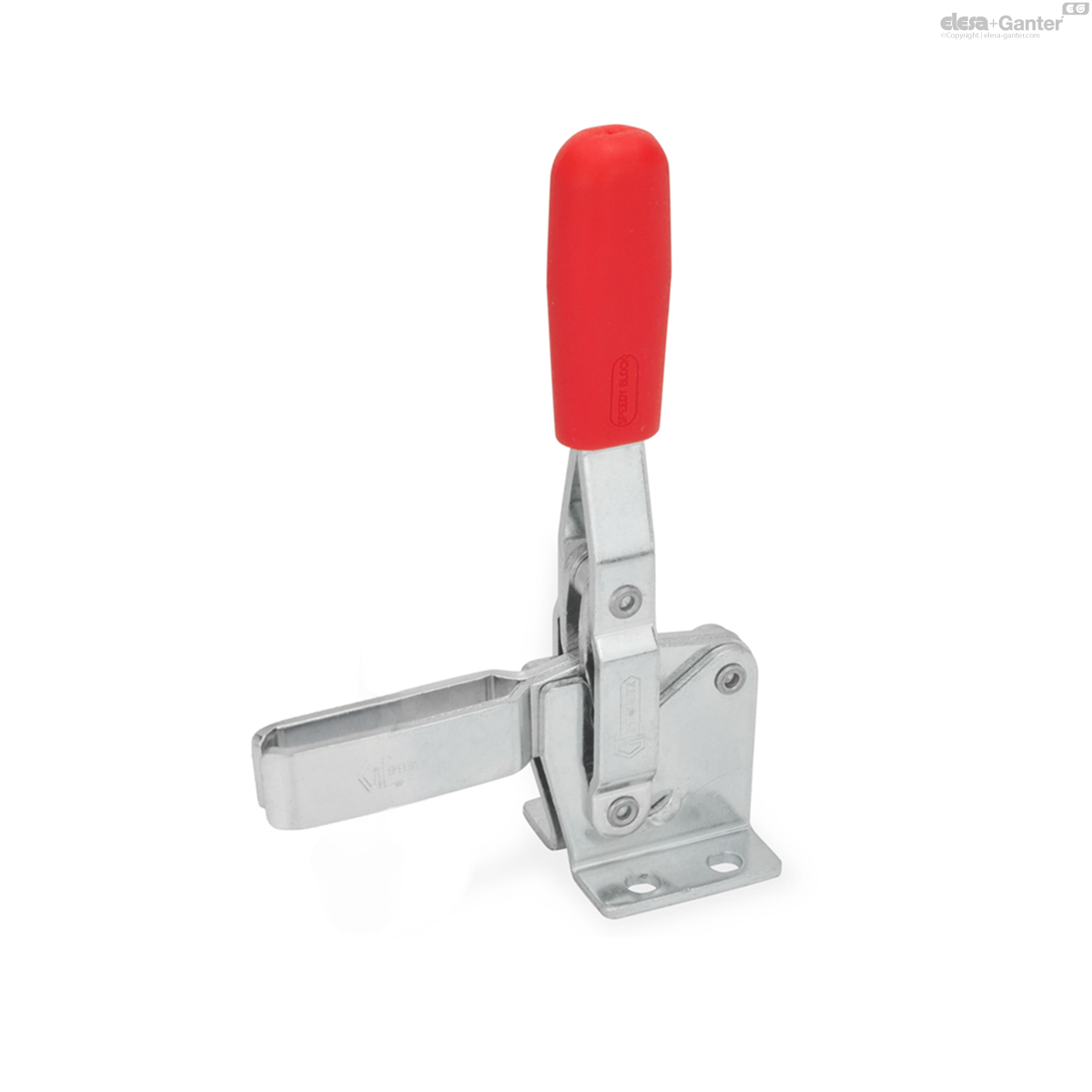

Staal/roestvrij staal, bedieningshendel verticaal, met horizontale montagesokkel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 810

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 810-530-C
Size
530
Fh in N
4500
a ≈
90
b1
80
b2
95
b3
12.5
d1
M 12
d2 ≈
12.5
h1 ≈
303
h2
84.5
h3
32
h4
49
h5
52
l1 ≈
223
l2 ≈
125
l4
100
m1
50
m2
51
m3
70
m4
70
r ≈
212
s1
7
w
27
2180

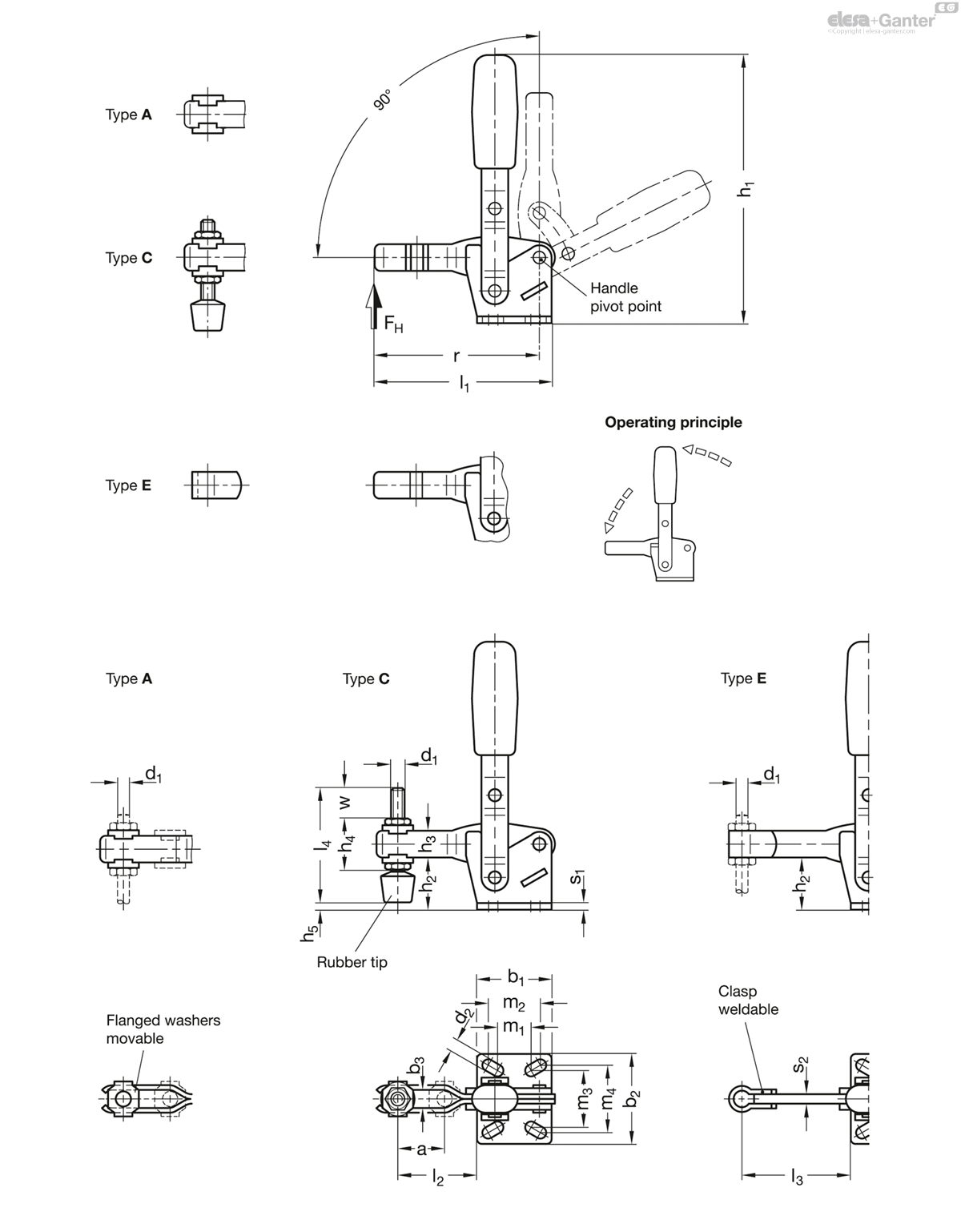

810-530-C drawing

Types

  • Type A: U-bar version, with two flanged washers
  • Type C: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type E: Solid bar version, with clasp

Version in Steel

  • Case-hardened Steel C10, zinc plated, blue passivated
  • Bearing pins tempered
  • Bearing rivets (for size 230 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Steel, zinc plated
  • Rubber tip 85 Shore A

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Stainless Steel AISI 304
  • Rubber tip 85 Shore A

GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C.

Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN 809 clamp mounts to hold the work piece in place.

  • Spindle assemblies
  • GN 801 clamp mounts for toggle clamps (for Type A)
  • GN 809 clamp mounts for toggle clamps (for Type E)
