56-8-30-SW GN 56 Magneten

56-8-30-SW

GN 56 Magneten

voor profielsystemen
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 56

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 56-8-30-SW
b1
8
a
30
b2
11.6
h1
2.3
h2
9.3
l
41
A/F
2
Nominal adhesive forces in N
30
10

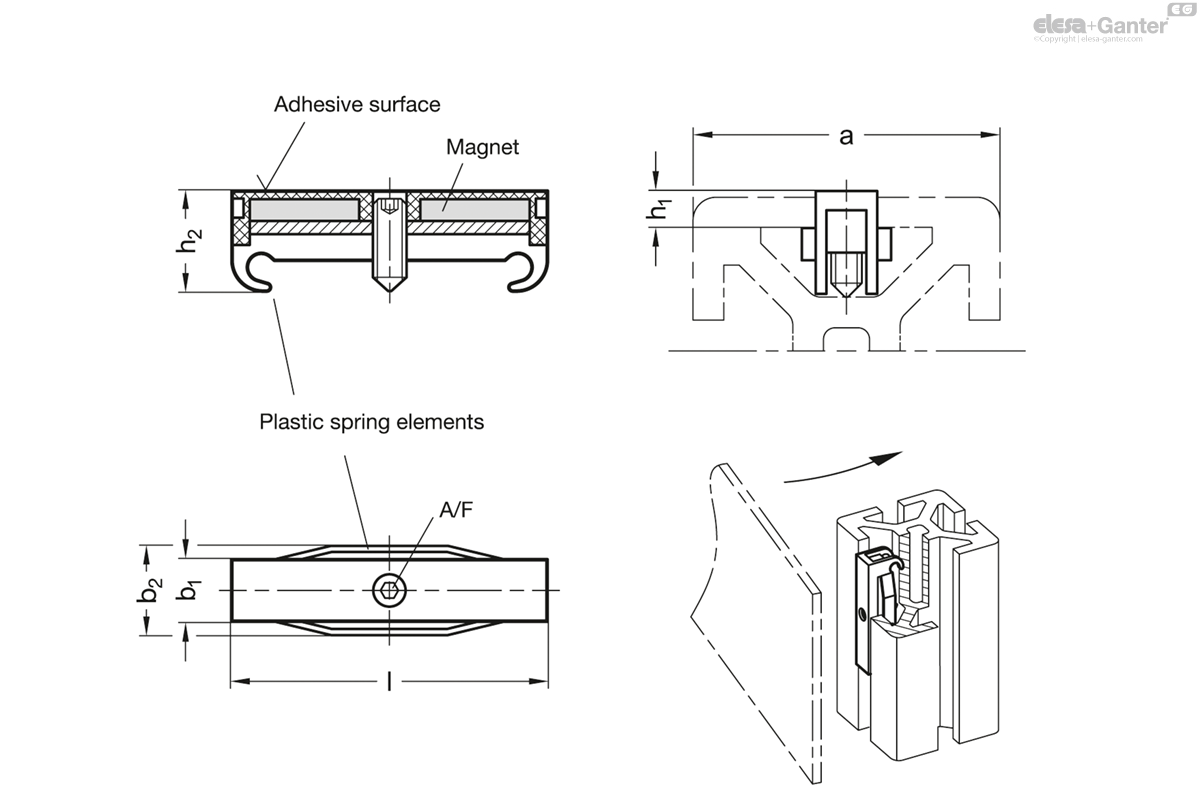

56-8-30-SW drawing

Plastic

Technopolymer (Polyamide PA)

black, matt SW

Material of the magnet

NdFeB

Neodymium, iron, boron

temperature resistant up to 80 °C

Steel insert, grub screw

zinc plated, blue passivated

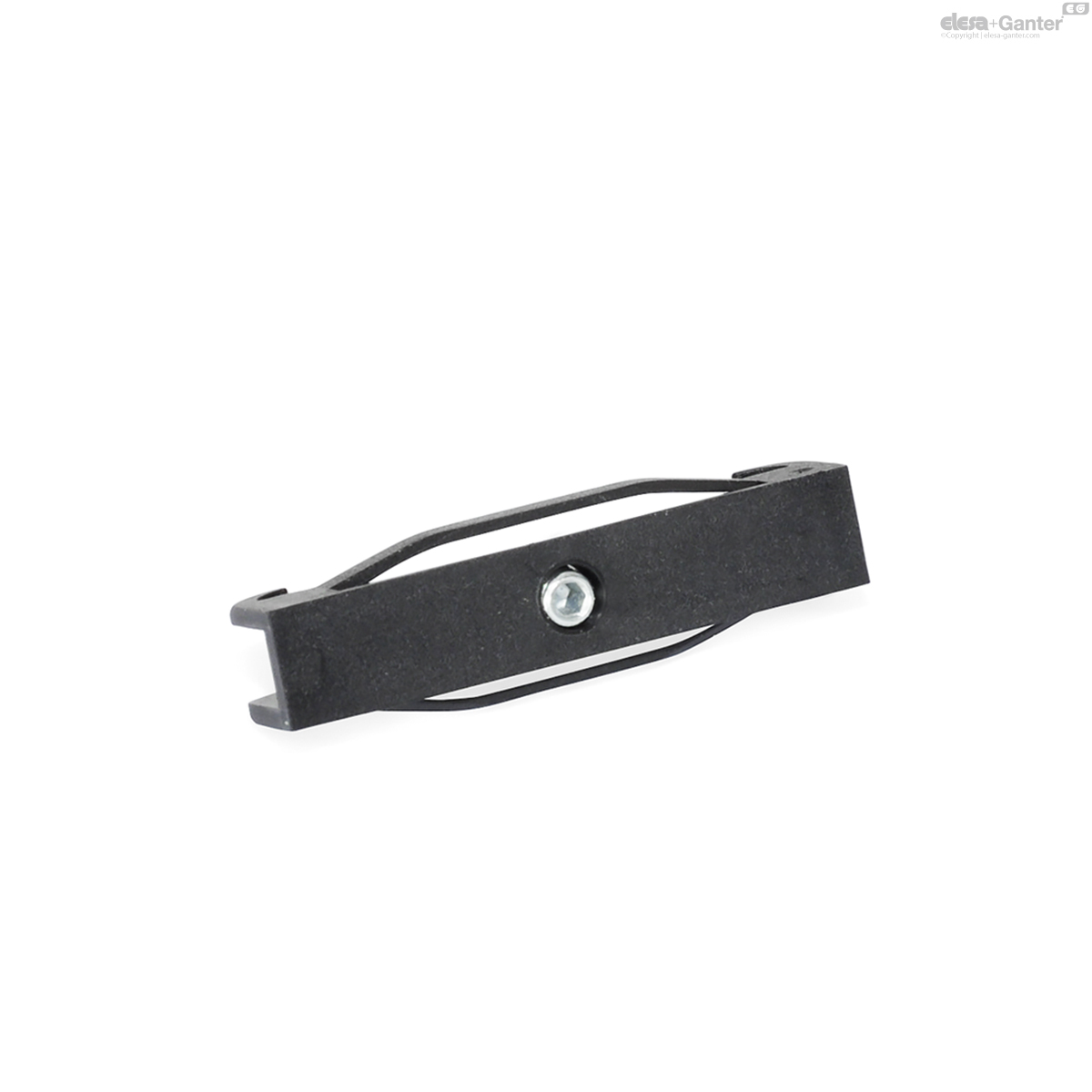

With GN 56 retaining magnets doors, covers or even tools and accessories can simply be attached to profile systems using magnets.

Thanks to the side-mounted plastic spring elements the retaining magnet can be introduced into a profile nut at any point. When affixed this way, the magnet holds with a multiple of its magnet nominal holding force in the nut. If necessary, the retaining magnet can be taken out of the nut again with a suitable screw driver via the recesses on the front.

Lightly turning the threaded pin against the groove base stops the retaining magnet from moving in the direction of the nut. Additional protection against sideward movement can be achieved with nuts for T-nuts  GN 506, for example.
