1024-ST-3-E GN 1024 Staal

1024-ST-3-E

GN 1024 Staal

Staal / RVS
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 1024

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 1024-ST-3-E
d1
3
d2
10 ... 16
d3
3.5
h
23
l1
72
l2
42
l3
30
l4
44
Load in N ≈
Mounting
55
Load in N ≈
Dismantling
40
Load in N ≈
for bolt Ø
16
10

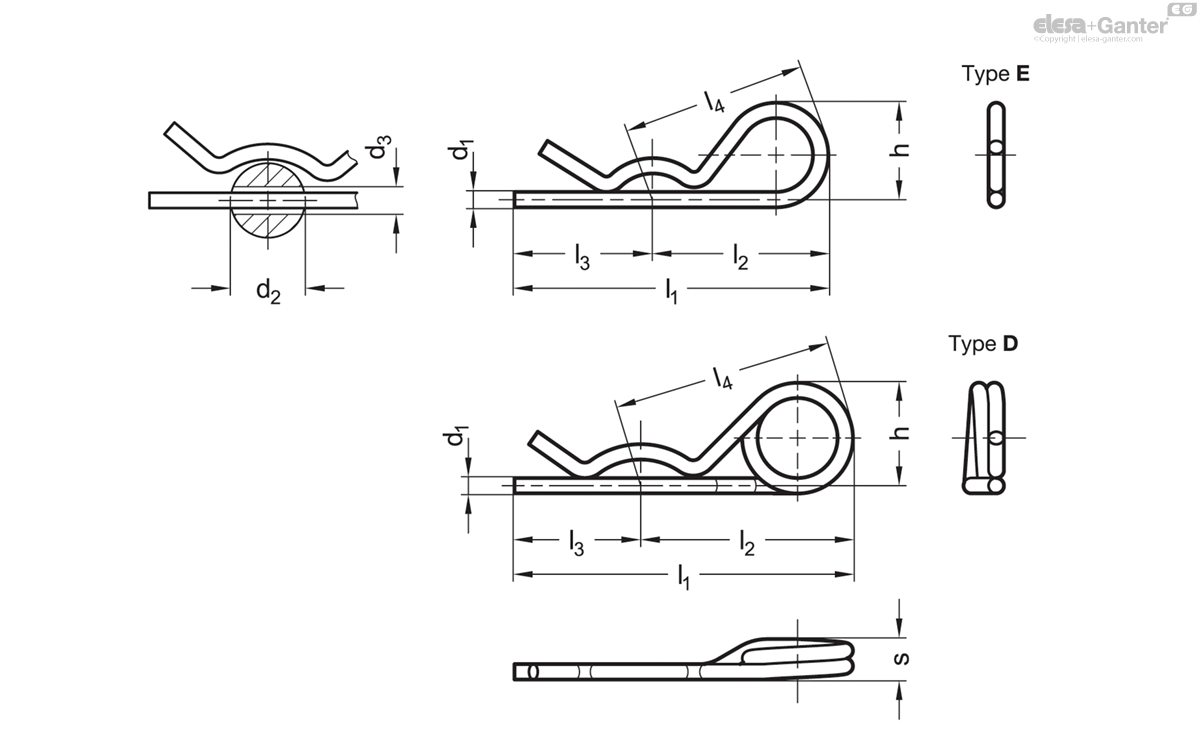

1024-ST-3-E drawing

Types

  • Type E: with single winding
  • Type D: with double winding

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel NI

AISI 301

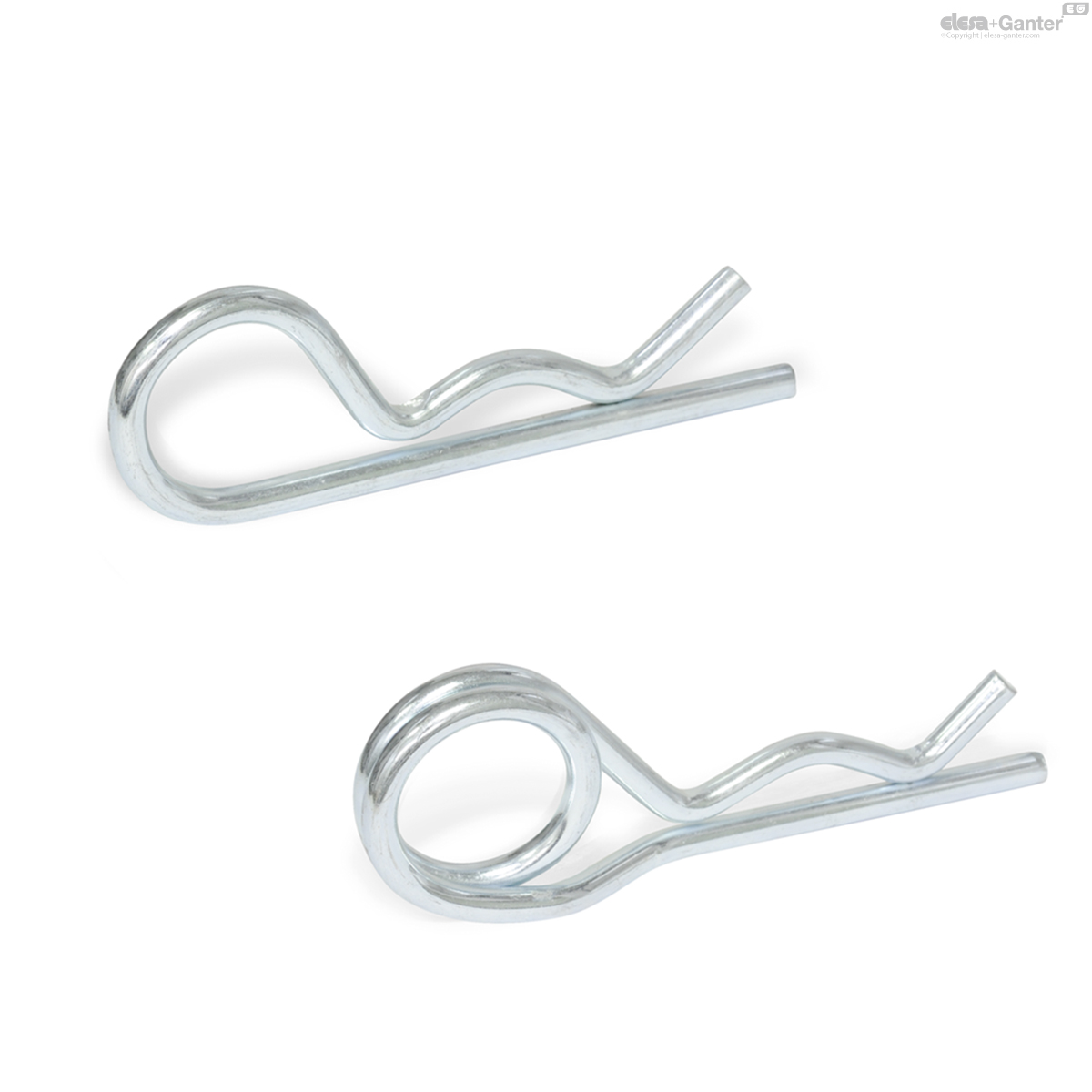

Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935.

Owing to their double winding, spring cotter pins of Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope inclding a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.
