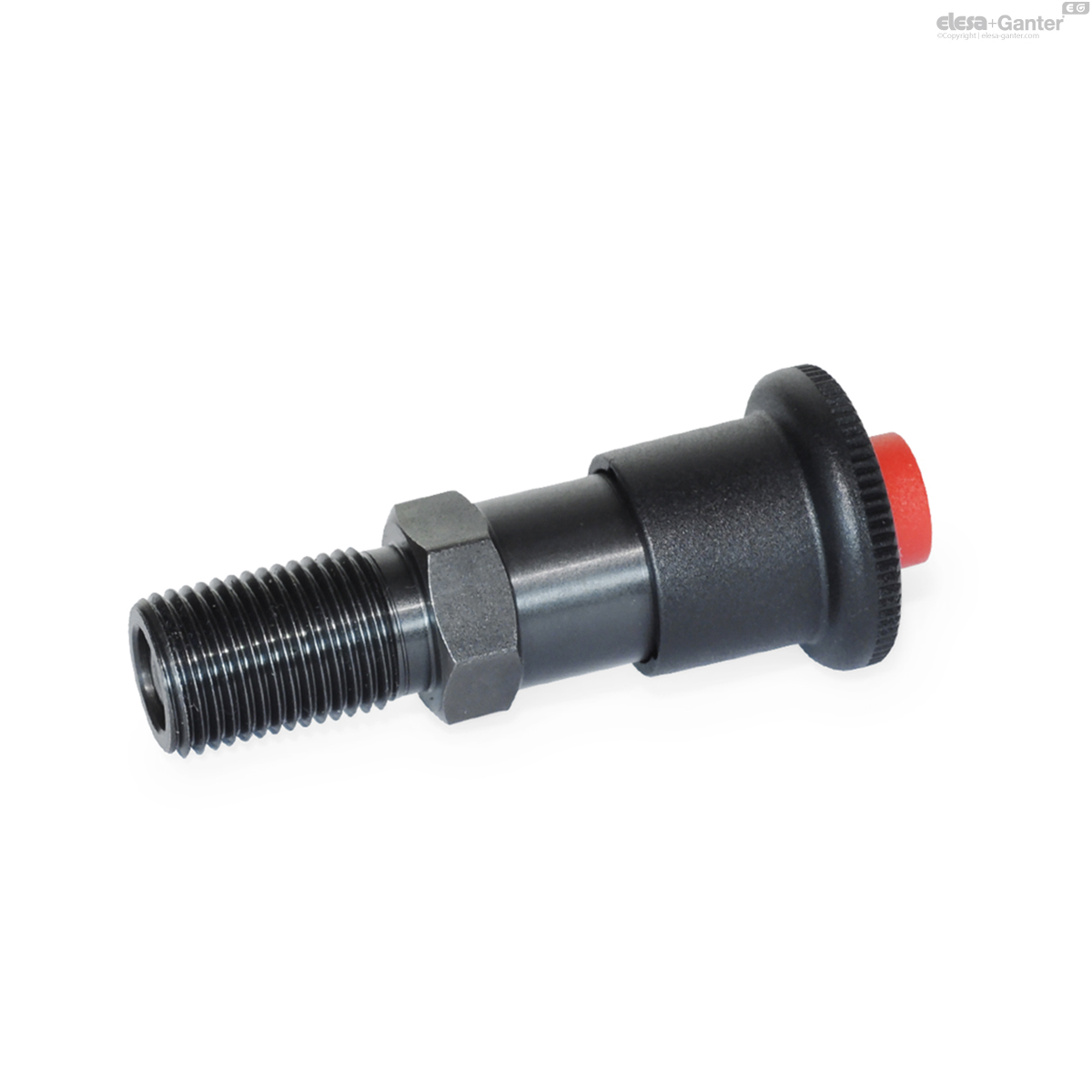

414.1-10-12-A GN 414.1 Blokkeerbouten
Staal / Roestvrij staal, met klik-veiligheidsvergrendeling, ontgrendeling met drukknop
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 414.1-10-12-A
- d1 Pin -0.02/-0.04 Bore H7
- 10
- l1 min.
- 12
- d2
- M 16 x 1.5
- d3
- 30
- e
- 21.9
- l2 ≈
- 59.5
- l3
- 26
- l4
- 8
- A/F
- 19
- Spring load in N ≈
initial - 9.5
- Spring load in N ≈
end - 38
- 78
Types
- Type A: without lock nut
- Type AK: with lock nut
Version in Steel
- blackened
- Pin hardened
Version in Stainless Steel AISI 303 NI
Pin chemically nickel plated
Knob
Plastic (Polyamide PA)
- black matt finish
- not removable
- black grey, RAL 7021, matt
Push-button
Technopolymer (Polyacetal POM)
red, RAL 3000, matt
Indexing plungers GN 414.1 with click-type safety lock are used when the plunger pin is to be briefly prevented from protruding. When the pin is retracted to its end position, the button engages with a clearly audible click.
The safety lock can be unlocked only by exerting axial pressure on the red safety pushbutton, with the plunger pin then returning to its starting position by spring force.
