717-8-M12-CK-ST GN 717 Staal

717-8-M12-CK-ST

GN 717 Staal

Staal / roestvrij staal, met en zonder rustpositie
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 717

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 717-8-M12-CK-ST
d1
Bore
+0.03/+0.08 Pin -0.05
8
d2
M 12
d4
21
e
13.8
l2
8
l3
24
l5 min.
20.5
l6
66.9
l7
13.5
A/F
12
Max. tightening torque
in Nm
20
Spring load in N ≈
initial
6
Spring load in N ≈
end
22
40

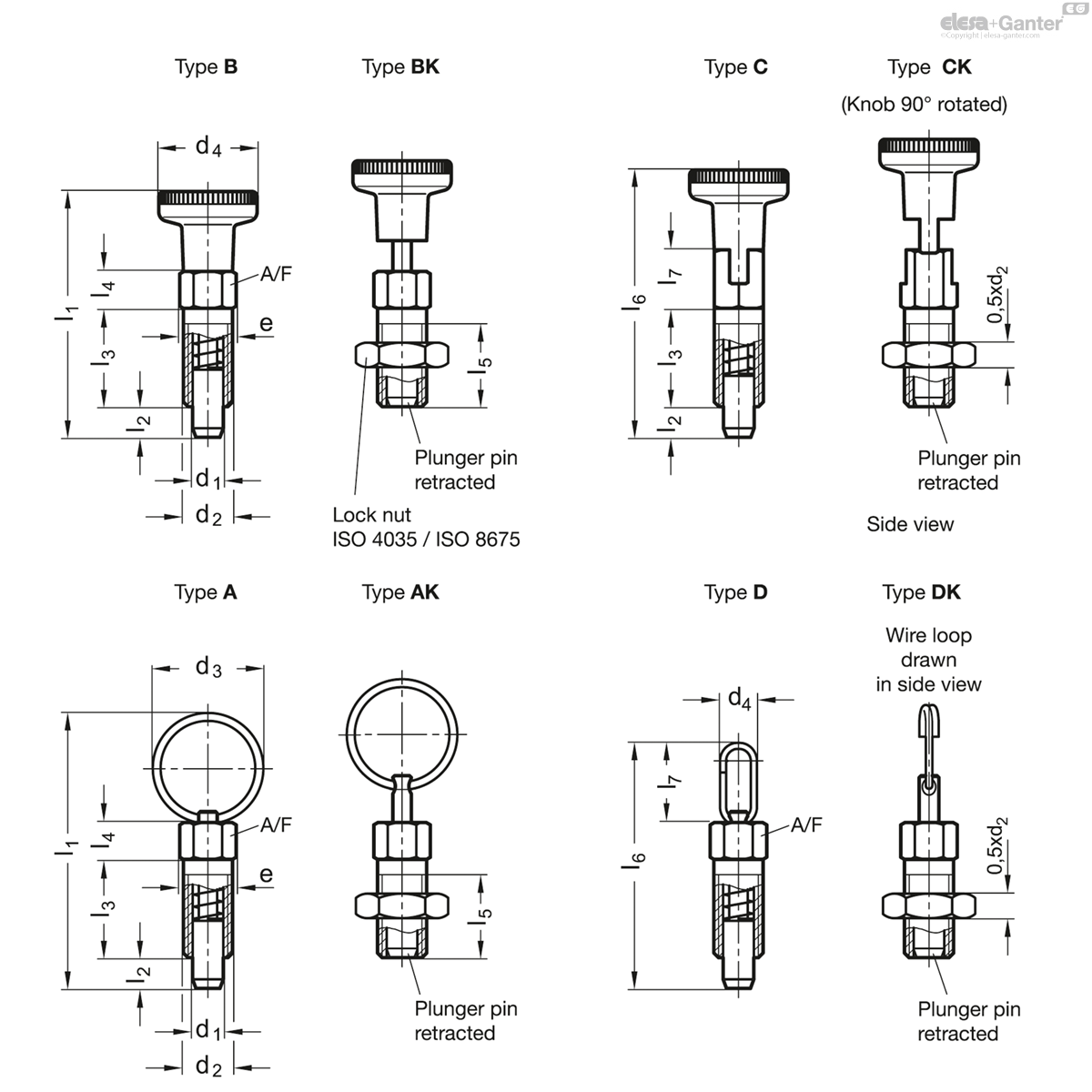

717-8-M12-CK-ST drawing

Types

  • Type A: with lifting ring, without lock nut
  • Type AK: with lifting ring, with lock nut
  • Type B: without rest position (Knob), without lock nut
  • Type BK: without rest position (Knob), with lock nut
  • Type C: with rest position (Knob), without lock nut
  • Type CK: with rest position (Knob), with lock nut
  • Type D: with wire loop, without lock nut
  • Type DK: with wire loop, with lock nut

Threaded body

  • Version in Steel zinc plated, blue passivated ST
  • Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Lifting ring / Wire loop

Stainless Steel AISI 301

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

GN 717 Indexing plungers are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
