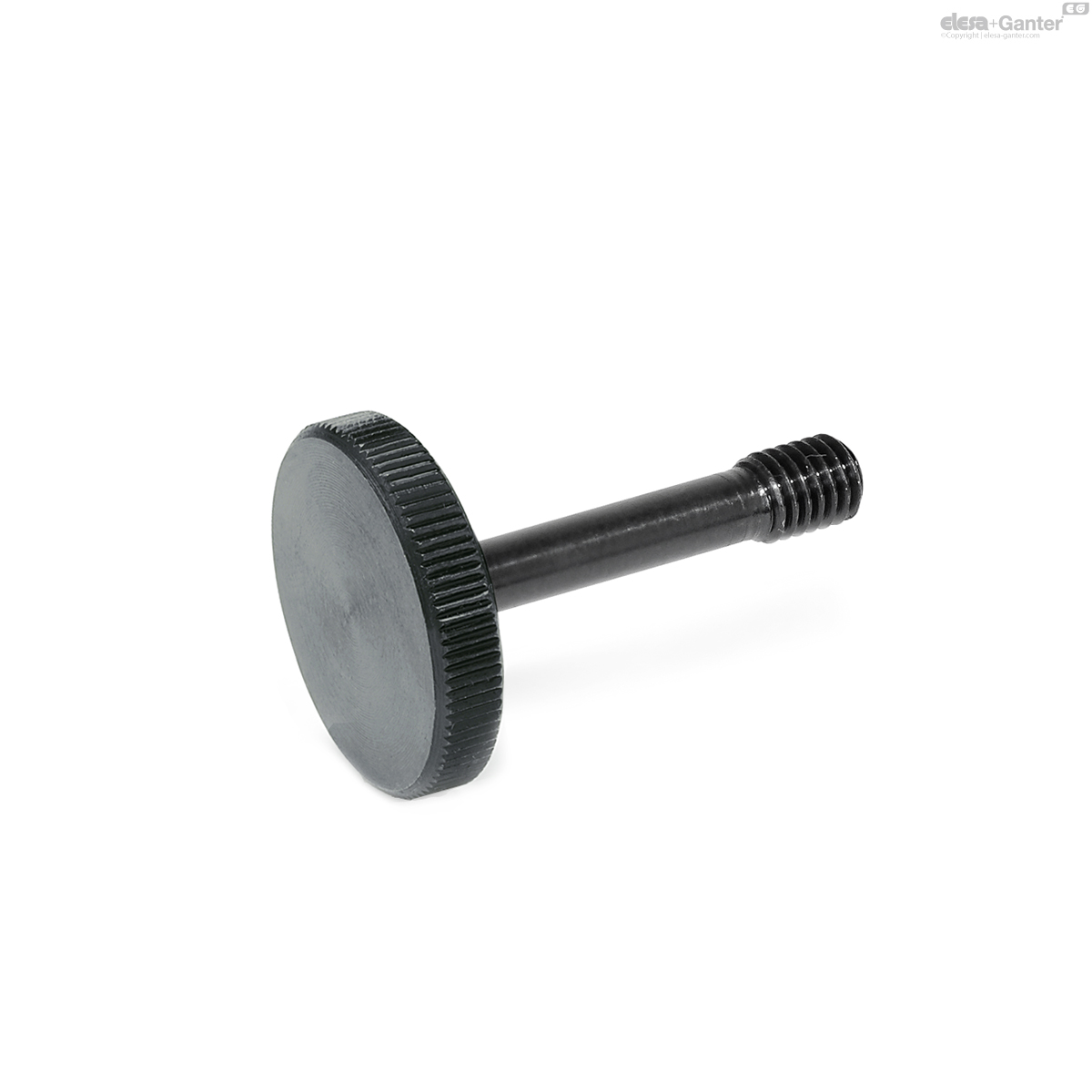

653.2-M6-26-ST
GN 653.2 Staal
Lt: 1-2 weken Alle maten en varianten van GN 653.2
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 653.2-M6-26-ST
- d1
- M6
- l1
- 26
- a1
- 6-8
- a2
- 8-16
- a3
- 16-18
- d2
- 24
- d3
- 12
- d4 -0.2
- 4.8
- d5
- 6.5
- h
- 8
- k
- 5
- l2
- 8
- l3
- 3
- 23
Version in Steel ST
- Tensile strength class 5
- visible face fine turned
- black oxide finish
Version in Stainless Steel AISI 303 NI
- AISI 303
- visible face fine turned
- matt shot-blasted
Knurled screws GN 653.2 can be used for to prevent loss of the thumb screw, due to the d4 recessed portion of the stud.
When using, instead of a typical tapped and bore hole, it is necessary to provide tapped bores with a thread d1 on each of the two elements to be assembled. Additionally, a clearance bore of d5 on one or both sides must be cut.

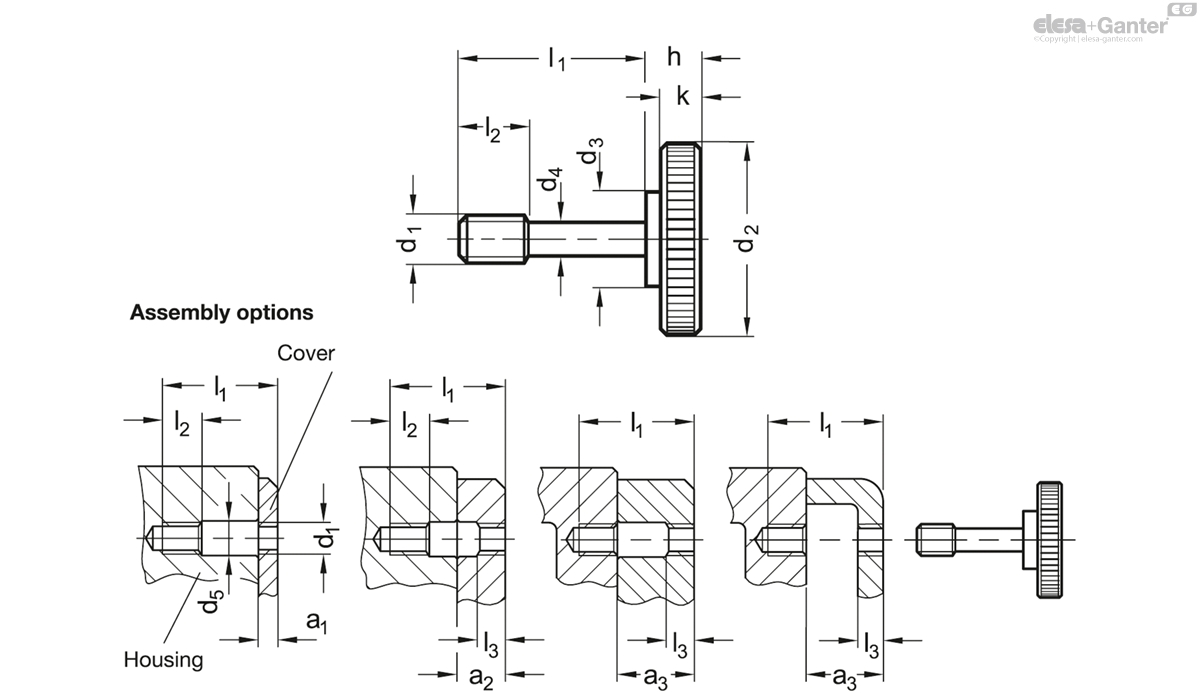

Depending on the design and required clamping length a1 ... a3 of the component being attached, there are a number of assembly options as shown.
