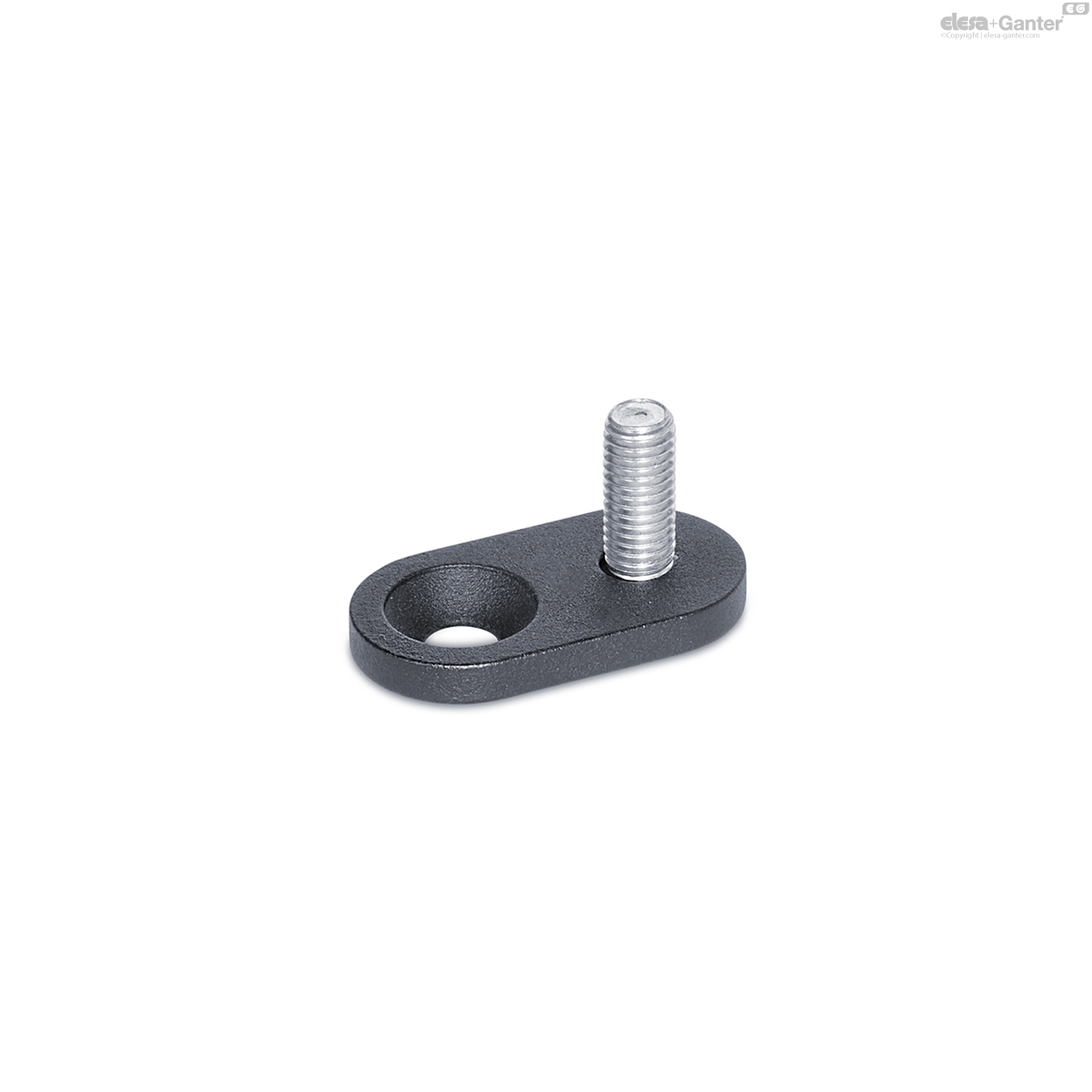

181-ZD-26-M8-SW GN 181 Bevestigingsset

181-ZD-26-M8-SW

GN 181 Bevestigingsset

voor U-kastgrepen
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 181

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 181-ZD-26-M8-SW
d1
26
d2
M 8
b
28
d3 +0.2 / +0.5
8
Länge l
52
m
24
s
6
t
12
Countersunk screw
DIN 7991
M 8 x 18
For cabinet U-handles
GN 565-26-...
93
181-ZD-26-M8-SW drawing

Fastening plates

Zinc die casting ZD

Powder coated

  • Black, RAL 9005, textured finish SW
  • Silver, RAL 9006, textured finish SR

Countersunk screws DIN 7991

Steel

Zinc plated, blue passivated

Fastening sets GN 181 make it possible to mount different cabinet U-handles and tubular handles with internal thread from the operator‘s side.

The mounting position of the fastening plates is freely customizable, allowing a sideways offset or mounting with different drillhole spacings.

A fastening set consists of two fastening plates and two countersunk screws.
