852.1-1400-TS GN 852.1 Snelspanklemmen

852.1-1400-TS

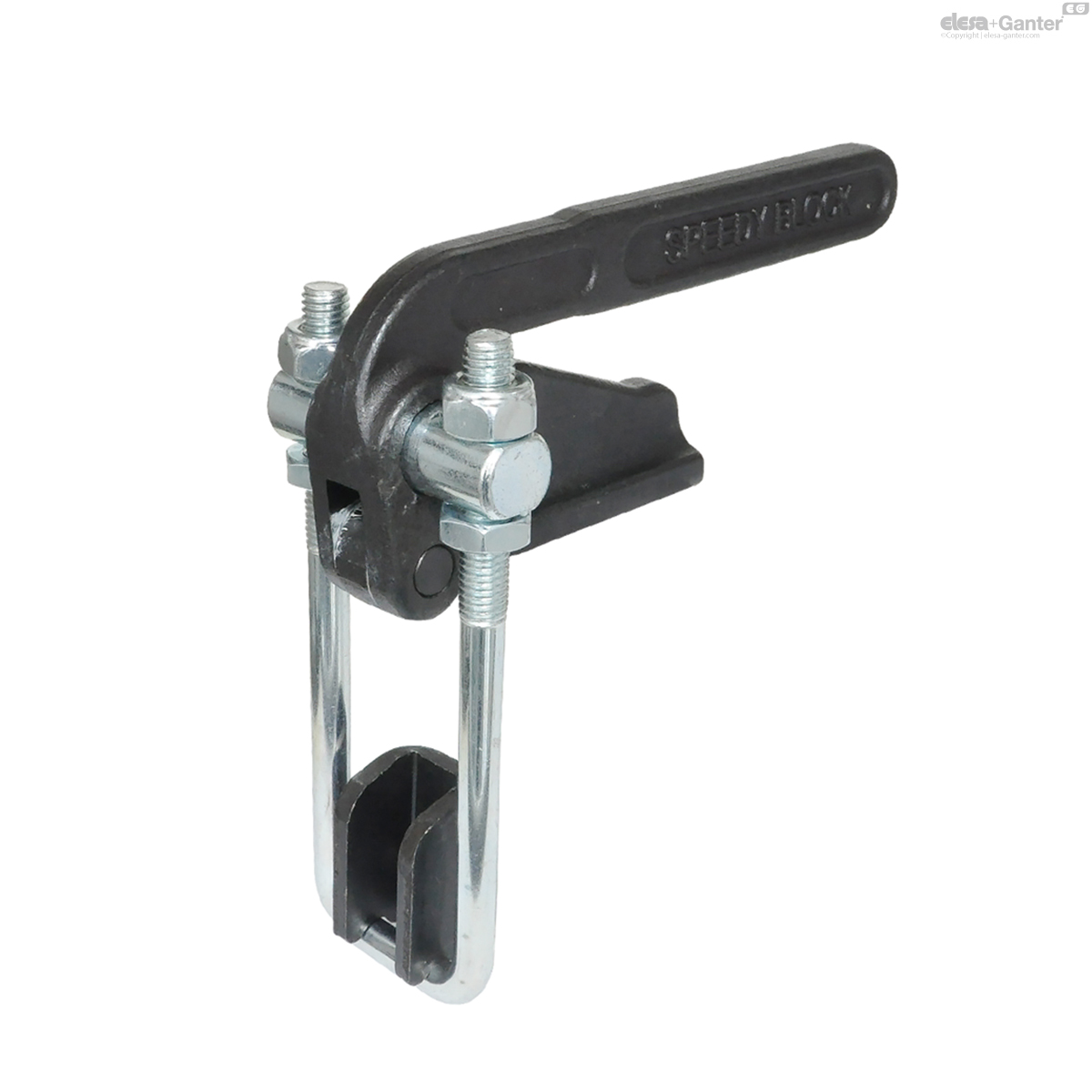

GN 852.1 Snelspanklemmen

voor zware toepassingen
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 852.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 852.1-1400-TS
Size
1400
FH in N
12000
Fh in N
12000
a1
15
a2
29
b1
61
b3
46
b4
26
b5
64
b6
42
b7
26
h1 ≈
64
h2
24
l1 ≈
171
m4
12.5
m5
17
s
8
838
852.1-1400-TS drawing

Types

  • Type T: with mounting holes, without U-bolt latch, with catch
  • Type T3: with mounting holes, with U-bolt latch, with catch
  • Type TS: for welding, without U-bolt latch, with catch
  • Type T3S: for welding, with U-bolt latch, with catch

Base / operating handle

Steel C22

  • forged
  • blackened

Catch

Sheet metal

blackened

U-bolt latch / bearing pins

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range.

Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.-
