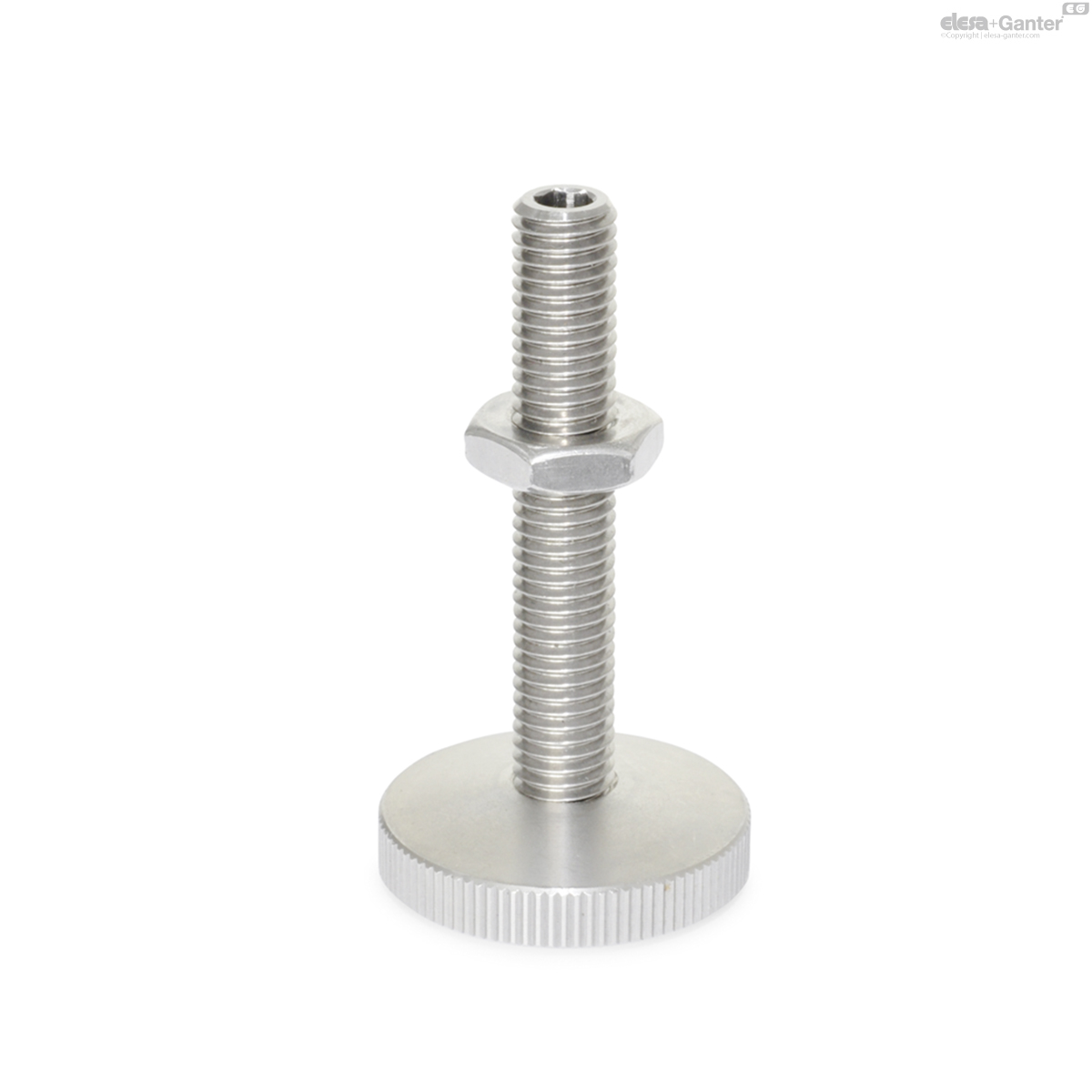

339-36-M8-65-KR-NI GN 339-NI Roestvrij staal

339-36-M8-65-KR-NI

GN 339-NI Roestvrij staal

Staal / RVS / Draadstang, niet verstelbaar
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 339

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 339-36-M8-65-KR-NI
d1
36
d2
M 8
l1
65
l2 ≈
9
l3 ≈
6
l4
0.5
A/F
4
Static load
in kN
13
65

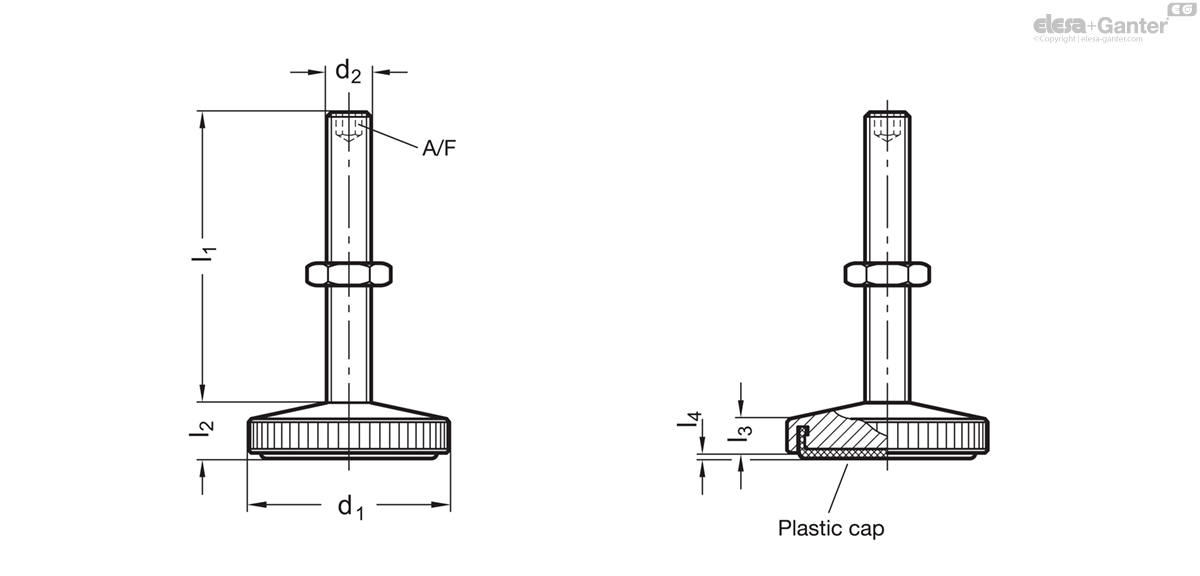

339-36-M8-65-KR-NI drawing

Types

  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding

Version in Steel ST

  • Tensile strength class 5.8
  • zinc plated, blue passivated
  • Hexagon nut ISO 4035, Steel zinc plated, blue passivated

Version in Stainless Steel NI

  • AISI 303
  • Hexagon nut ISO 4035, Stainless Steel AISI 304

Plastic caps:

Type KS

Technopolymer (Polyacetal POM)

white (natural colour) RAL 9001

Type KR

Elastomer (TPE)

73 shore A ≈, black

Levelling mount GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw.

For this reason they offer the advantage of reduced height.

The gliding and/or the non-gliding protective cap is safely fixed in the foot.
