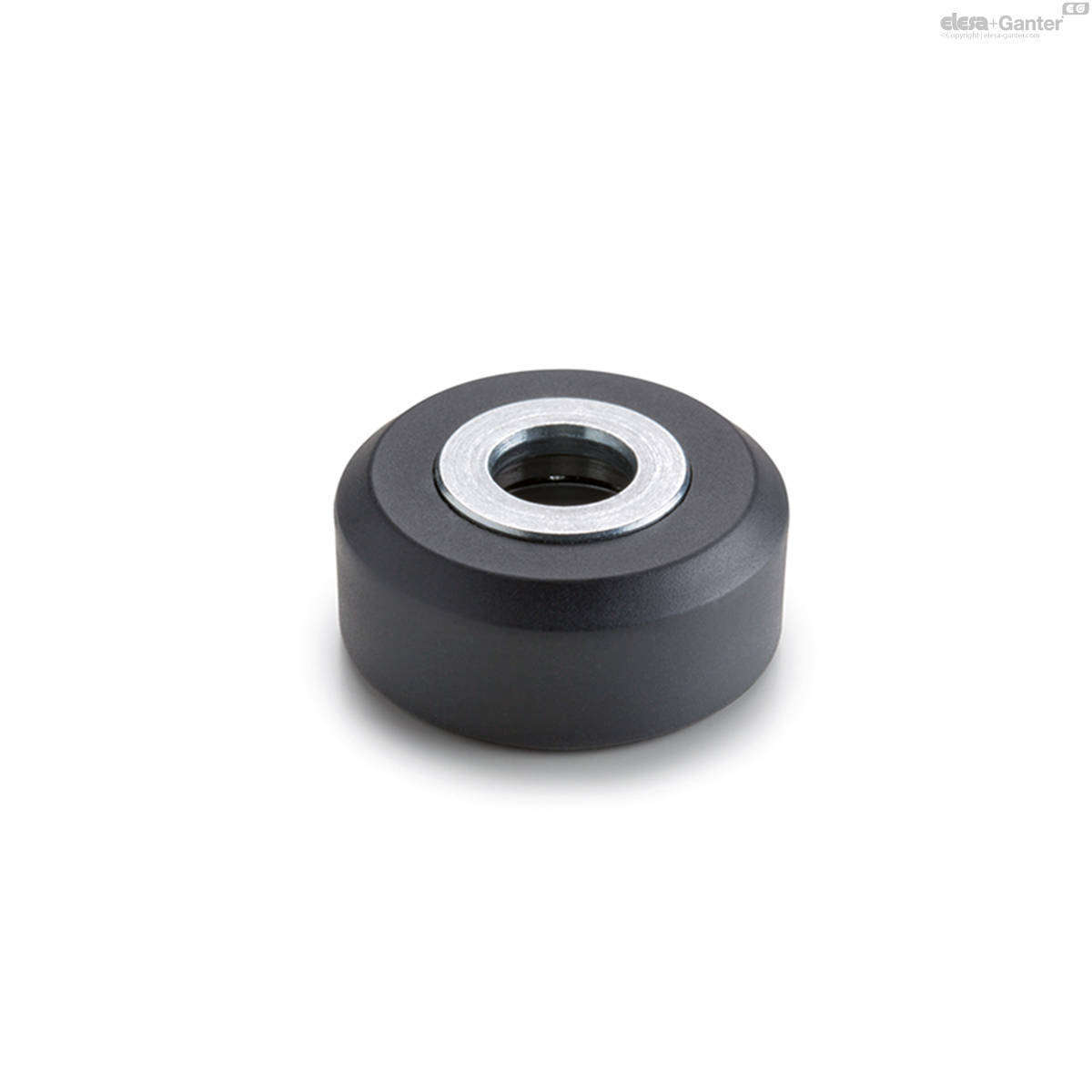

CMC.32-10 CMC Koppelversterkerkraag

CMC.32-10

CMC Koppelversterkerkraag

Technopolymeer
  • Icons/__logo__PA__.png
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g80__.png
  • Icons/__logo__ELE_OD__.png

Lt: 1-2 weken Alle maten en varianten van CMC

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
32402
D
32
h
14
d
10
37
CMC.32-10 drawing

Bearing case material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CMC: AISI 52100 steel axial bearing, zinc-plated steel washers.
  • CMC-SST:AISI 440 C stainless steel axial bearing, AISI 303 stainless steel washers.

Features and applications

Used in combination with clamping levers ERX., ERW., MRX., ERF., clamping knobs type VCT.SOFT or handles type L.652, CMC torque amplifier collars double the clamping force applied at equal torque due to the presence of a bearing acting to reduce friction.
