2280-ALS-24-K-30 GN 2280 Waterpassen

2280-ALS-24-K-30

GN 2280 Waterpassen

Behuizing Aluminium, verstelbaar
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 2280

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 2280-ALS-24-K-30
d1
24
d2
16
d3
15
d4
M 3
h1
17
h2
20
t
5
12

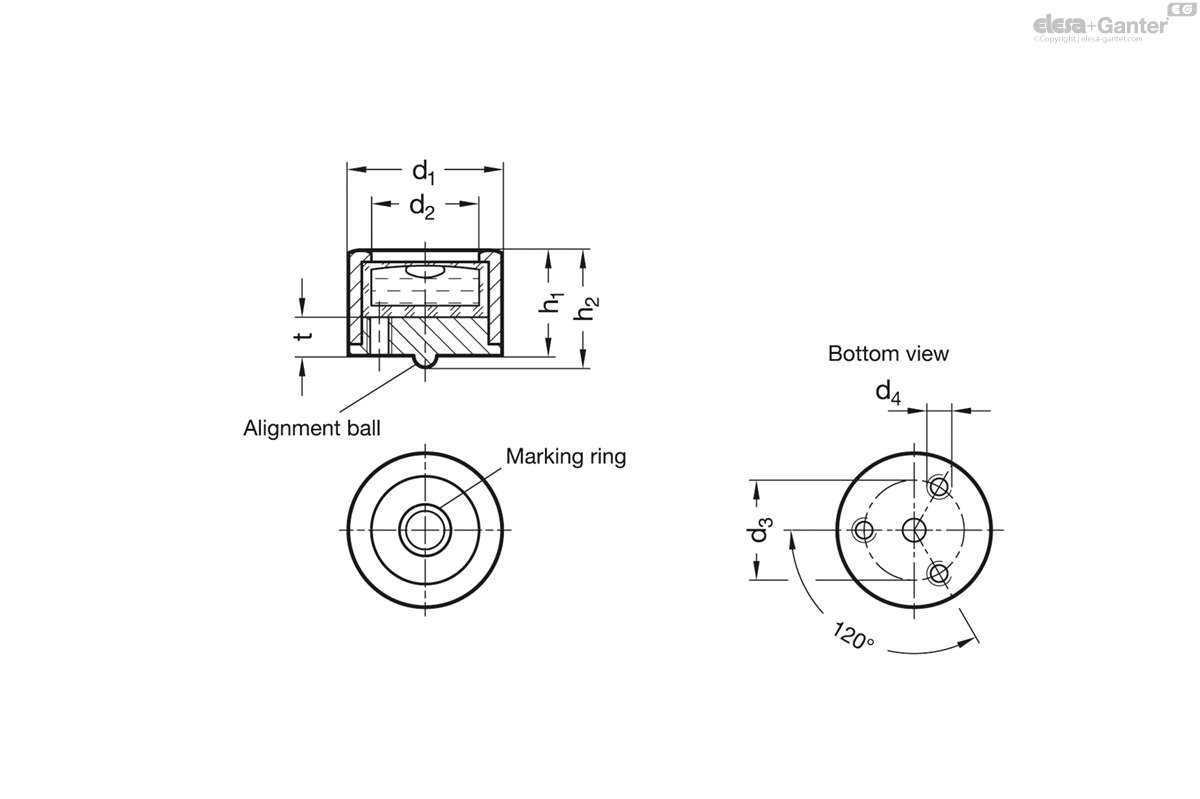

2280-ALS-24-K-30 drawing

Sensitivity

  • 30 Angle minutes, bubble move by 2 mm

Housing

Aluminum

  • Anodized, natural color ALN
  • Anodized, black ALS

Spirit level element

  • Glass plastic body
  • Filling
  • Colorless-transparent K

Casting compound

Mineral-based

Bull´s eye spirit levels GN 2280 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The mounting threads offset by 120° allow the spirit levels to be aligned in relation to the mounting surface. An alignment ball at the bottom surface of the adjustment plate serves as tilting point. Specific tightening torques of the bolts allow to be achieved, so that the bubble is located inside the marking ring once the horizontal alignment is reached.

  • Filling, green-transparent
  • Other sensitivities
  • Housing in brass or stainless steel
