2278-ALN-20-K-30 GN 2278 Waterpassen

2278-ALN-20-K-30

GN 2278 Waterpassen

Behuizing Aluminium, voor plaatsing in boorgaten
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 2278

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 2278-ALN-20-K-30
d1
20
d2
12
d3 -0.2
18
h1
10
h2
8
4

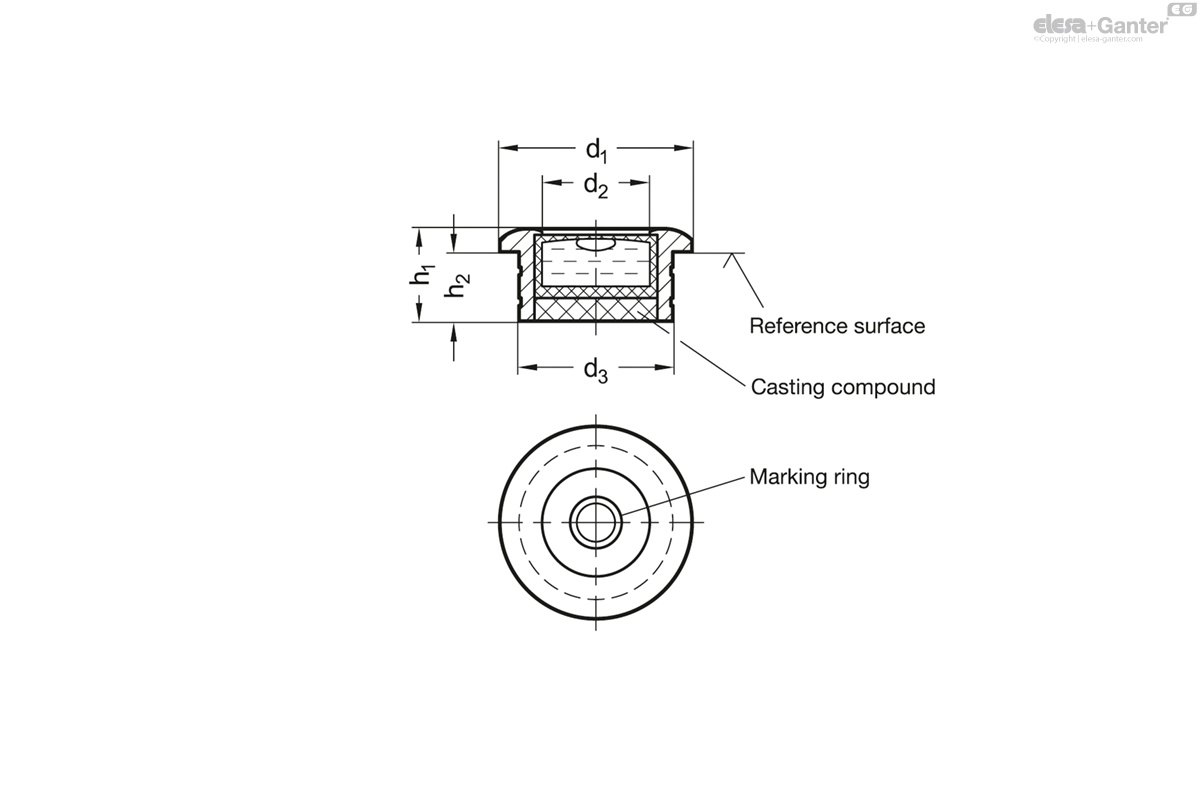

2278-ALN-20-K-30 drawing

Sensitivity

  • 30 Angle minutes, bubble move by 2 mm

Housing

Aluminum

  • Anodized, natural color ALN
  • Anodized, black ALS

Spirit level element

  • Glass plastic body
  • Filling
  • Colorless-transparent K

Casting compound

Mineral-based

Bull´s eye spirit levels GN 2278 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The housing is grooved at its lower diameter d3, making it easier to mount in place, e.g. by gluing.

The spirit levels are aligned in relation to the reference or contact surface, so that the bubble is located inside the marking ring once the horizontal position of the contact surface is reached.

  • Filling, green-transparent
  • Other sensitivities
  • Housing in brass or stainless steel
