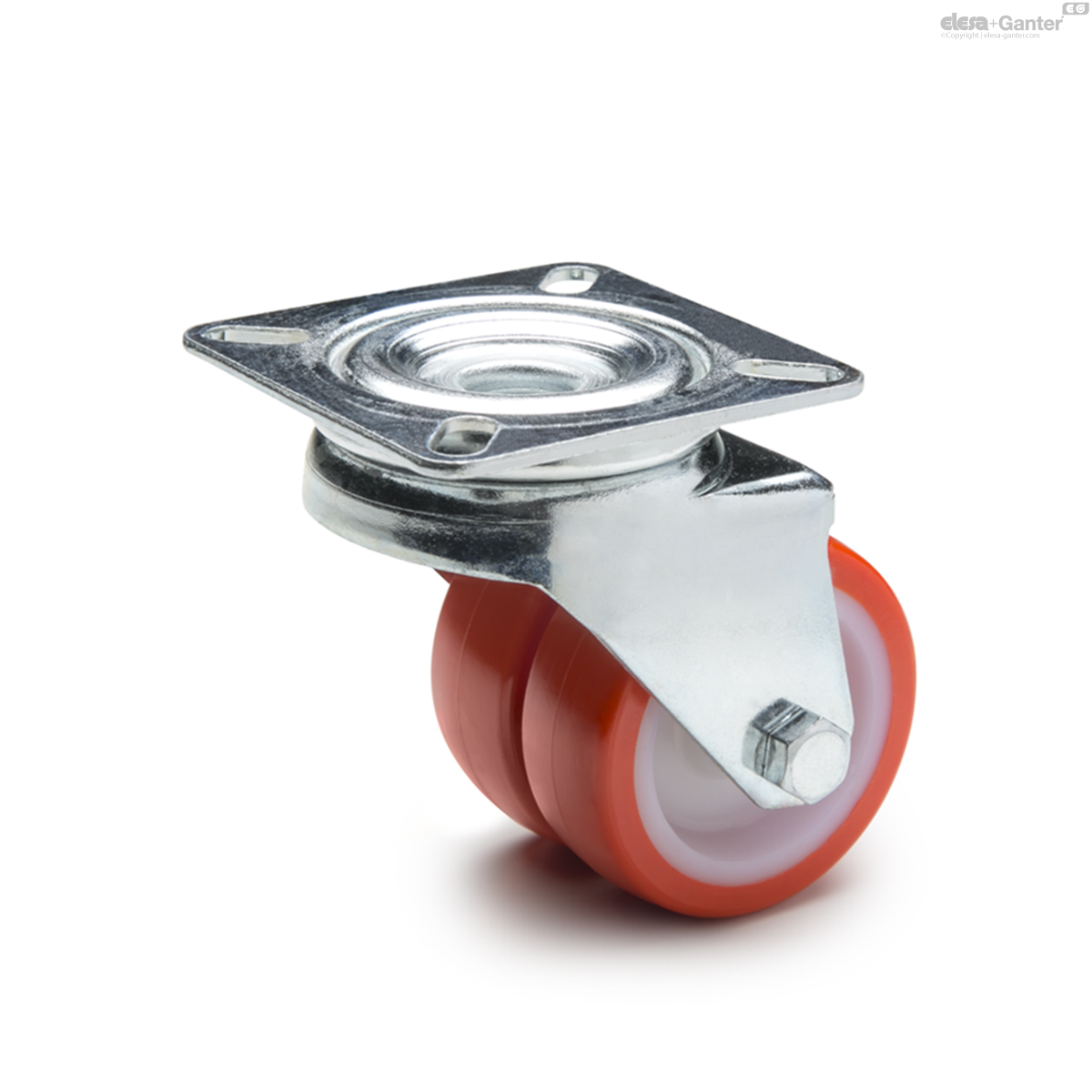

RE.C6-050-SBL-G
RE.C6-SBL-G Zwenkwiel, zonder rem
Lt: 1-2 weken Alle maten en varianten van RE.C6-G
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

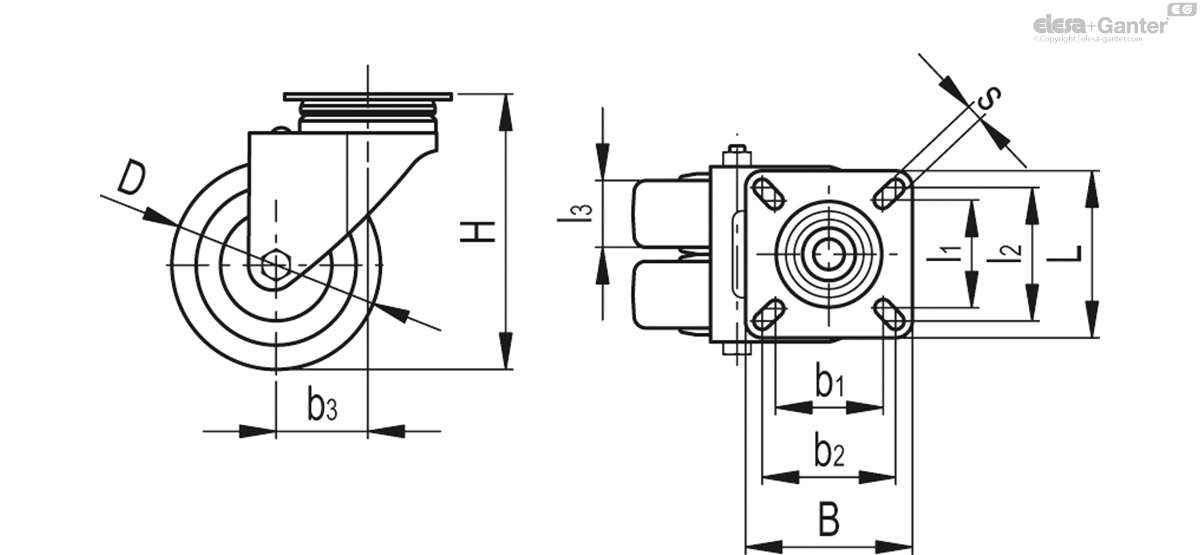

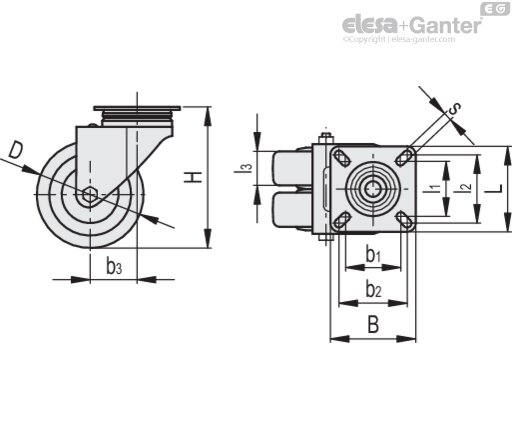

Technische gegevens
- Code
- 451929
- D
- 50
- l1
- 38.5
- l2
- 45
- l3
- 18
- H
- 71
- B
- 60
- L
- 60
- s
- 6
- b1
- 38.5
- b2
- 45
- b3
- 25.5
- Dynamic carrying capacity#
[N] - 1400
- 300
Covering
Injected polyurethan, hardness 55 Shore D.
Wheel centre body
Polyamide-based technopolymer (PA).
Rolling action
Hub with pass-through hole.
Turning plate bracket
Electrolytically zinc-plated steel sheet bracket.
The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.
Front-actuated brake
Total brake that locks rotation of the wheel and the technopolymer bracket.
The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.
Standard executions
- SBL-G: turning plate bracket, without brake.
- SBF-G: turning plate bracket, with brake.
- CBL-G: turning plate bracket and threaded centre pin, without brake.
- CBF-G: turning plate bracket and threaded centre pin, with brake.
- FBL-G: turning plate bracket and centre pass-through hole, without brake.
- FBF-G: turning plate bracket and centre pass-through hole, with brake.
Applications
Wheels for the general public with high carrying capacity, excellent smoothness and elasticity features, good wear and tearing resistance.
Environmental conditions
RE.C6 twin wheels are suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.
The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.
