484-M5-16-ELS
GN 484 Instelbare verbindingsstukken
Lt: 1-2 weken Alle maten en varianten van GN 484
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

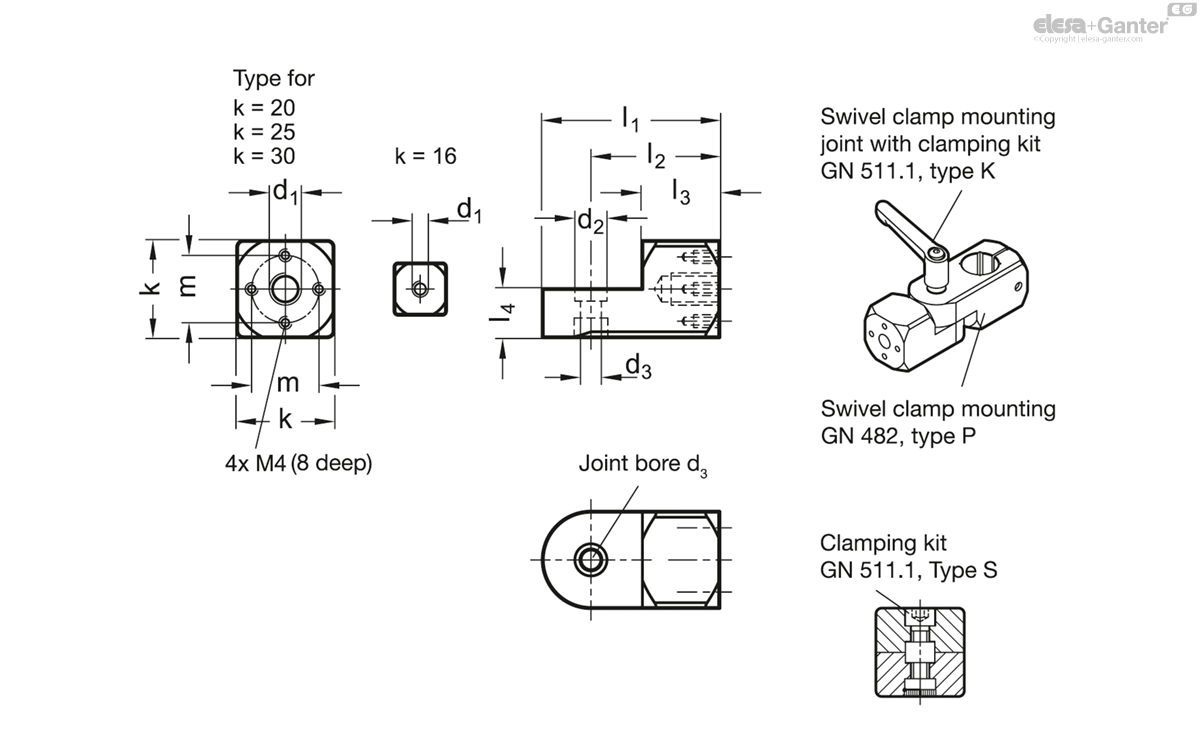

Technische gegevens
- Code
- GN 484-M5-16-ELS
- d1
- M 5
- k
- 16
- d2
- 7
- d3
- 4.5
- l1
- 30
- l2
- 22
- l3
- 13
- l4
- 8
- Clamping kit for 3 Type S
- GN 511.1-M4-16-S
- Clamping kit for 3 Type K
- GN 511.1-M4-16-K
- 13

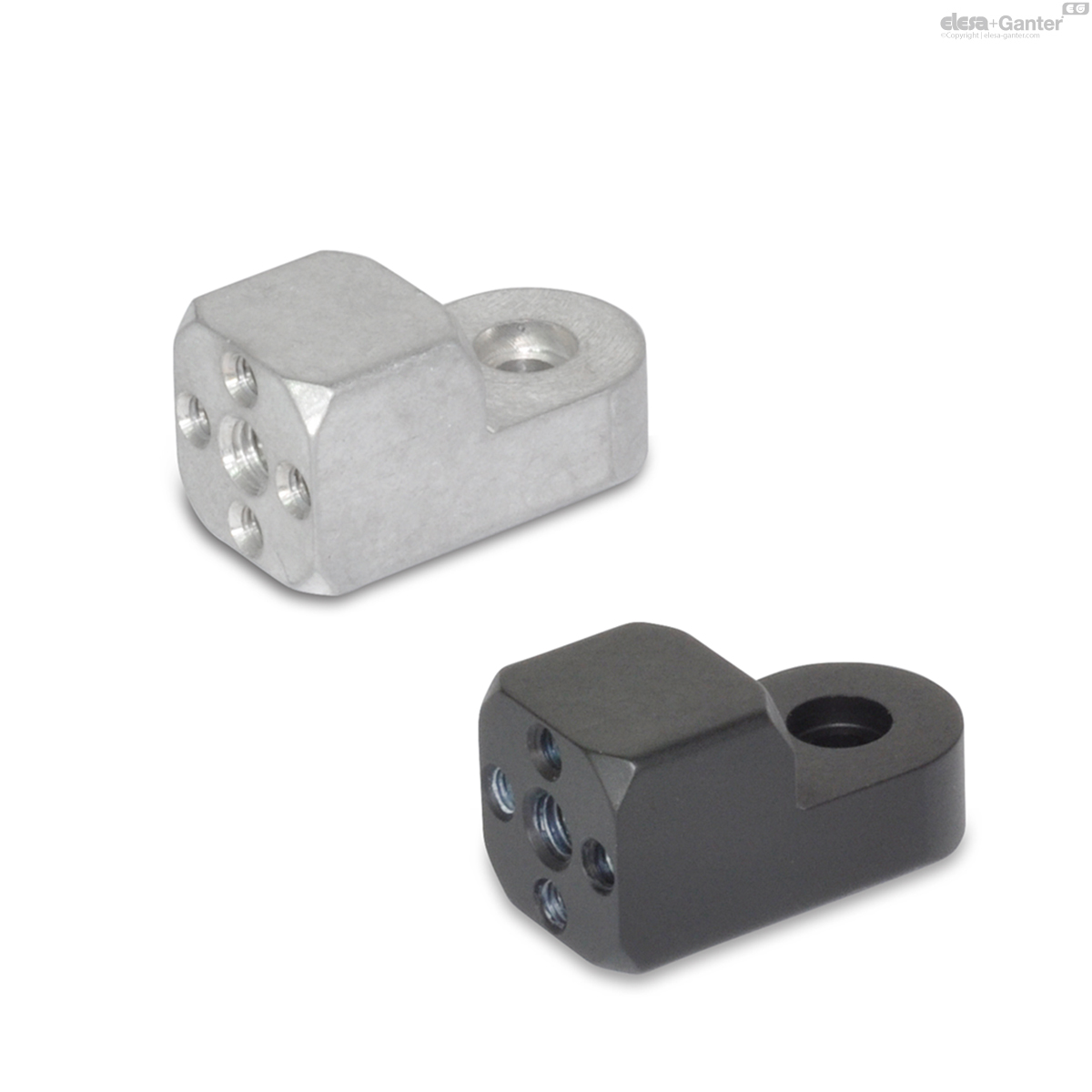

Aluminium
- matt, slide ground MT
- anodized black ELS
Attachment clamp mountings GN 484 are primarily designed for mounting sensor holders GN 479 and retaining plate GN 479.1 . They are fitted with a central thread and for the size with k = 20 and higher, an additional bore template 4 x M4.
Using swivel clamp mountings GN 482 and T-Swivel clamp mountings GN 483 with the same k dimensions, attachment clamp mountings GN 484 are easily combined into articulated swivel clamp mounting joints. Clamping kits GN 511.1 with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
