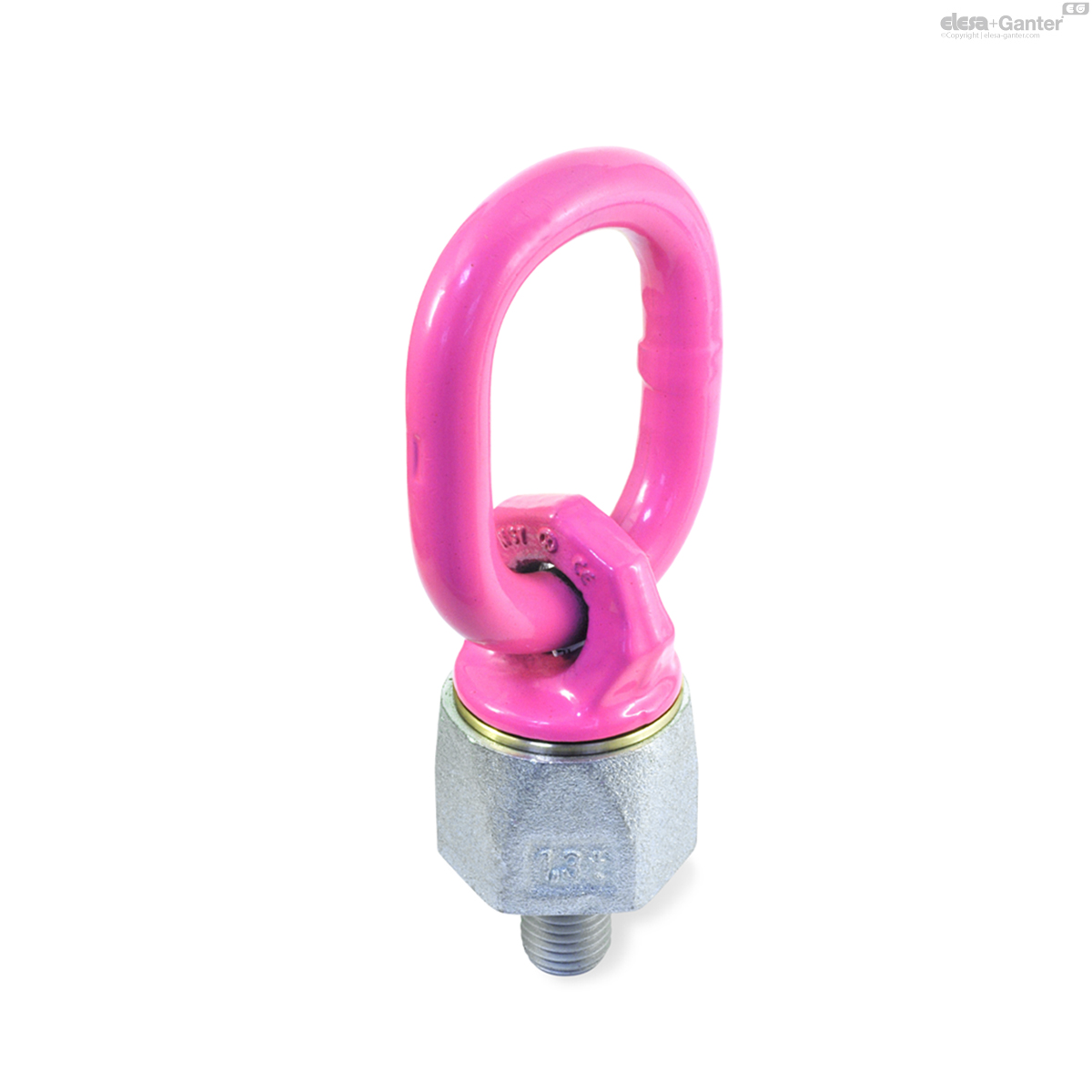

GN 5860 Hijsbeugels
Lt: 1-2 weken Alle maten en varianten van GN 5860
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

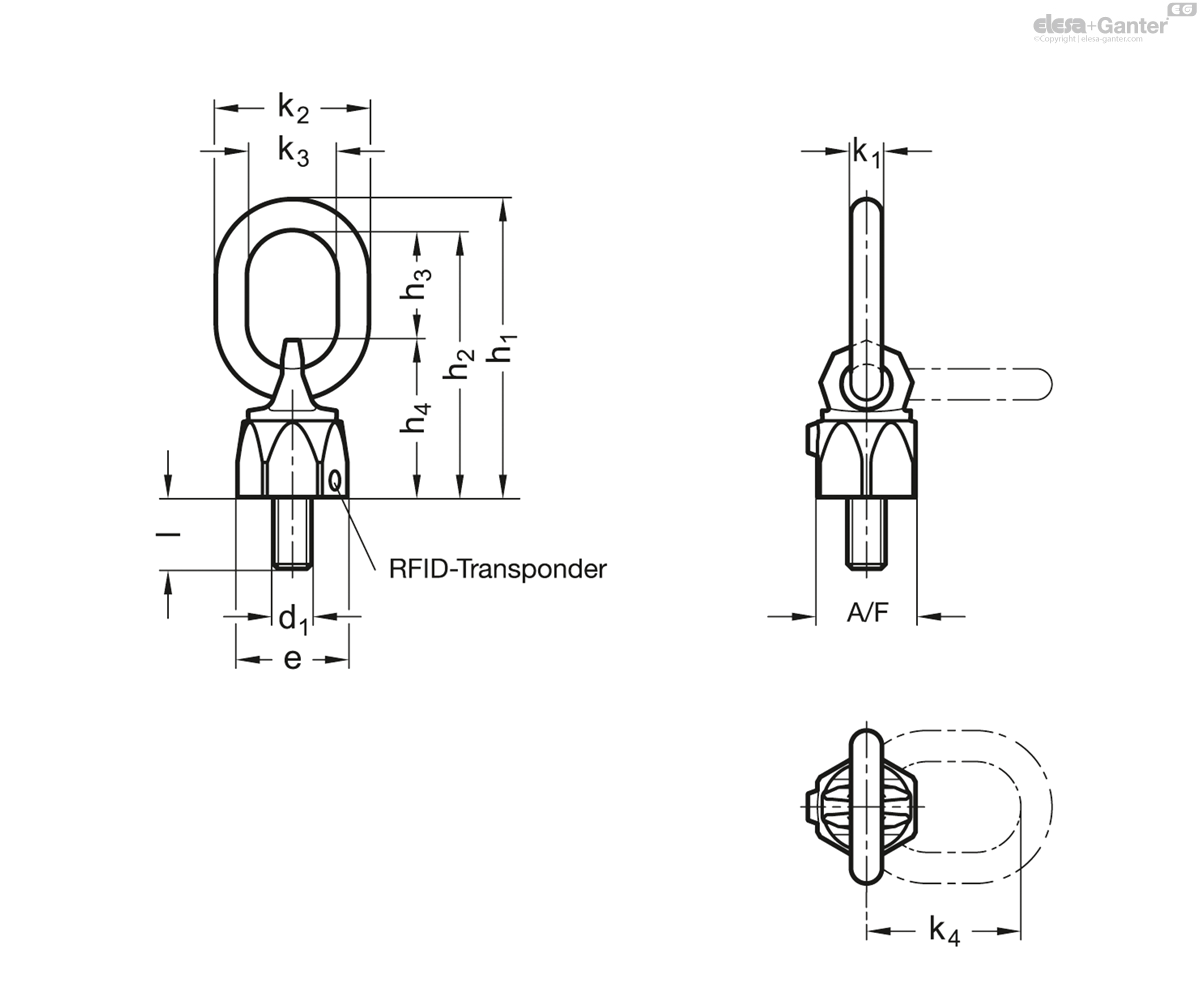

Technische fiche
Technische gegevens
- Code
- GN 5860-M12-21
- d1
- M 12
- l
- 21
- e
- 42
- h1
- 117
- h2
- 107
- h3
- 49
- h4
- 58
- k1
- 10
- k2
- 55
- k3
- 35
- k4
- 65
- A/F
- 36
- Tightening torque
in Nm - 10
- Nominal load
in t - 0.6
- 400
Chain ring
Steel, German Material No. 1.6540
- high-tensile tempered
- 100% electro magnetic tensile tested to EN 1677
- plastic coated, pink
Eye ring
Steel, German Material No. 1.6541
- forged
- high-tensile tempered
- 100 % electro magnetic tensile tested
- plastic coated, pink
Bearing case
Steel, German Material No. 1.6541
- forged
- high-tensile tempered
- 100 % electro magnetic tensile tested
- zinc plated, blue passivated
Screw
Steel
Tensile strength class 10.9 (1000 N/mm2)
Finish: Delta Tone
Load rings GN 5860 rotate running in ball bearings. The freely rotating ring allows the bolts to hold loads in any tensile direction.
The rated load-bearing capacity is shown clearly on the swivel eye bolt. It is valid for the most unfavourable case in term of the types of load listed opposite. Load rings GN 5860 comply with Mechanical Engineering Directive 2006 / 42 / EG and are BG tested.
The integrated RFID transponder clearly marks and identifies the sling and lifting gear, e.g. during the prescribed regular inspection.
| Method of mounting |  |  |  |  |  |  |  |  | ||
| Number | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 and 4 | 3 and 4 | 3 and 4 |
| Angles of inclination | 0° | 90° | 0° | 90° | 0° to 45 ° | 45° to 60° | asymm. | 0° to 45° | 45° to 60° | asymm. |
| Factor | 1 | 1 | 2 | 2 | 1.4 | 1 | 1 | 2.1 | 1.5 | 1 |
| M 8 | 0.60 t | 0.30 t | 1.20 t | 0.60 t | 0.42 t | 0.30 t | 0.30 t | 0.63 t | 0.45 t | 0.30 t |
| M 10 | 0.90 t | 0.45 t | 1.80 t | 0.90 t | 0.63 t | 0.40 t | 0.40 t | 0.94 t | 0.67 t | 0.40 t |
| M 12 | 1.20 t | 0.60 t | 2.40 t | 1.20 t | 0.84 t | 0.60 t | 0.60 t | 1.26 t | 0.90 t | 0.60 t |
| M 16 | 2.60 t | 1.30 t | 5.20 t | 2.60 t | 1.82 t | 1.30 t | 1.30 t | 2.73 t | 1.95 t | 1.30 t |
| M 20 | 4.00 t | 2.00 t | 8.00 t | 4.00 t | 2.80 t | 2.00 t | 2.00 t | 4.25 t | 3.00 t | 2.00 t |
| M 24 | 7.00 t | 3.50 t | 14.00 t | 7.00 t | 4.90 t | 3.50 t | 3.50 t | 7.35 t | 5.25 t | 3.50 t |
| M 30 | 10.00 t | 5.00 t | 20.00 t | 10.00 t | 7.00 t | 5.00 t | 5.00 t | 10.50 t | 7.50 t | 5.00 t |
The above load capacity table shows the maximum loads in metric tonnes as factor of the load ring type and at an operating temperature range of –40 °C to +100 °C, with a safety coefficient of 4 taken into account for all values.
The load ring GN 5860 may be used only if it is bolted with the minimum screw-in depth which depends on the material and if the bolt contact surface is plane and fixed at a right angle to the tap hole.
If permanently mounted in place, the swivel eye bolt must rotate freely by 360° and must not rest on edges or other fixture, e.g. crane hooks. The load rings are not suitable for permanent rotary movement under load exposure.
Operating insctructions with more details and specification are included with every delivery (see www.elesa-ganter.com).
- other screw length l
