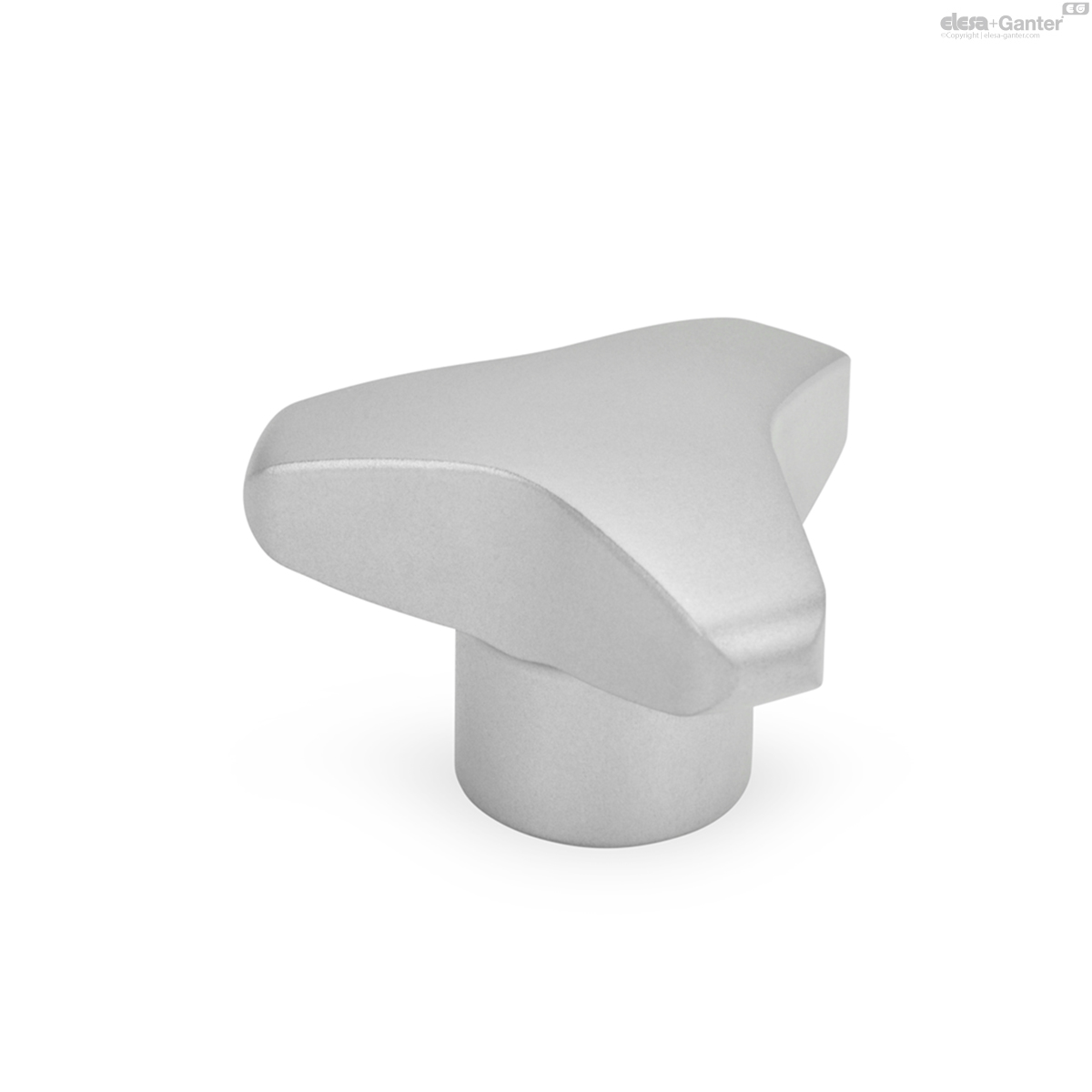

5345.4-50-M10-D GN 5345.4 Driesterknoppen

5345.4-50-M10-D

GN 5345.4 Driesterknoppen

AISI 316L
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 5345.4

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 5345.4-50-M10-D
d1
50
d2
M 10
d4
21
h1
30
h2
17
t2
16
111
5345.4-50-M10-D drawing

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 316L (A4)

matte shot-blasted

Stainless Steel-Three lobe knobs GN 5345.4 have a smooth and sealed surface. They are particulary suitable for use where hygiene requirements are high. Their shape alllows relatively high torques to be applied.

  • highly polished (PL) (only type D and E)
