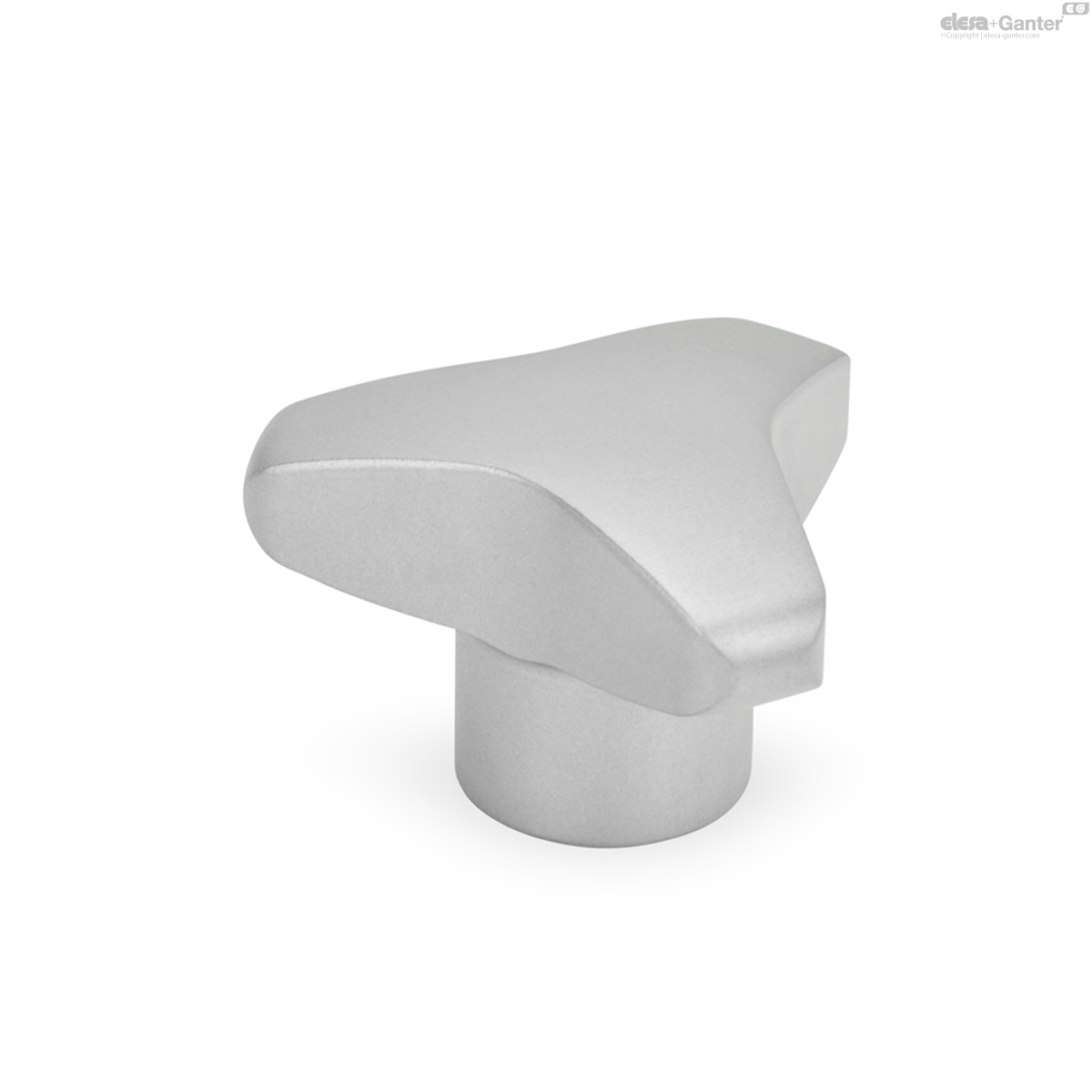

5345-60-M12-E GN 5345 Driesterknoppen

5345-60-M12-E

GN 5345 Driesterknoppen

Materiaal AISI 303 (A1)
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 5345

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 5345-60-M12-E
d1
60
d2
M 12
d4
25
h1
35
h2
18
t1 min.
22
195
5345-60-M12-E drawing

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 303 (A1)

matte shot-blasted

Stainless Steel-Three lobe knobs GN 5345 have a smooth and sealed surface. They are particularly suitable for use where hygiene requirements are high. Their shape allows relatively high torques to be applied.

  • highly polished (PL) (only type D and E)
