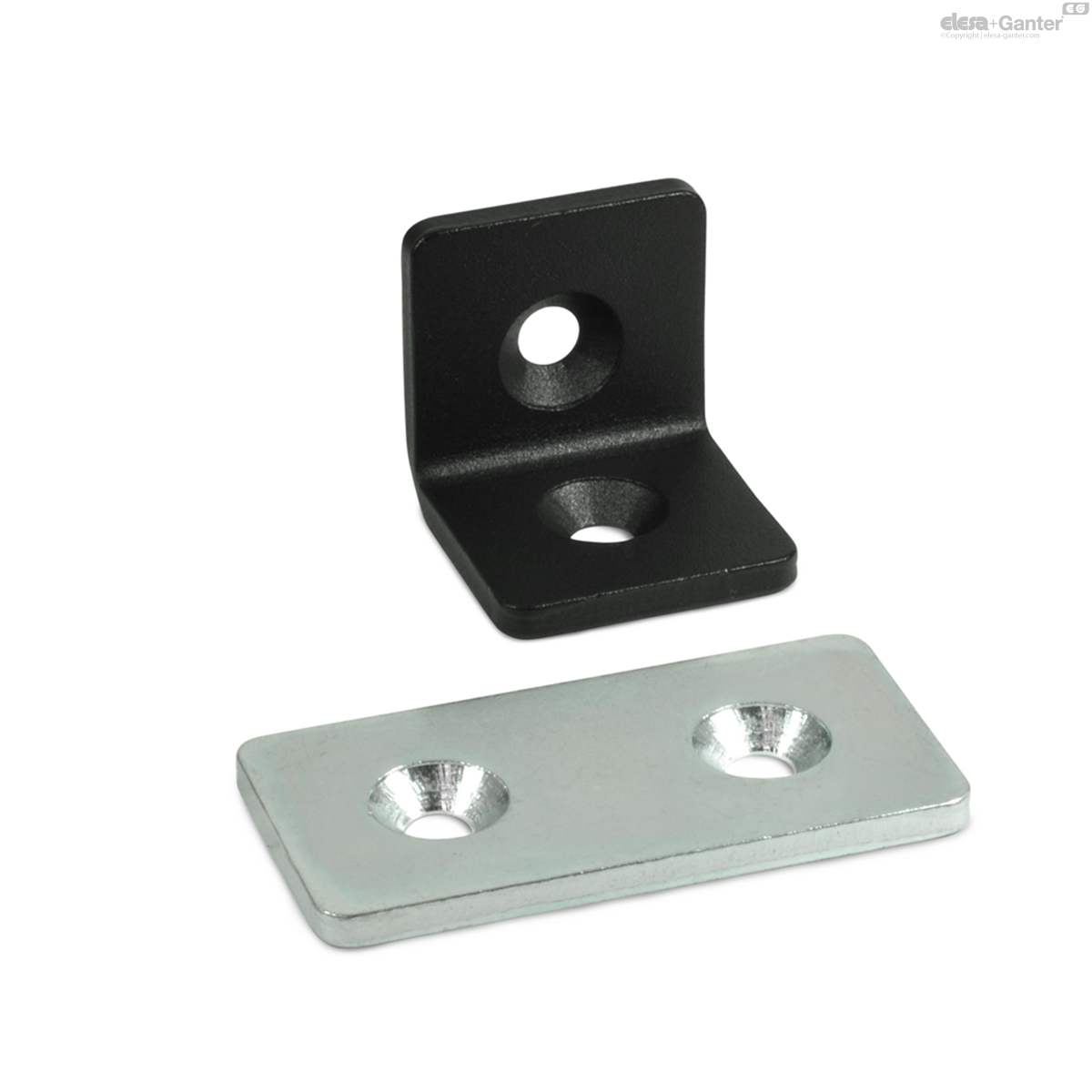

967-30-30-L-2-ZB GN 967 Hoekstukken/schakels

967-30-30-L-2-ZB

GN 967 Hoekstukken/schakels

voor profielsystemen
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 967

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 967-30-30-L-2-ZB
b
30
l2
30
l3
15
m
30
d
6.3
s
4
48
967-30-30-L-2-ZB drawing

Types

  • Type F: Shackle
  • Type L: Angle

Identification no.

  • No. 1 with bore for countersunk screws DIN 7991
  • No. 2 with bore without countersunk

Sheet metal

zinc plated, blue passivated ZB

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Angle pieces and shackles GN 967 are preferably used in connection with profile section systems. Square connections or connections with same contact area can so be realised in the smallest of spaces and with a high degree of stability.

Over and above the profile system configurations, the angle pieces and shackles can also be used for a wide variety of different fixing and retaining tasks, for instance in the design of jigs and fixtures.

In the version with identification no. 2 the drill holes are designed without countersunk hole to allow fixing with cylinder head screws, nuts or rivets.
