584-13-B GN 584 Shackles

584-13-B

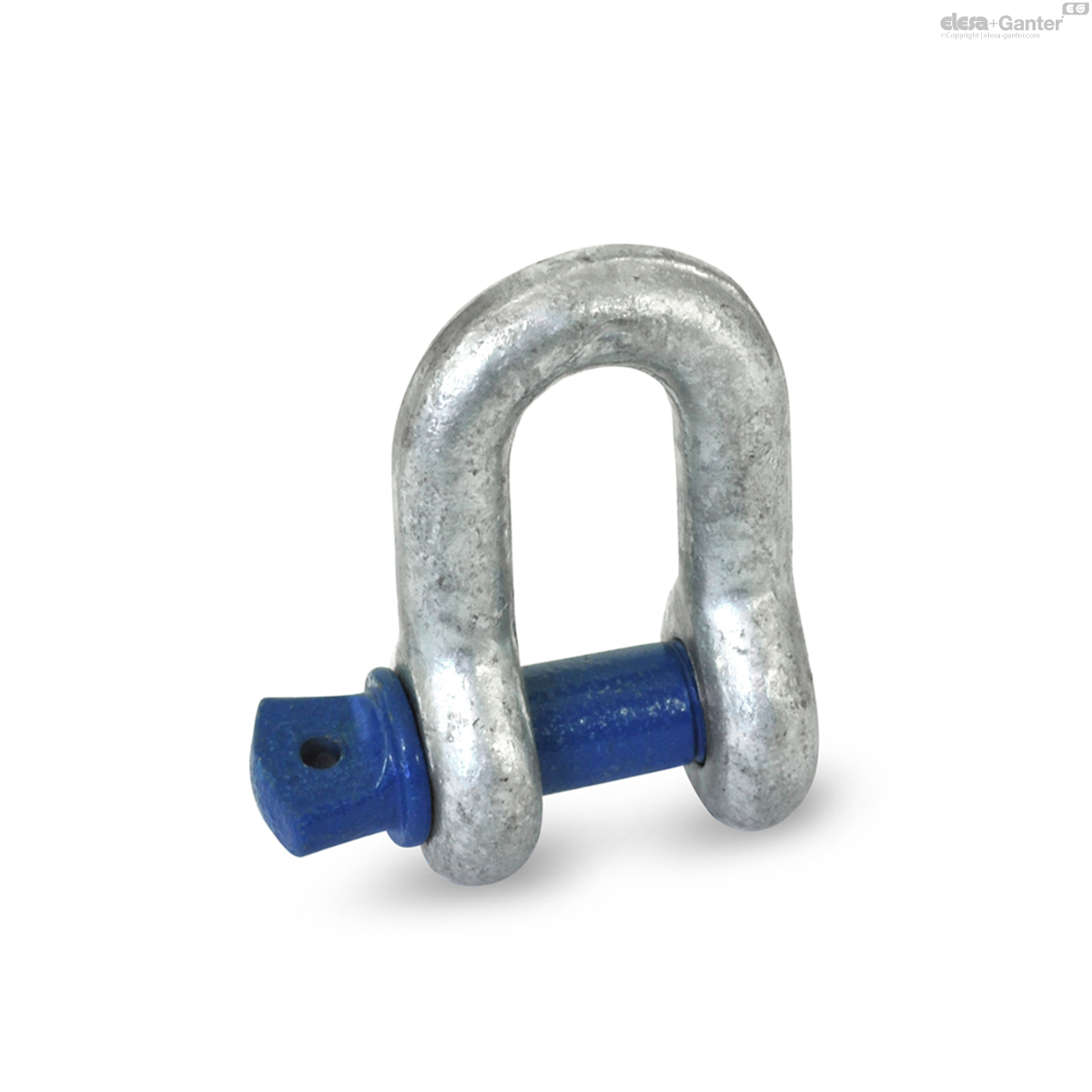

GN 584 Shackles

rechte uitvoering
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 584

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 584-13-B
d1
Nominal size
13
d1 In inch
1/2
b ±1
21
d2 ±0.5
16
d3** UNC-thread
5/8
d4
30
h
41
Nominal load
(WLL)
2.0 t [20 kN]
320
584-13-B drawing
** in general, the bolts ands screws are threaded as specified. Variances are possible, however.

Types

  • Type A: with stud bolt
  • Type B: Bolt with nut and split pin

Ring bracket

  • Heat-treated steel, die-forged
  • hot-dip galvanised

Bolt

  • Heat-treated steel, die-forged
  • galvanic zinc plated, lacquered

High-strength, straight shackles GN 584 are made in analogy with the US Federal Specification RR-C-271 and feature sixfold safety standards, which means that the minimum failure load is at least six times greater than the value of the nominal load (WLL).

The rated size and the nominal load (WLL) are drop-forged into the shackle which makes it easier to select the proper sling gear. In general, the nominal load must not be exceeded.

The designs with nut and split pin (Type B) are normally recommended for permanent connections. The bolts are allowed to rotate, and the nuts are secured against inadvertent loosening with a split pin.

Operating instructions with more details and specifications are included with every delivery.
