883-G3/8-20-A-MS GN 883 Ontluchtingsventielen

883-G3/8-20-A-MS

GN 883 Ontluchtingsventielen

Messing
  • Icons/__logo__g20030__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 883

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 883-G3/8-20-A-MS
d1
G 3/8
Opening pressure
in mbar
min.
20
Opening pressure
in mbar
max.
80
d2
23
e1
25
l1
9
l2
11
A/F
22
Ca. air passage
l/min.
12
38

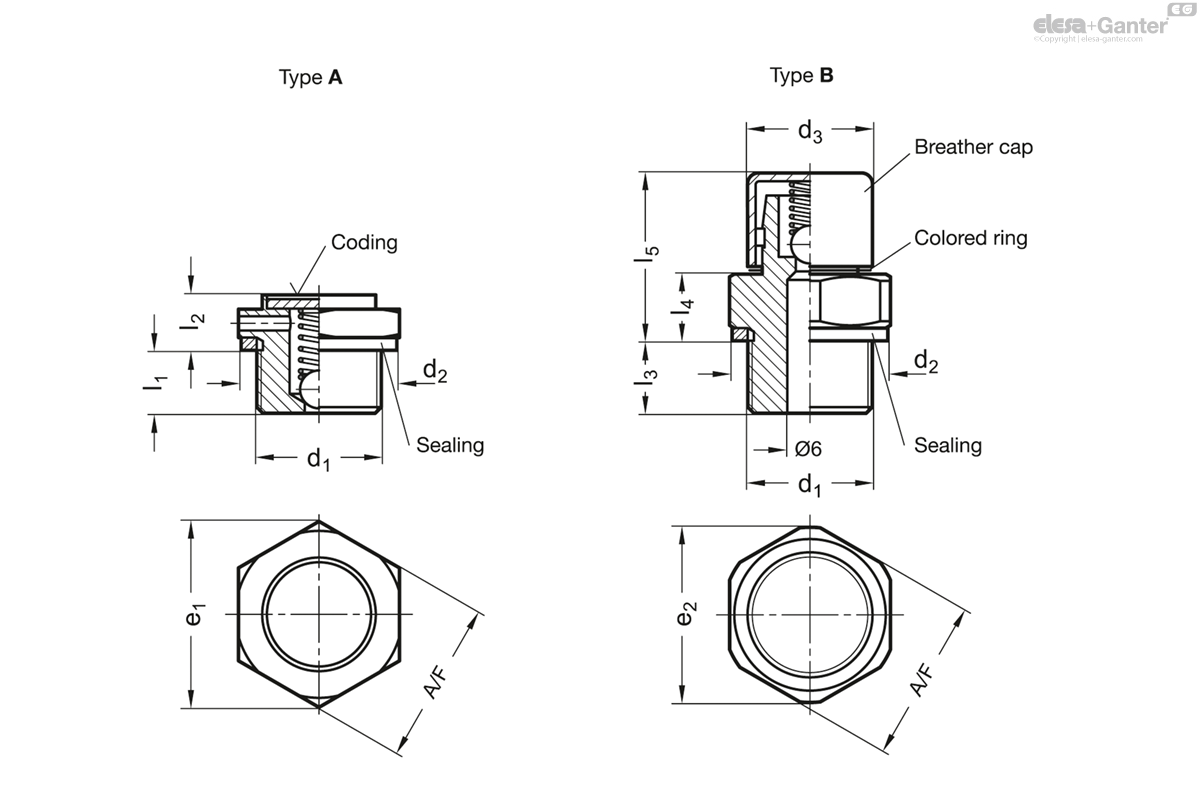

883-G3/8-20-A-MS drawing

Types

  • Type A: Low design
  • Type B: High design, with stainless steel cap

Valve body

Brass MS

Ball

Steel AISI 5210

Spring

Stainless Steel AISI 301

Seal DIN 7603 A

Soft iron 1.0338

(for d1 = M10 x 1:PA6)

Breather cap (Type B)

Stainless steel AISI 304

Temperature resistant from -30 °C to +200 °C

Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive inside container pressure. They also feature highly compact dimensions.

A coding (Type A) or a color ring (Type B) in yellow (20 - 80 mbar) or green (160 - 240 mbar) indicates the different opening pressure ratings.

The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve acting to one side. The installation position is vertical to the top.
