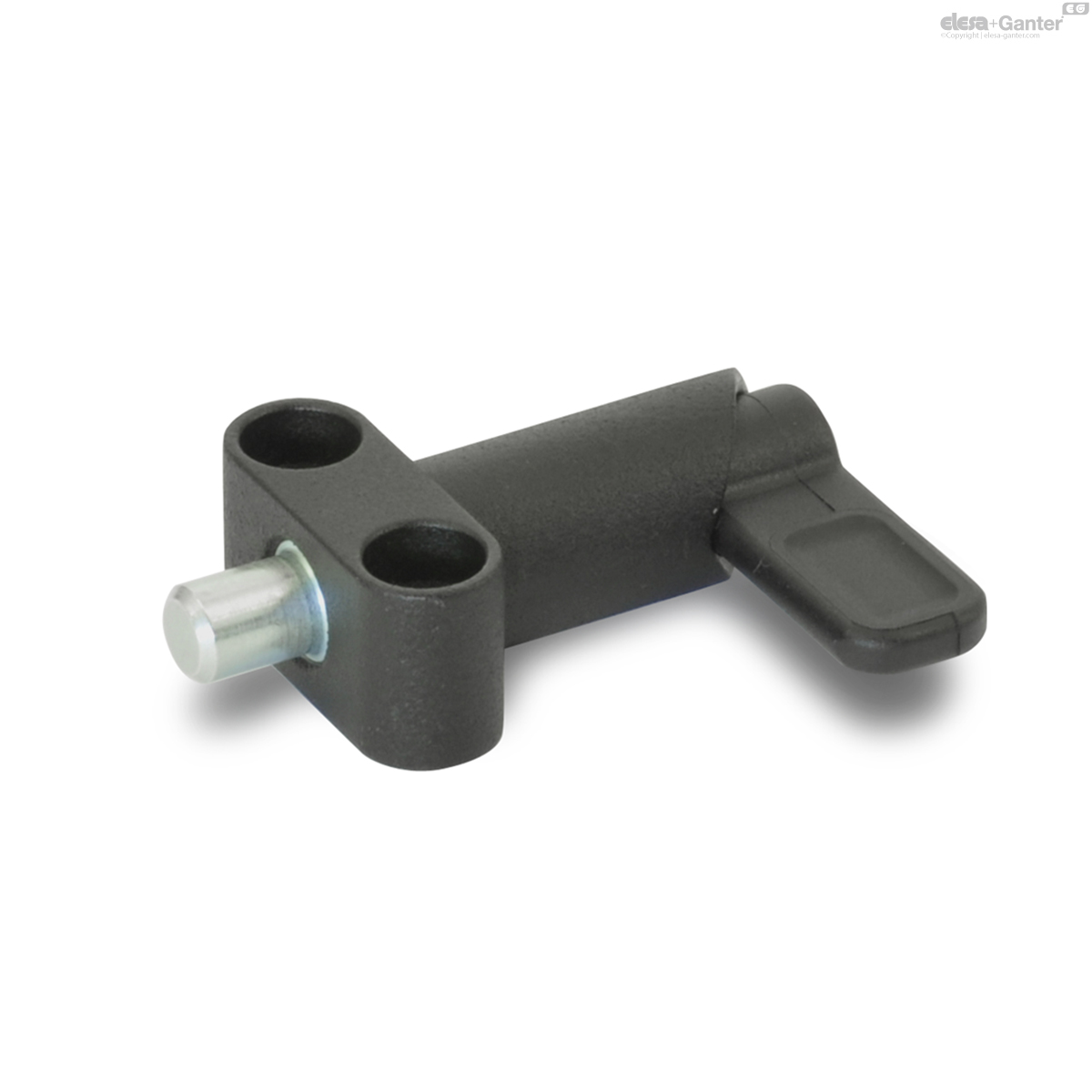

612.9-8-12-20-SW GN 612.9 Indexeerbouten

612.9-8-12-20-SW

GN 612.9 Indexeerbouten

met flens / geleider van gegoten zinklegering
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 612.9

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 612.9-8-12-20-SW
d1 Pin-0.05

Bore
+0.1/+0.05
8
l2
12
d2
20
h1
20
h2
14.5
k
22
l1 ≈
57
l3
12
l4
37
l5
37
s
15
Spring load
in N ≈
initial
21
Spring load
in N ≈
end
58
120
612.9-8-12-20-SW drawing

Guide

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

Plunger pin

Steel

zinc plated, blue passivated

Lever

Plastic (Polyamide PA)

  • black, matt
  • not removable

Cam action indexing plungers GN 612.9 are used in cases where the plunger must not protrude all the time. By rotating the lever through 180° the plunger withdraws itself. The groove allows safe positioning.
