350.5-80-33-105-ST
GN 350.5 Nivelleersets
Lt: 1-2 weken Alle maten en varianten van GN 350.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 350.5-80-33-105-ST
- d p6/h6
- 80
- d1
- 80
- d2
- 33
- h1
- 105
- d3
- M 60 x 2
- h2
- 144
- h3
- 39
- For screw
- M 30
- r
- M 30
- Static load F
in kN F1 - 495
- Static load F
in kN F2 - 218
- Code no. for
C-Spanner - DIN 1810-A80-90
- 1911
Version in Steel
Steel, 1.7225 (42 CrMo 4V) ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 303
(X 10 CrNiS 18-9) NI
F1: max. total load
F2: max. load after deduction of the max. preload
- for screws 8.8 µ = 0.125 (Steel version)
- for screws 6.8 µ = 0.14 (Stainless Steel version)

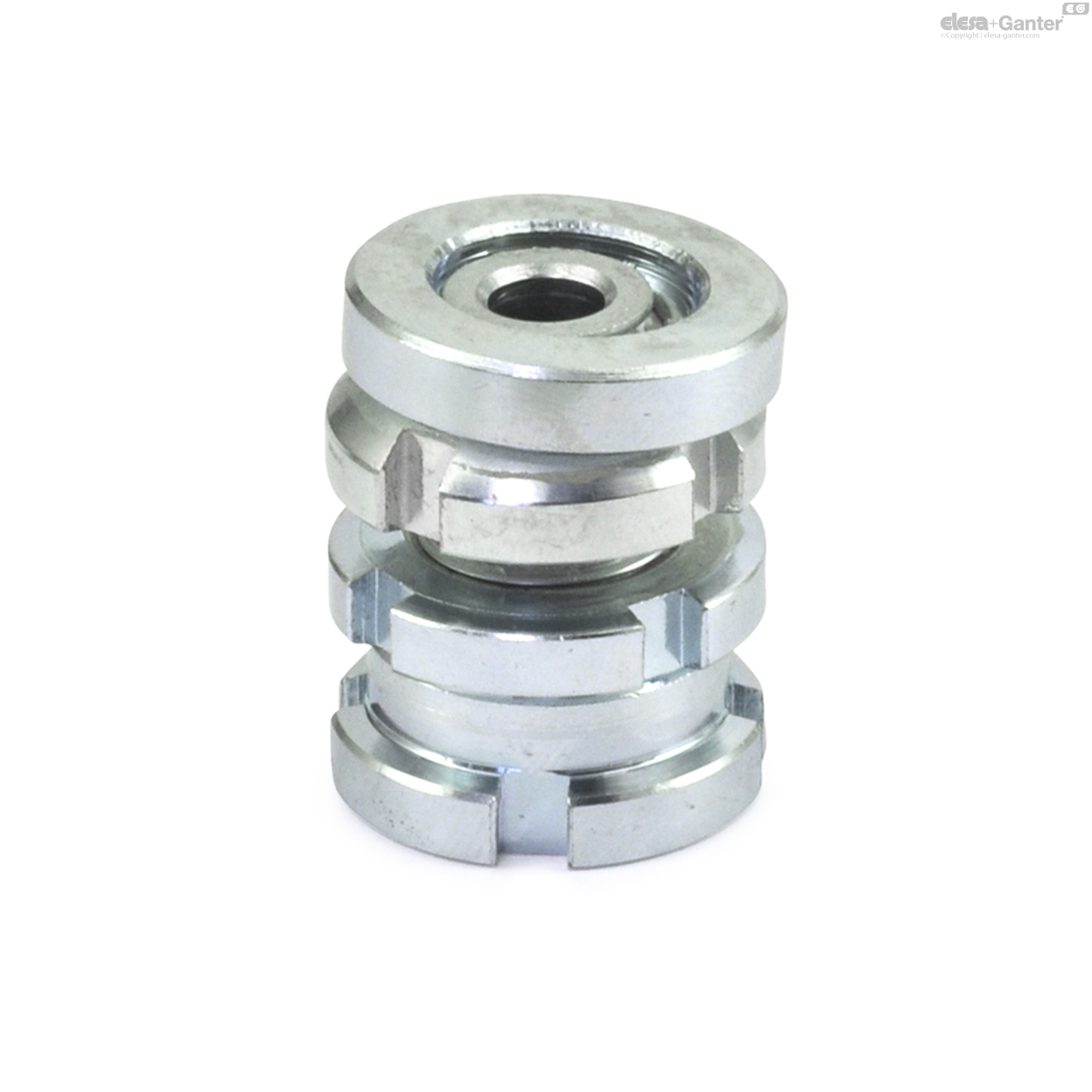

Levelling sets GN 350.5 are used for levelling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.
They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.
- C-Spanner DIN 1810 (code no. see table)
