251.6-M10-20-ND
GN 251.6 Aanslagbouten
Lt: 1-2 weken Alle maten en varianten van GN 251.6
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

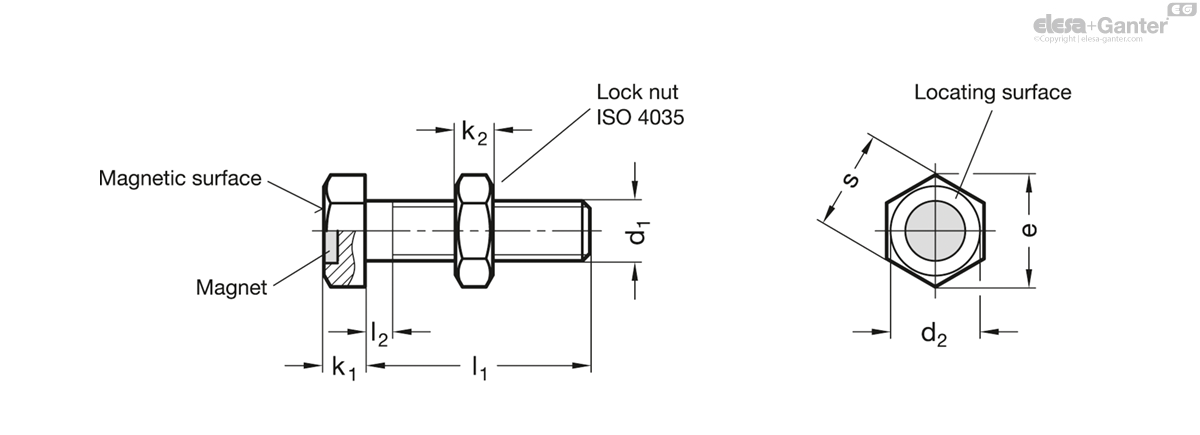

Technische gegevens
- Code
- GN 251.6-M10-20-ND
- d1*
- M 10
- l1
- 20
- d2
- 17
- e ≈
- 17.8
- k1
- 6.4 -0.5
- k2
- 5
- l2 max.
- 4.5
- s
- 17
- Nominal load in N
- 75
- 24
Hex head screw
Steel
- Property class 5.8
- Zinc plated, blue passivated
Hex nut
Steel
- Property class 04
- Zinc plated, blue passivated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Setting bolts GN 251.6 with retaining magnets combine a magnet with a steel housing in the shape of a hex head screw to create a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
The setting bolts with retaining magnet can be used as workpiece stops that also hold the workpiece in position with the integrated magnet.
The locking nut (included) can be used to secure the stop screw after positioning.
