NDL.Q-35x1.5-2-M12 NDL.Q Einddoppen voor vierkante buizen

NDL.Q-35x1.5-2-M12

NDL.Q Einddoppen voor vierkante buizen

Technopolymeer
  • Icons/__logo__PA__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van NDL.Q

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
430587
B
35
d
M12
h
34
External tube diameter
35
Internal tube diameter min-max
32-31
Thickness min-max
1.5-2
Max. static load*
[N]
3000
36

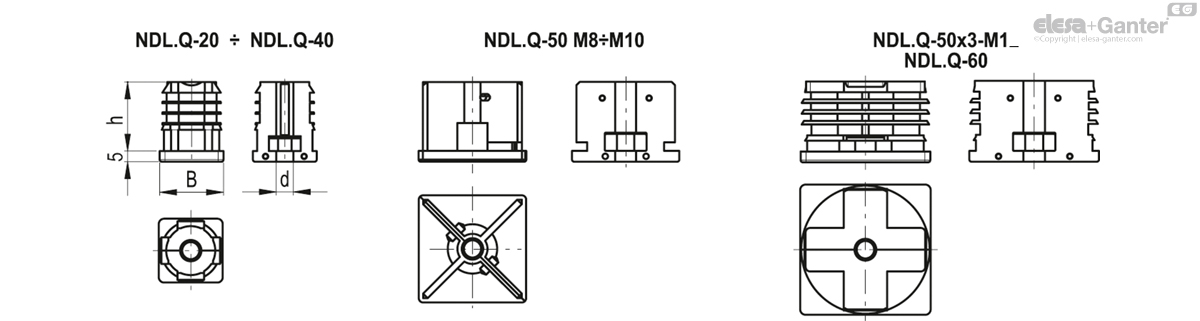

NDL.Q-35x1.5-2-M12 drawing
* The max limit static load is the value above which the load applied to the element may cause some plastic material breakage, under particular conditions of use. Obviously, a factor that takes into consideration the importance and the safet

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

DIN 934 zinc-plated steel nut (included in the supply).

Features and applications

The two end-cap parts are connected together by means of two pins which are housed in special counter-seats. A cavity inside the end-cap is provided for housing an hexagonal nut DIN 934.

The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.

Special executions on request

End-cap without nut.
