LSQ.A-50-8,5-SST-M10x73 LSQ.A-SST Zonder antislipschijf

LSQ.A-50-8,5-SST-M10x73

LSQ.A-SST Zonder antislipschijf

Voetplaat van technopolymeer , roestvrijstalen draadstift
  • Icons/__logo__PA__.png
  • Icons/__logo__INOX__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__NBR__.png
  • Icons/__logo__ELE_OD__.png

Op voorraad Alle maten en varianten van LSQ.A-SST

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
360303
Omschrijving
LSQ.A-50-8.5-SST-M10x73
D
50
d
M10
L
100
l
73
l1
27
l2
25.5
h
19
s
7
Articulation
Ø
8.5
Max. limit static load*
[N]
7000
62

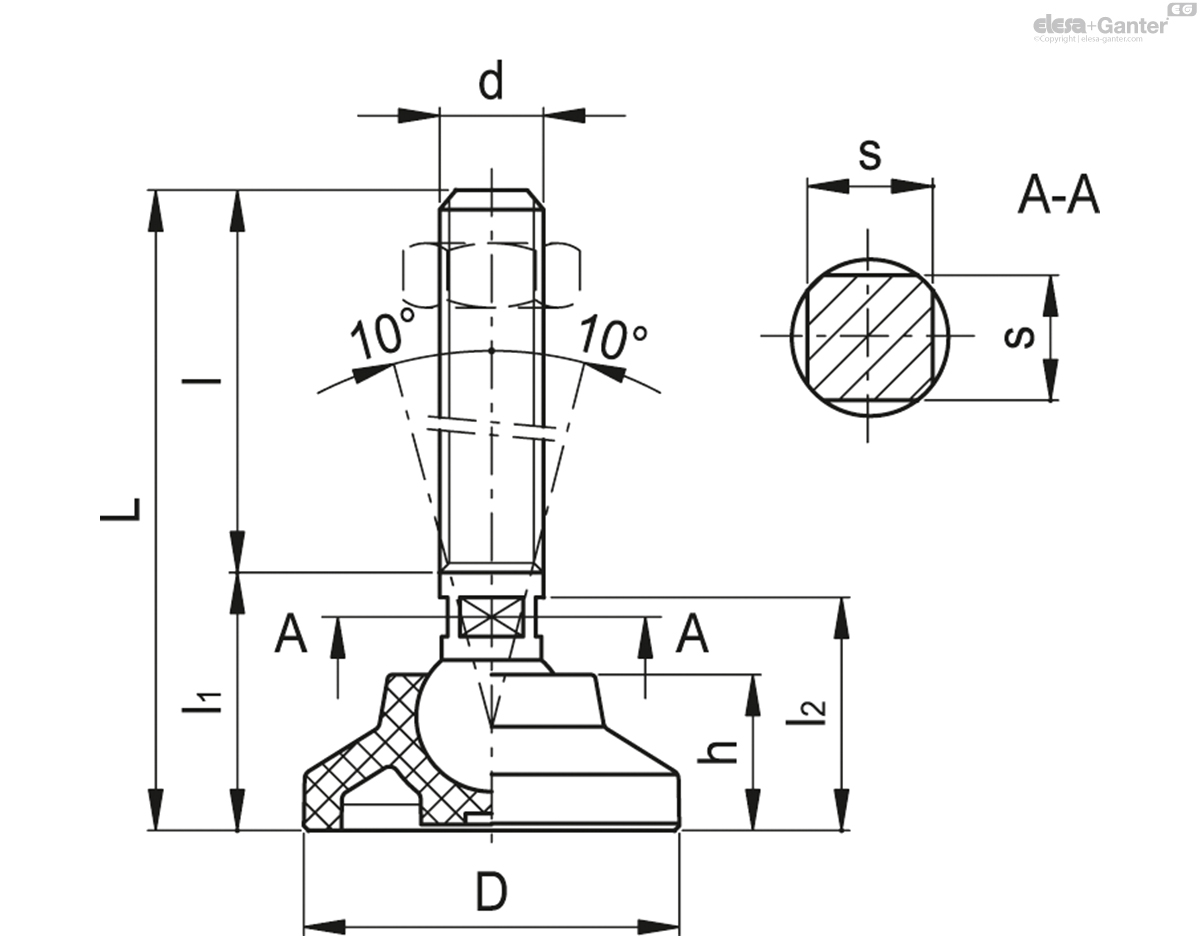

LSQ.A-50-8,5-SST-M10x73 drawing
* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level of the specifi

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with adjusting square.

Standard executions

  • LSQ.A-SST: without no-slip disk.
  • LSQ.A-AS-SST: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Features

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk ).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

Accessories on request

AISI 304 stainless steel nut (see Nuts NT. ).
