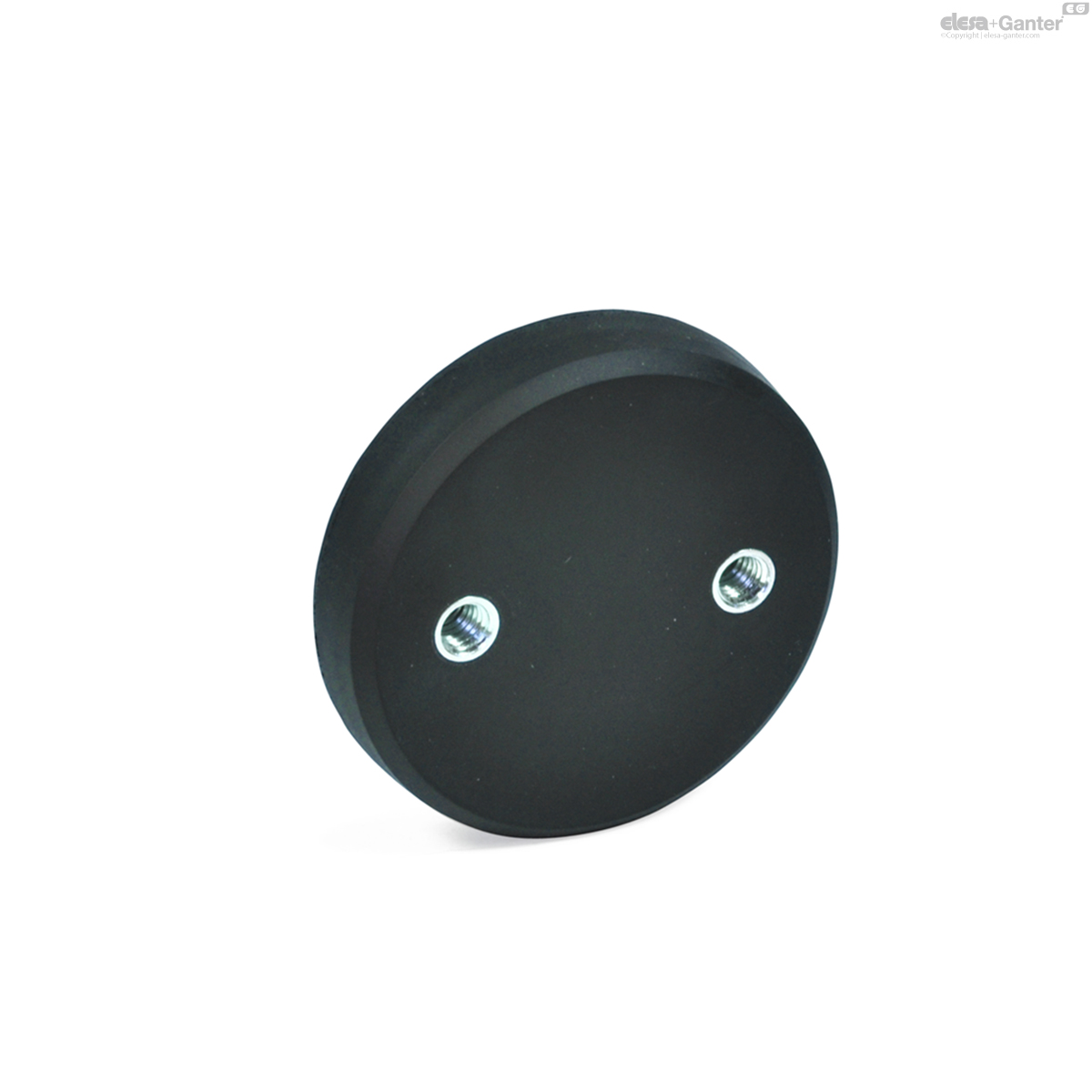

51.6-ND-57-36-M6
GN 51.6 Magneten
Schijfvormig,met 2 draadbussen, met rubberen omhulsel
Lt: 1-2 weken Alle maten en varianten van GN 51.6
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

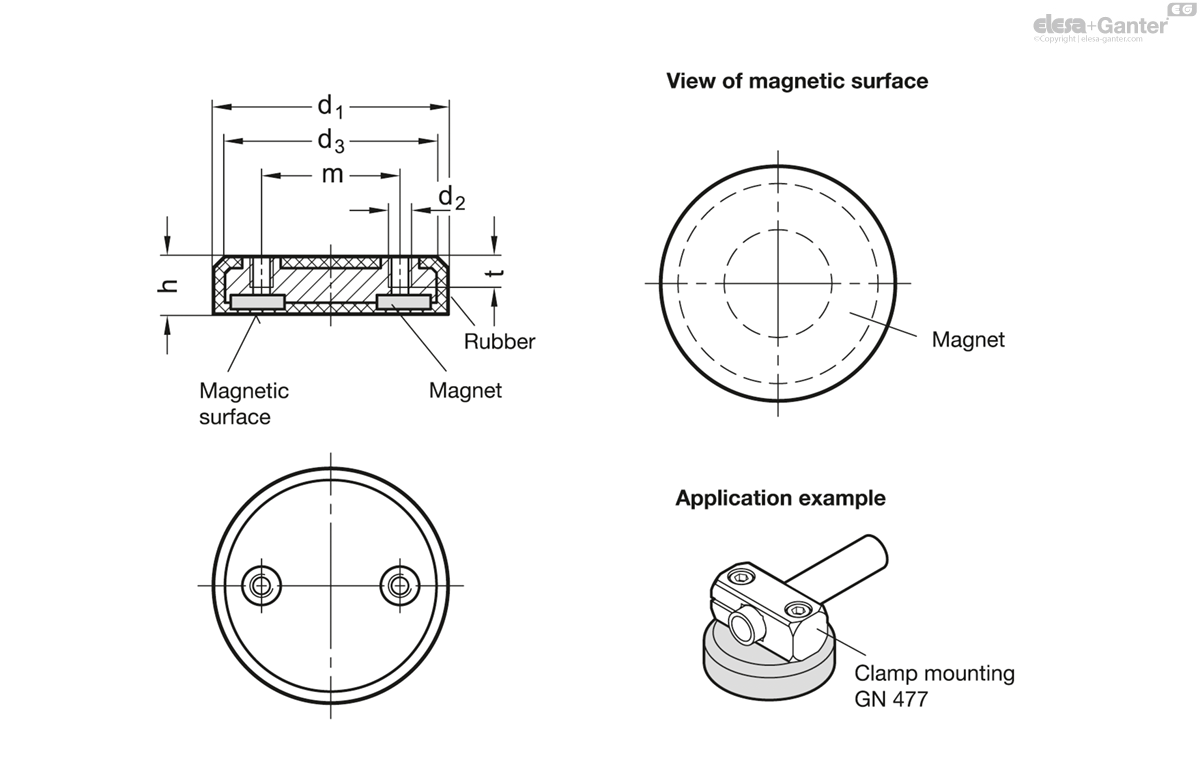

Technische gegevens
- Code
- GN 51.6-ND-57-36-M6
- d1
- 57
- m
- 36
- d2
- M 6
- d3
- 53
- h
- 11.3
- t min.
- 7
- Nominal adhesive forces in N
- 175
- 54
Steel part
zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
black
Retaining magnets GN 51.6 are a shielded magnetic system with rubber jacket.
The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.
Its dimensions, especially the drill hole spacing m and the thread d2, match the clamp mountings GN 473, GN 477 and GN 480.
