350.3-105-ST
GN 350.3-ST Staal
Staal / RVS
Lt: 1-2 weken Alle maten en varianten van GN 350.3
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

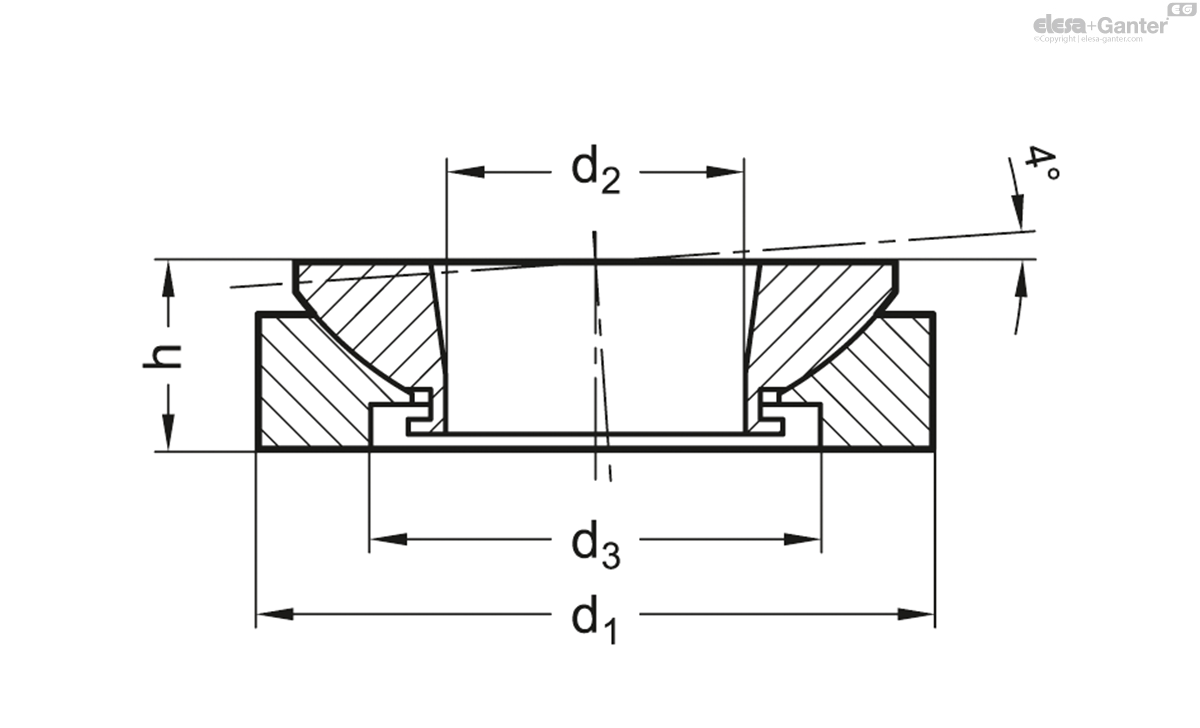

Technische gegevens
- Code
- GN 350.3-105-ST
- d1
- 105
- d2
- 58
- d3
- 78
- h ±0.5
- 25
- for thread
up to max. - M 48
- Static load
in kN - 920
- 940
Steel 1.7225 (42 CrMo 4 V) ST
Zinc plated, blue passivated
Stainless steel AISI 303 (X 10 CrNiS 18-9) NI
Spherical leveling washers GN 350.3 have been designed to match the leveling sets GN 350, GN 350.1, GN 350.2and GN 350.5.
The two spherical washers are used together „undetachably“.
The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched sphere of the concave „pan“.
Furthermore it is recommended using high-strength washers for bridging d2.
