GN 822.8 Mini-indexeerplunjers
Lt: 1-2 weken Alle maten en varianten van GN 822.8
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 822.8-8-20-C
- d1
Bore
+0.03/+0.08 Pin h9 - 8
- l1
- 20
- b1
- 50
- b2
- 23
- d2 -0.15
- 14
- d3
- 33
- d4
- 5.3
- k
- 38
- l2
- 35
- l3
- 2.5
- l4
- 5
- l5
- 10
- Spring load in N ≈
initial - 11
- Spring load in N ≈
end - 35
- 97
Types
- Type B: without rest position
- Type C: with rest position
Guide
Zinc die casting
plastic coated
black, textured finish
Pin
Stainless Steel AISI 303
Spring
Stainless Steel AISI 301
Knob
Plastic (Polyamide PA)
- black, matt
- not removable

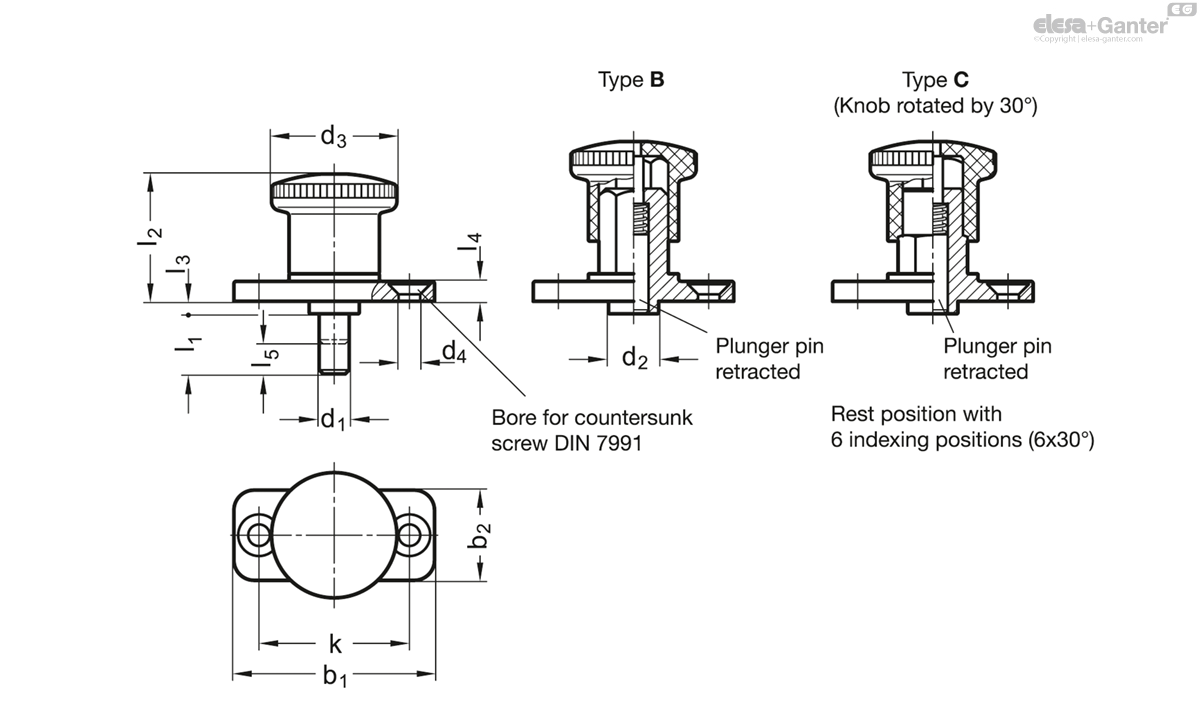

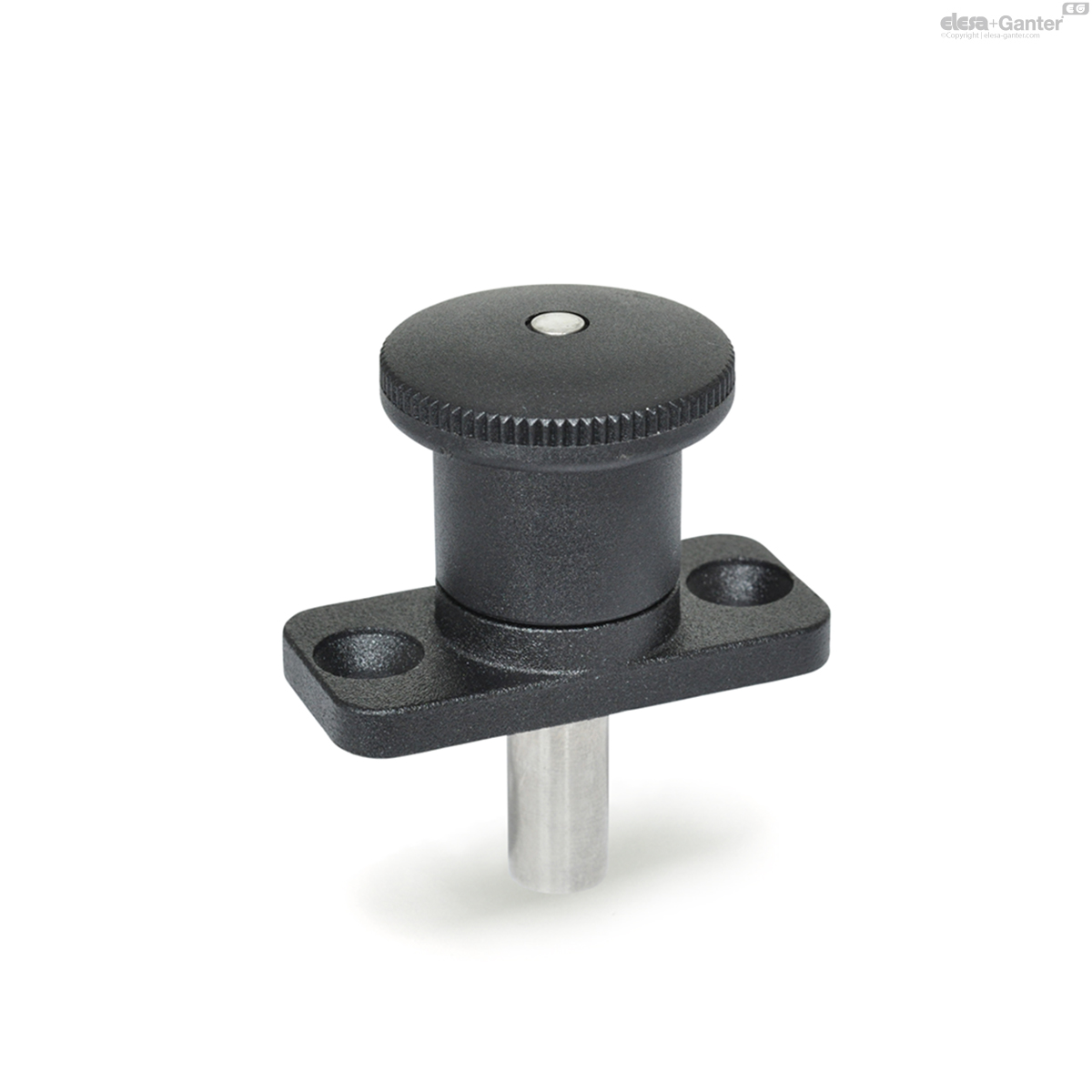

Mini indexing plungers GN 822.8 are distinguished for their small dimensions. They are mounted by countersunk screws.
The mini indexing plungers present an affordable alternative to the GN 608 and GN 608.1 indexing plungers.
In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.
- with red knob
