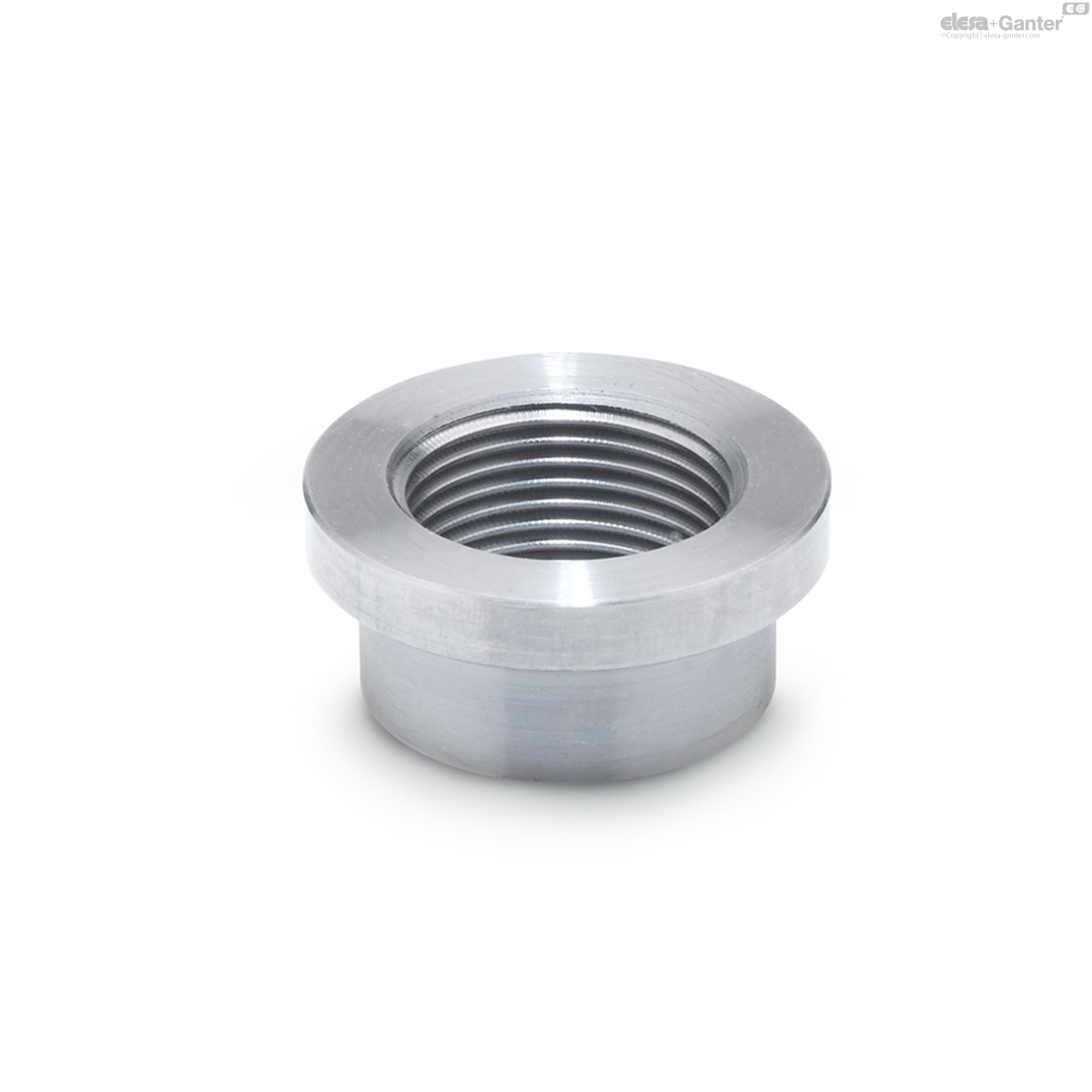

7490-ST-G11/2-B GN 7490 Staal

7490-ST-G11/2-B

GN 7490 Staal

Staal/roestvrij staal, met en zonder kraag
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 7490

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 7490-ST-G11/2-B
d1
G 1 1/2
d2
65
d3
55
h1
24
h2
7.5
177
7490-ST-G11/2-B drawing

Types

  • Type A: With chamfer
  • Type B: With collar

Version in Steel

Steel ST

  • Weldable
  • Turned
  • Plain

Version in Stainless Steel

Stainless steel AISI 304 NI

  • Weldable
  • Turned
  • Plain

Welding sockets GN 7490 are used to attach threaded connections to containers, tanks or hydraulic cylinders via welding.

Filling and draining screw plugs as well as aeration and venting elements and oil level sight glasses can then be easily installed by screwing them in.

The flat surfaces are machined and can be used as sealing surfaces in connection with a suitable sealing element.

The sufficiently dimensioned walls prevent deformation or burn-through during welding

Type B (with collar) is used if exact positioning within the mounting bore or a low installed height is desired.
