612.8-6-M16X1,5-A GN 612.8 Indexeerbouten

612.8-6-M16X1,5-A

GN 612.8 Indexeerbouten

Behuizing van zinkspuitgietwerk met schroefdraad, ZNDG Pass nano®-coating
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 612.8

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 612.8-6-M16x1,5-A
d1 Pin-0.05

Bore
+0.1/+0.05
6
d2
M 16 x 1.5
l1
56.5
l2
10
l3
28
l4
30
A/F
18
Spring load
in N ≈
initial
11
Spring load
in N ≈
end
30
45

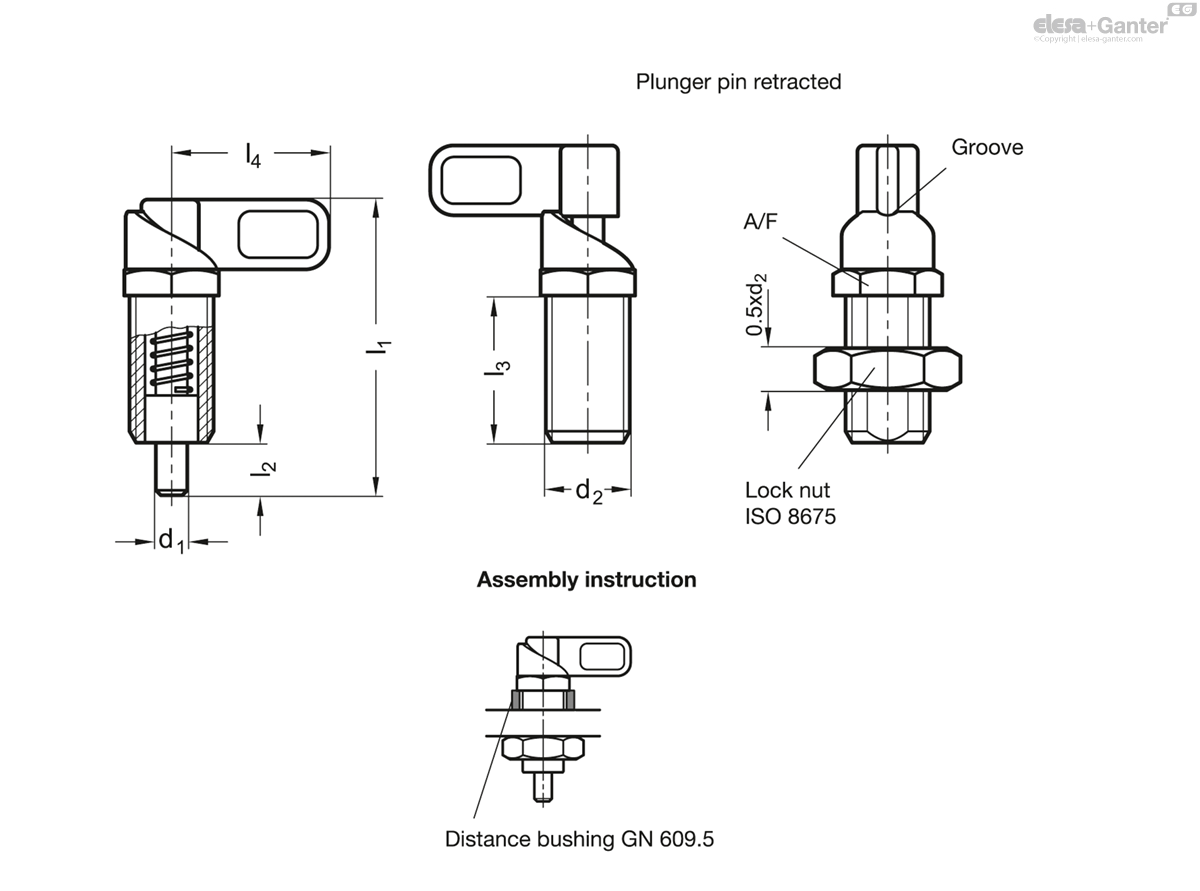

612.8-6-M16X1,5-A drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Guide

Zinc die casting

Zinc plated, blue passivated

Plunger pin

Steel

zinc plated, blue passivated

Lever

Plastic (Polyamide PA)

  • black, matt
  • not removable

Cam action indexing plungers GN 612.8 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. The groove allows safe positioning.

These cam action indexing plungers made of die-cast zinc are very reasonably priced design versions.
