414-8-8-AK GN 414 Staal

414-8-8-AK

GN 414 Staal

Staal / roestvrij staal, met veiligheidsslot, ontgrendeling met drukknop
  • INOX
  • RoHS

Op voorraad Alle maten en varianten van GN 414

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 414-8-8-AK
d1 Pin -0.02/-0.04 Bore H7
8
l1 min.
8
d2
M 16 x 1.5
d3
28
e
21.9
l2 ≈
62
l3
26
l4
8
A/F
19
Spring load
in N≈ initial
8.5
Spring load
in N≈ end
26
Axial load in N
120
89

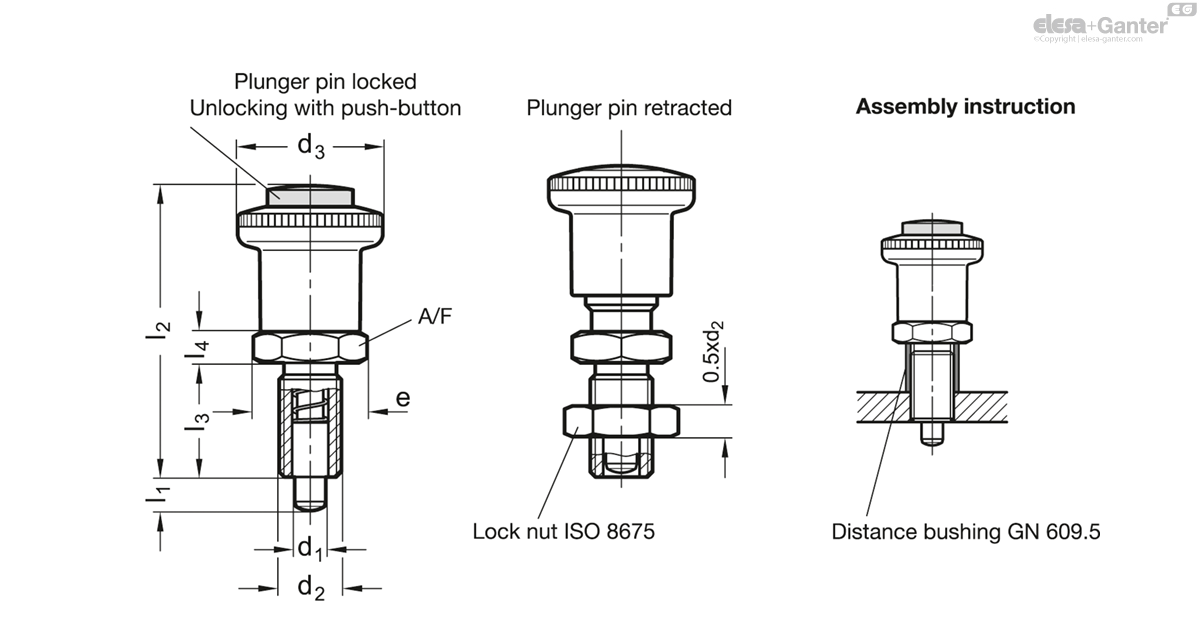

414-8-8-AK drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black-grey, RAL 7021, matt
  • temperature resistant up to 80 °C
  • not removable

Push-button

Plastic (Polyacetal POM)

red, RAL 3000, matt

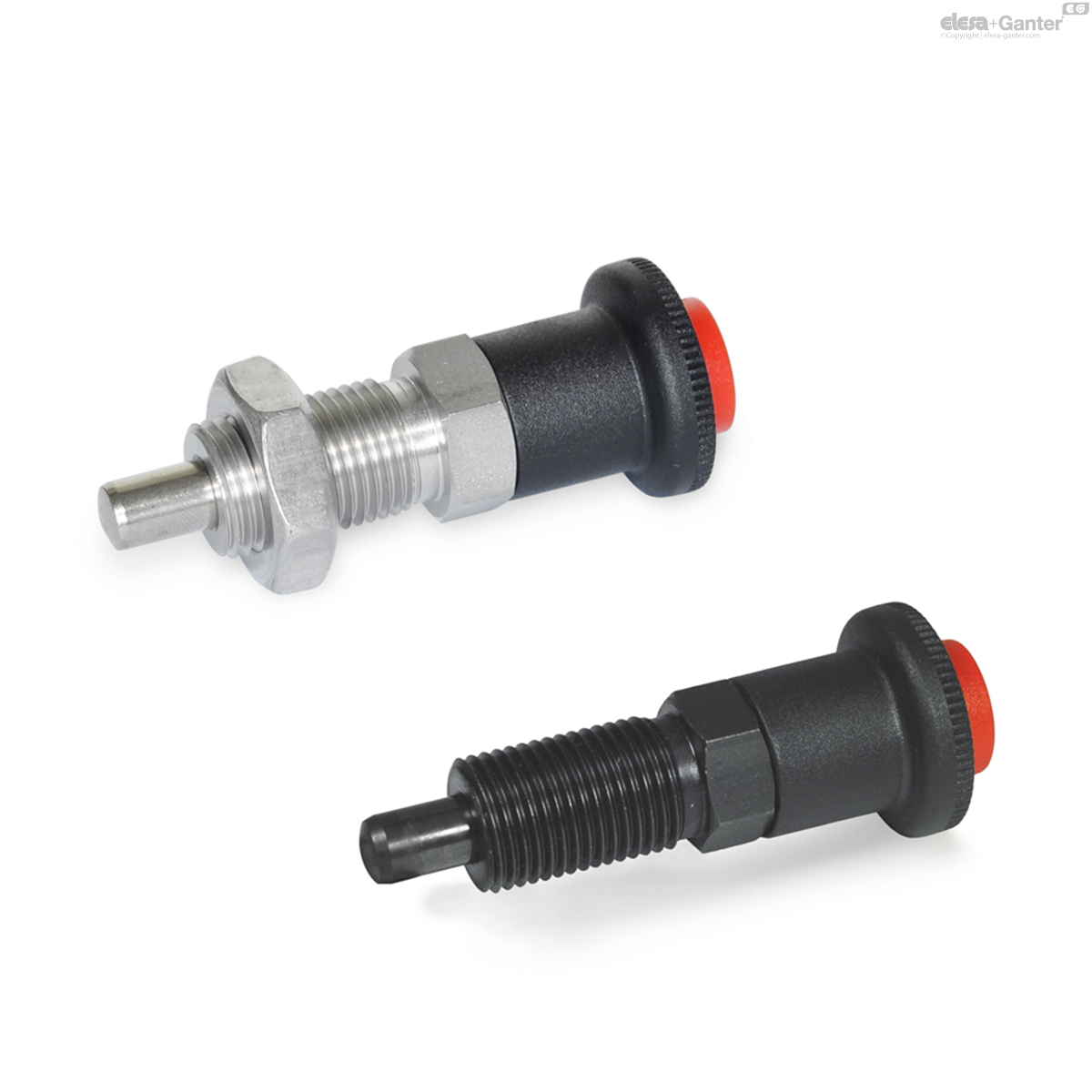

Indexing plungers GN 414 with safety function are used when the inadvertent retraction of the plunger pin is to be prevented. The protruding plunger is first locked and may be unlocked for pulling only by exerting axial pressure on the red safety push-button

In every case, the safety lock engages in the front end position, i.e. automatically if the indexing pin protrudes, with the locking mechanism housed fully in the operating button and protected from malfunctions. The specified axial load bearing capacity refers to the locking force of the bolt against inadvertent operation which must not be exceeded.
