302-30-B5-SW
GN 302 met bus
Lt: 1-2 weken Alle maten en varianten van GN 302
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

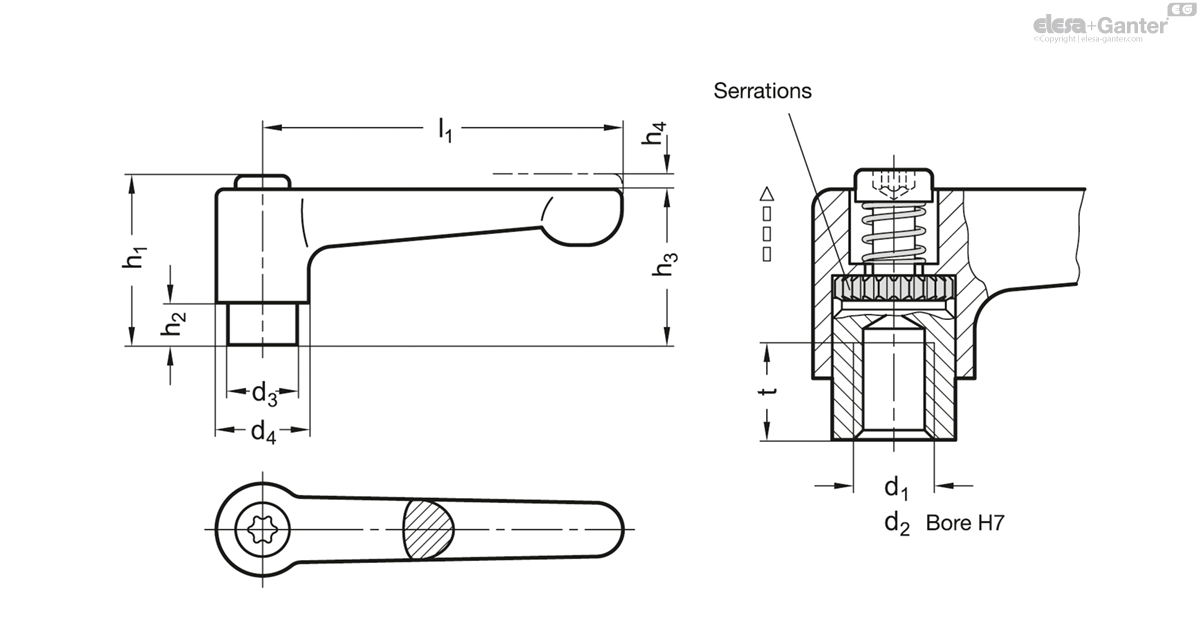

Technische gegevens
- Code
- GN 302-30-B5-SW
- l1
- 30
- d2 H7
- B 5
- d3
- 10
- d4
- 13
- h1
- 24.5
- h2
- 4
- h3
- 22
- h4
- 3.5
- t min.
- 9
- 25
Handle
Zinc die casting
plastic coated
black, RAL 9005, textured finish SW
orange, RAL 2004, textured finish OS
red, RAL 3000, textured finish RS
silver, RAL 9006, textured finish SR
Version with bushing
Threaded bush and retaining screw
Steel, blackened
Version with threaded stud
Threaded stud and retaining screw
Steel (5.8), blackened
Adjustable hand levers GN 302 have a straight lever, not inclined, being parallel to the clamping space.
Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
- with insert in Stainless Steel
- with push-button
