131-B15-B15-2-NI GN 131-NI Roestvrij staal

131-B15-B15-2-NI

GN 131-NI Roestvrij staal

Aluminium/RVS
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 3-4 weken Alle maten en varianten van GN 131

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code

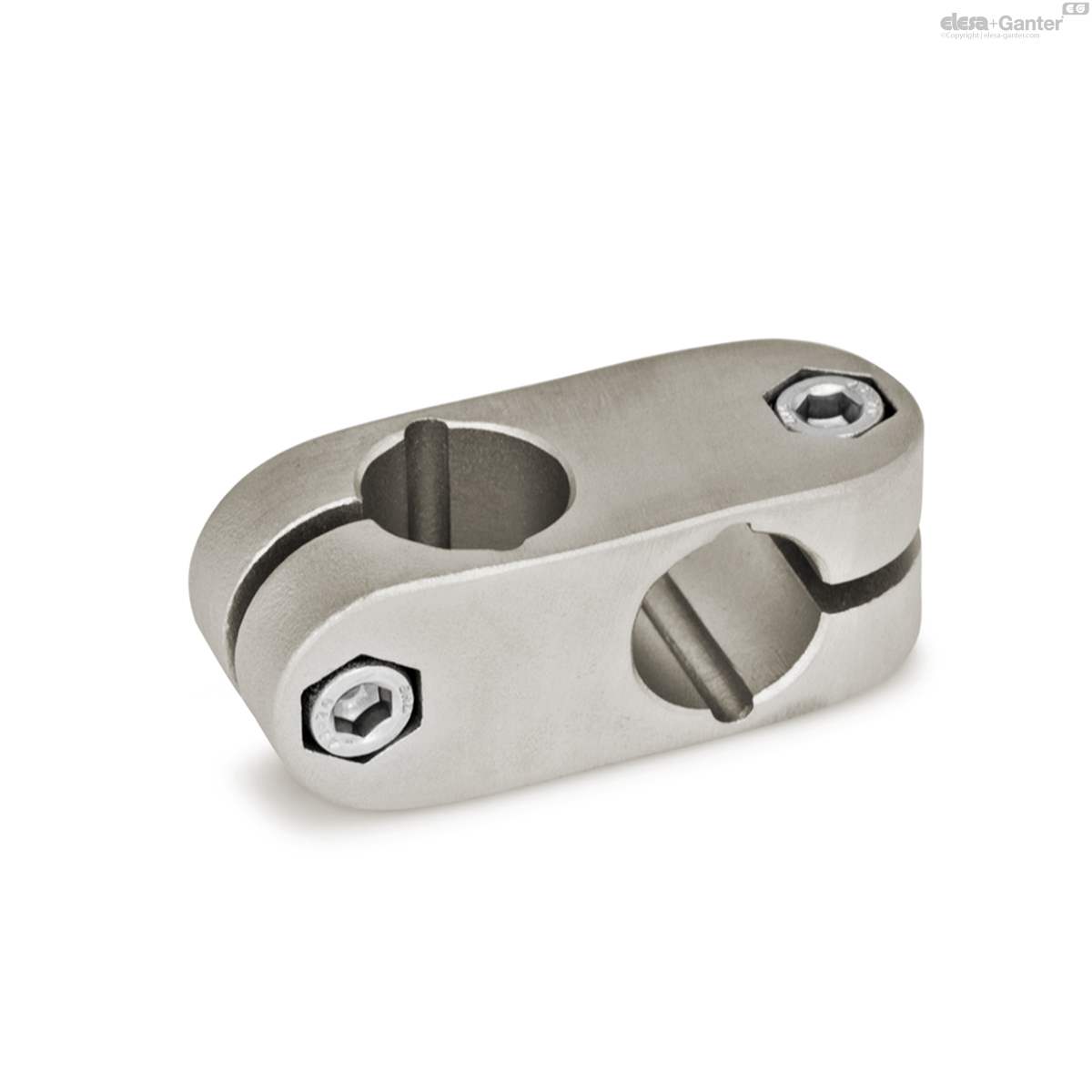

GN 131-B15-B15-2-NI
d1
Bore
B 15
d2
Bore
B 15
k Clamping length
25
l1
64
m
20
z
Schraubstellen
M6-20
190

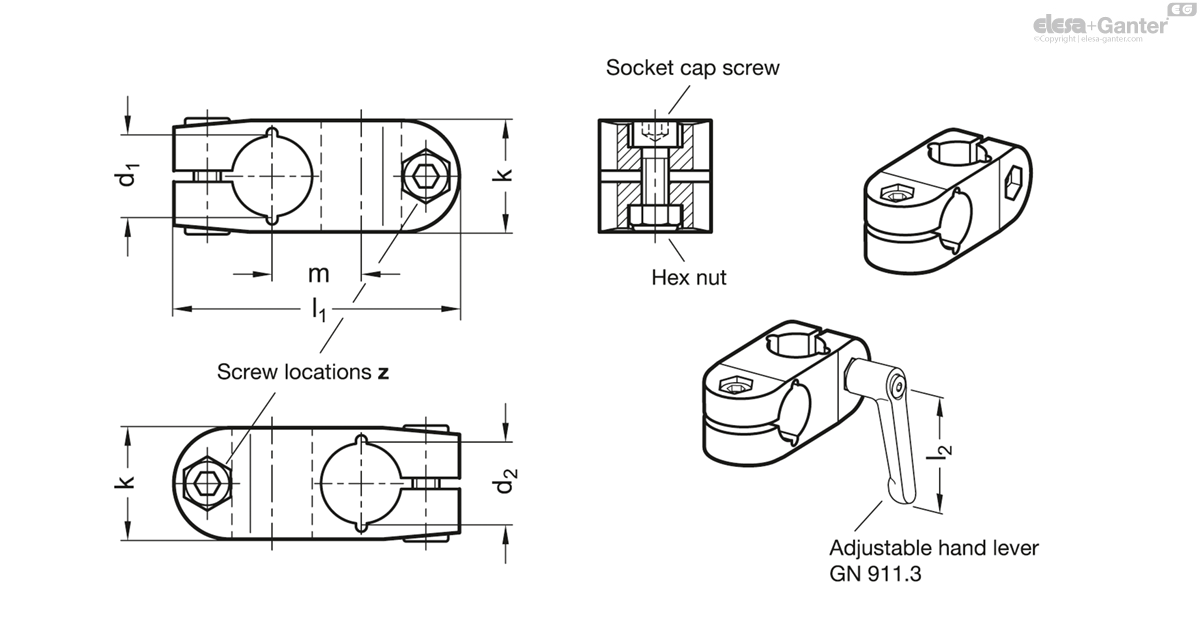

131-B15-B15-2-NI drawing

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Stainless steel AISI CF-8 NI

Matte shot-blasted

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

The clamping bores of two-way connector clamps GN 131 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  / GN 911.3  listed in the table as accessories.

  • d1 / d2 with unequal bores
