298-50-B40-T-SW GN 298 Behuizingen
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

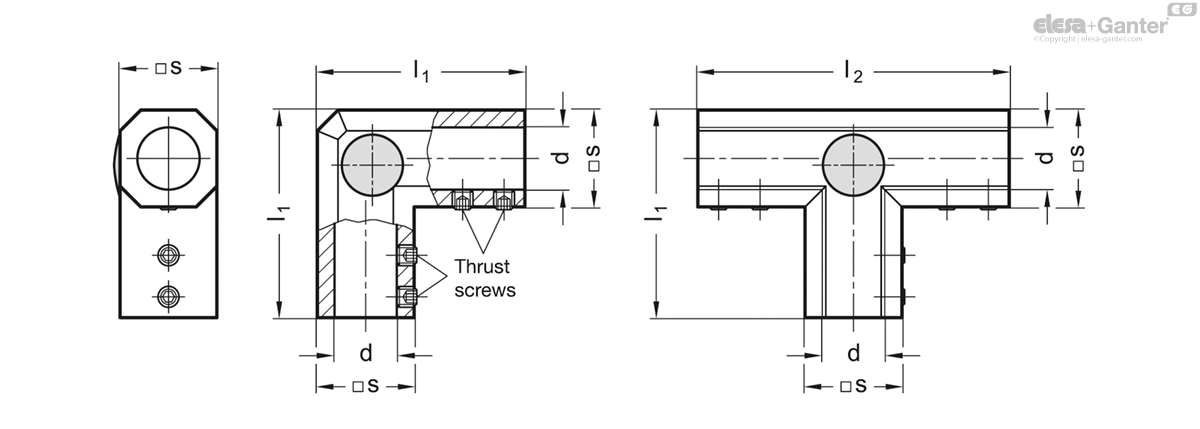

Technische gegevens
- Code
- GN 298-50-B40-T-SW
- s
- 50
- d
- B 40
- l1
- 108
- l2
- 162
- 542
Types
- Type W: Housing for angular gears
- Type T: Housing for T-gears
Aluminium gravity die casting
plastic coated
black, RAL 9005, textured finish SW
Thrust screws
Stainless Steel
Housings GN 298 for angular / T-gears are used in connection with bevel gear wheels GN 297 and linear actuators / transfer units. The angular / T-gears are designed to deflect the rotary movement of a linear actuator / transfer unit by 90°.
An operating instruction with more details and specifications is included with every delivery.
Assembly of linear actuators and transfer units with bevel gear wheels in housings GN 298
| d Ø Linear actuator / transfer unit | l2 | l3 | m1 | m2 | Bevel gear wheel | Housing | Length of the transfer unit GN 391: l1 = A - 2 x m1 |
| 18 | 41 | 40 | 20 | 4 | GN 297-17,5-K6 | GN 298-28-B18-W/T-SW | |
| 30 | 58 | 57 | 26 | 1 | GN 297-26-K8 | GN 298-40-B30-W/T-SW | |
| 40 | 75.5 | 73.5 | 32 | 1 | GN 297-35-K12 | GN 298-50-B40-W/T-SW | |
| 50 | 90.5 | 87.5 | 32 | 1 | GN 297-35-K12 | GN 298-60-B50-W/T-SW |
Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.
The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.
Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.
The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.
