666-30-M8-350-NG GN 666-NG Roestvrij staal

666-30-M8-350-NG

GN 666-NG Roestvrij staal

Buis Aluminium / Roestvast staal
  • INOX
  • RoHS

Lt: 1-2 weken Alle maten en varianten van GN 666

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 666-30-M8-350-NG
d1
30
d2
M 8
l1 ±0.5
350
b
18
h
60
l2
380
l3
320
l4
415
t min.
15
534

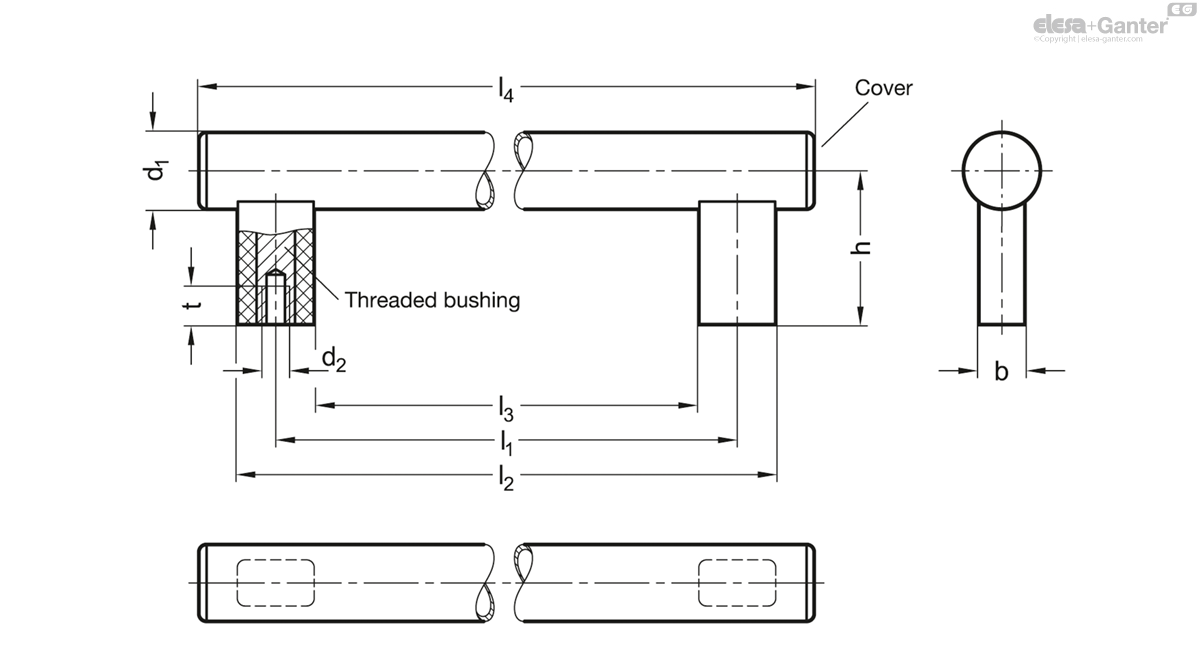

666-30-M8-350-NG drawing

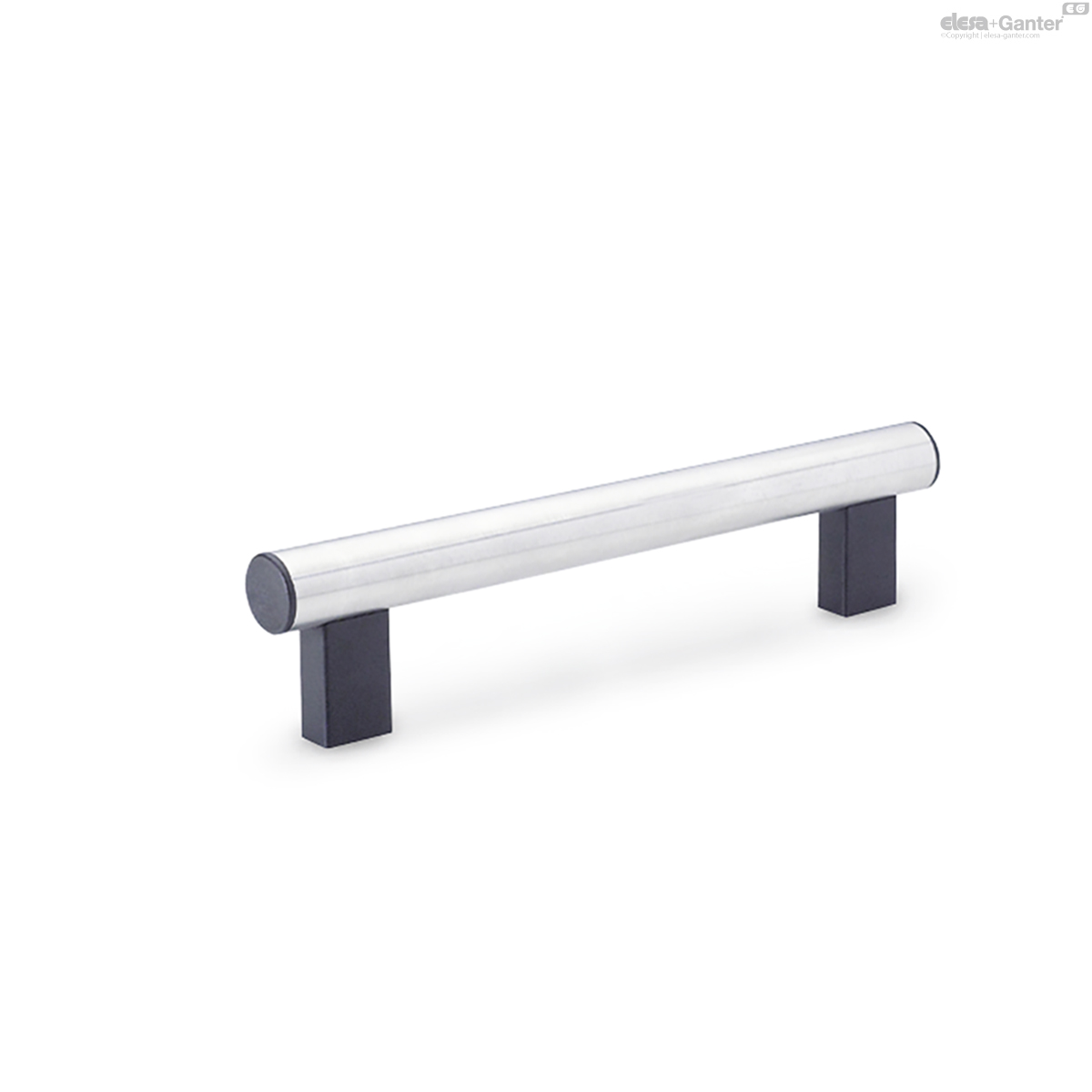

Handle tube

Wall thickness 1,5 mm

  • Aluminum
  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color EL
  • Handle legs / Covers, black, matte finish
  • Anodized, natural color ELG
  • Handle legs / Covers, light gray, matte finish
  • Stainless steel AISI 304
  • Ground, matte shiny finish NG
  • Handle legs / Covers, black, matte finish

Handle legs

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 100 °C
  • Threaded bushing steel, zinc plated

Covers

Plastic, thermoplastic elastomer (TPE)

Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.

With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
