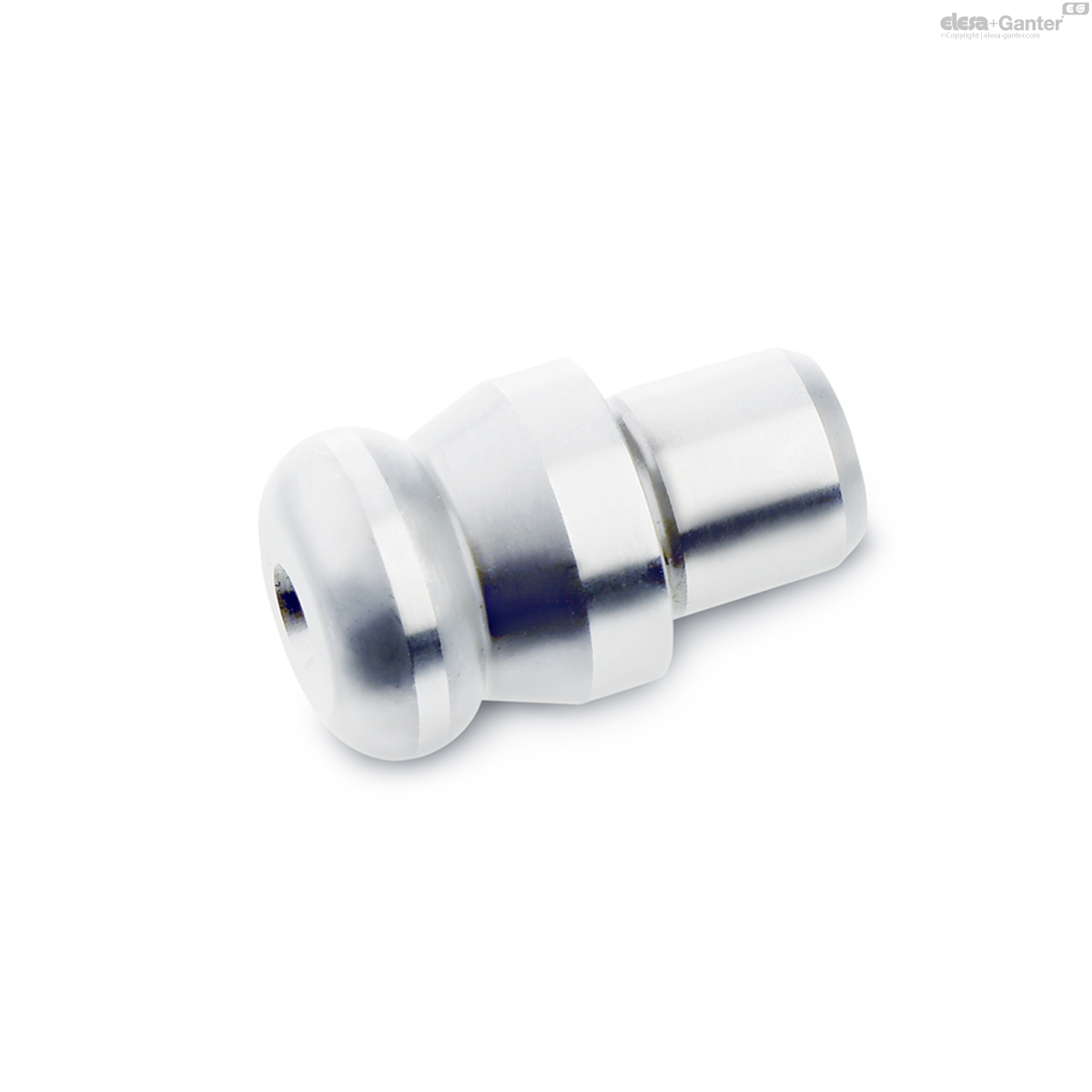

6322-10-7-B GN 6322 Positioneerbouten

6322-10-7-B

GN 6322 Positioneerbouten

met kogelvormige schouder
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 6322

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 6322-10-7-B
d1 g6
10
d2 n6
7
d3 -0.01/-0.05
10
d4
M 3
h1
10
h2
2.5
l
7
t
6
r
2.5
7
6322-10-7-B drawing

Types

  • Type B: Workholding bolt cylindrical
  • Type C: Workholding bolt flattened

Steel

hardened

Workholding bolts GN 6322 are used for positioning in bores, with the ball-type shoulder facilitating the insertion into the bore.

The flattened design (Form C) helps to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.
