473-B8-ELS GN 473 Basisplaatbevestigingen

473-B8-ELS

GN 473 Basisplaatbevestigingen

Aluminium
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 473

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 473-B8-ELS
d1
Bore for shaft tolerance h11
B 8
b1
14
b2
29
d2
31.5
d3
M 4
d4
M 4
l1
20
l2
7
l3
7
l4
3
m
22
Clamping kits for d3
GN 511-M4-14
23

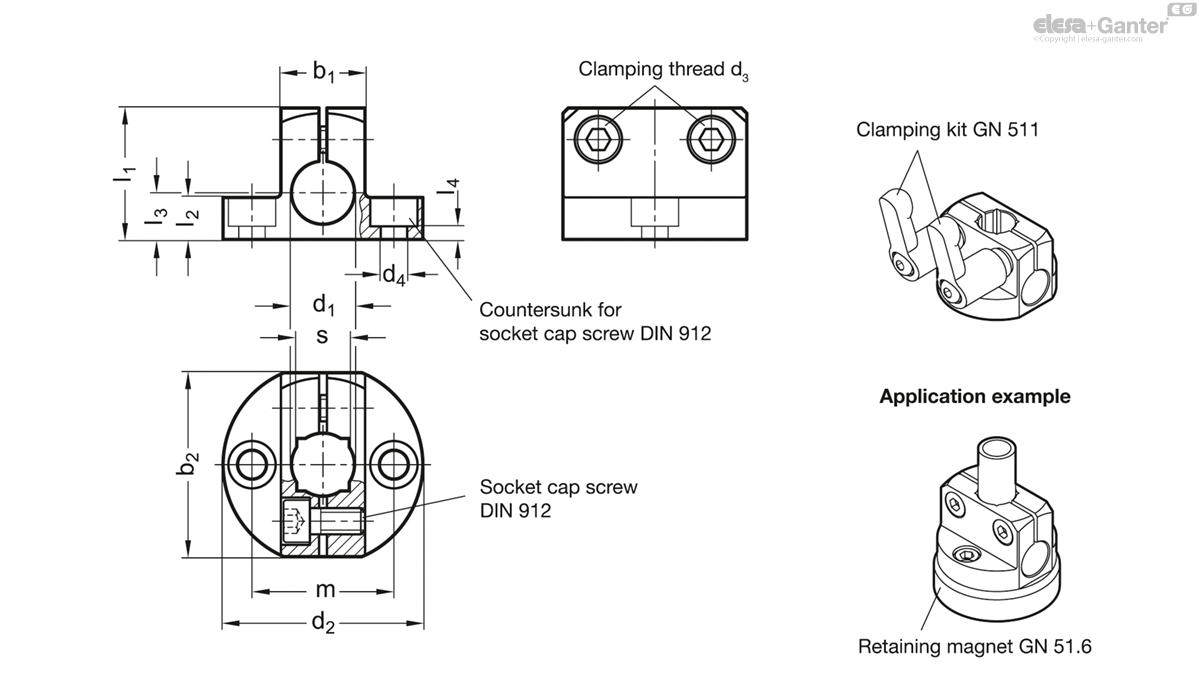

473-B8-ELS drawing

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Socket cap screws DIN 912

Stainless Steel AISI 304

The base plate clamp mountings GN 473 have a horizontal and a vertical clamping bore. The vertical clamping bore is additionally fitted with a square.

The bore distance m of the base plate mountings GN 473 is matched with the clamp mountings  GN 477  and the flanged bolts GN 480  as well as retaining magnets GN 51.6

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping lever GN 511  (see table of dimensions).
