111-320-24 GN 111 Kogelkettingen

111-320-24

GN 111 Kogelkettingen

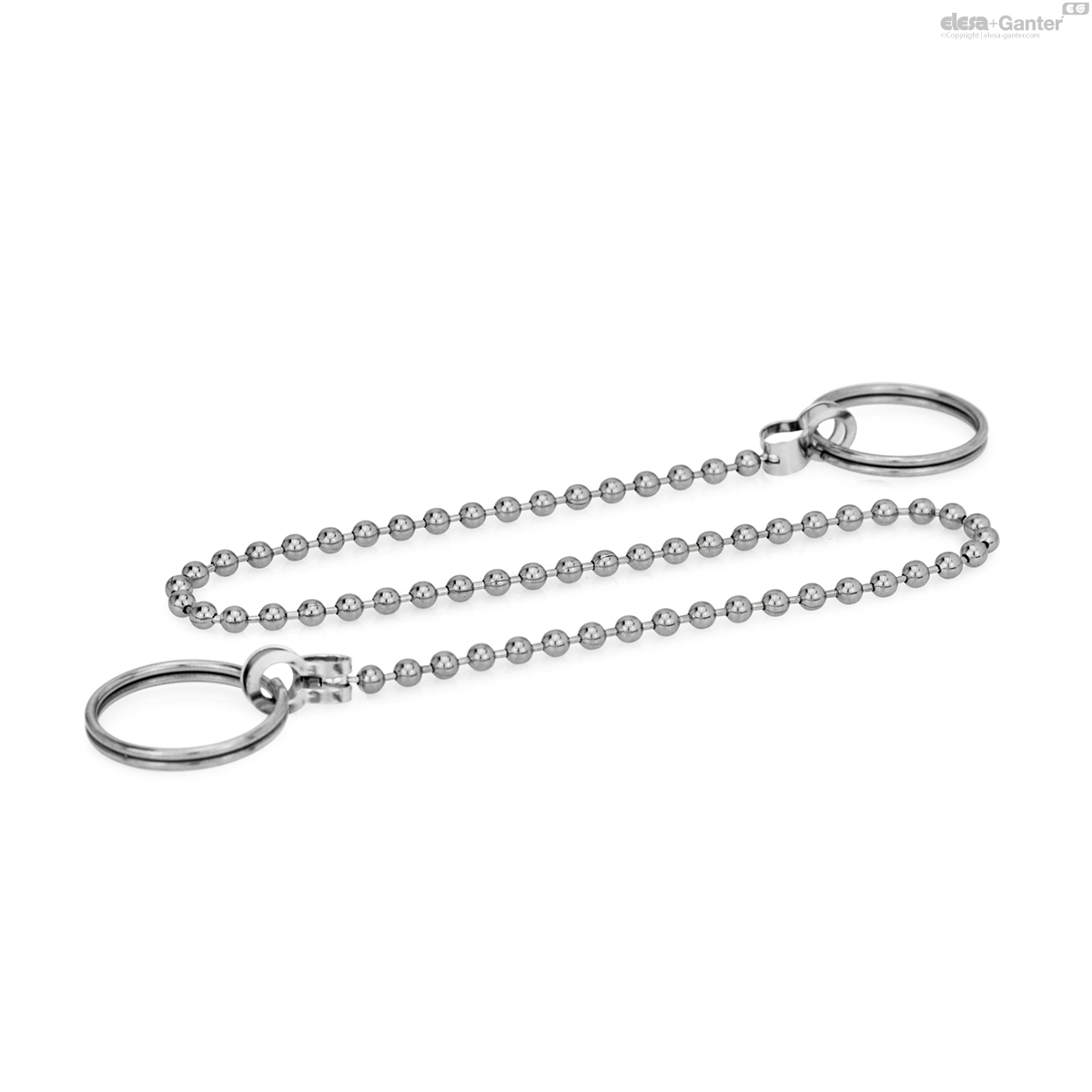

Messing, met twee sleutelringen
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 111

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 111-320-24
l ±3
320
d1
24
d2
1.5
Static load in N ≈
with key ring
100
Static load in N ≈
without key ring
180
13

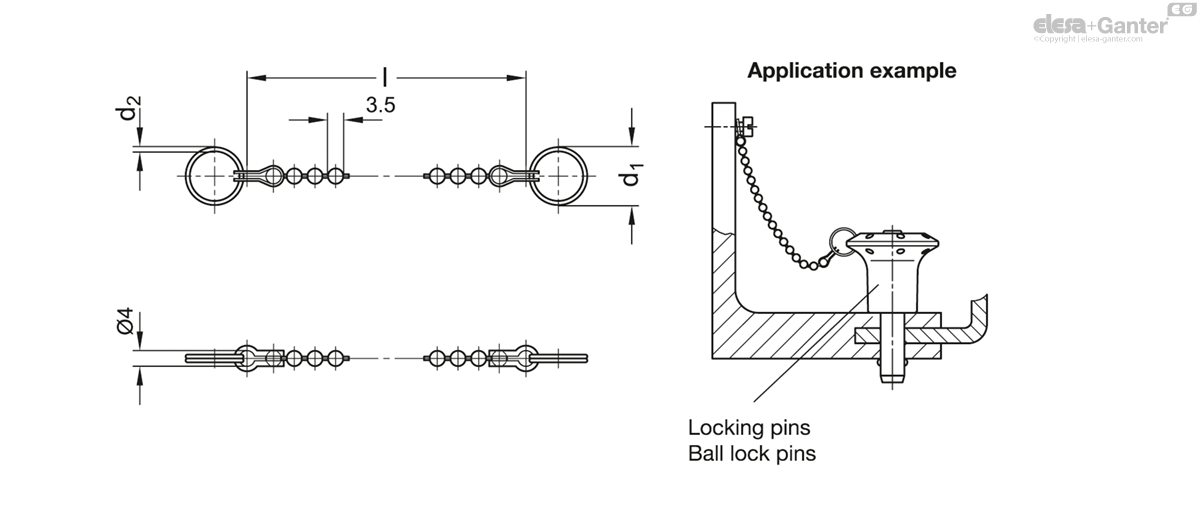

111-320-24 drawing

Ball chain

Brass

Nickel plated

Key ring

Stainless steel AISI 301

Ball chains GN 111 are mainly used in connection with ball lock pins and locking pins with axial lock.

The ball chains lack any amount of stiffness due to their design.

The key rings are supplied unmounted. Both rings have the same Ø d1.

The details on static loads are guide values given without warranty.

Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø:
d1GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10GN 113.5, GN 113.6GN 113.11, GN 113.12GN 114.2, GN 114.3, GN 114.6GN 114.7, GN 114.8GN 114.11, GN 114.12GN 124.1, GN 124.2GN 124.3GN 214.2, GN 214.3, GN 214.6GN 314
145 / 6 / 8all5 / 6 / 8 / 10all6 / 86 / 8 / 10 / 12all2024-10-086 / 8-
1810 / 12 / 16 / 20 / 25-12 / 16-10 / 12 / 16 / 2016 / 20-10 / 1210 / 12 / 16 / 20 / 258 / 10 / 12
24--20 / 25------16 / 20
30----------
