62-AN-70
GN 62 U-magneten
Lt: 1-2 weken Alle maten en varianten van GN 62
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

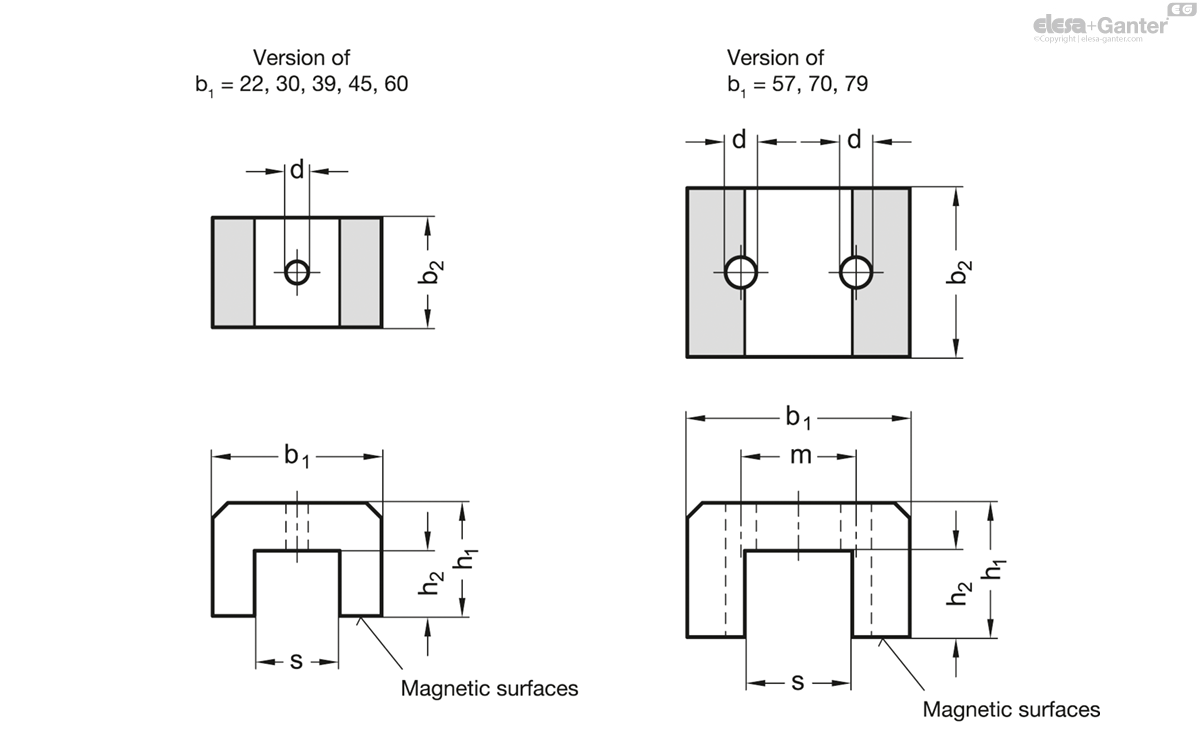

Technische fiche
Technische gegevens
- Code
- GN 62-AN-70
- b1
- 70
- b2
- 57
- d
- 8
- h1
- 41
- h2
- 25
- m
- 38
- s
- 35
- Nominal adhesive forces in N
- 320
- 700
Material of the magnet
AlNiCo AN
Aluminium, nickel, cobalt
temperature resistant up to 450 °C
Lacquering red
temperature resistant up to 180 °C
U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.
To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
blank, temperature resistant up to 450 °C
