52.4-AN-50-M10-E GN 52.4 Magneten

52.4-AN-50-M10-E

GN 52.4 Magneten

Staafvormig, met schroefdraad
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 52.4

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 52.4-AN-50-M10-E
d1 ±0.1
50
d2
M 10
h ±0.2
60
l
15
A/F
5
Nominal adhesive forces in N
400
855

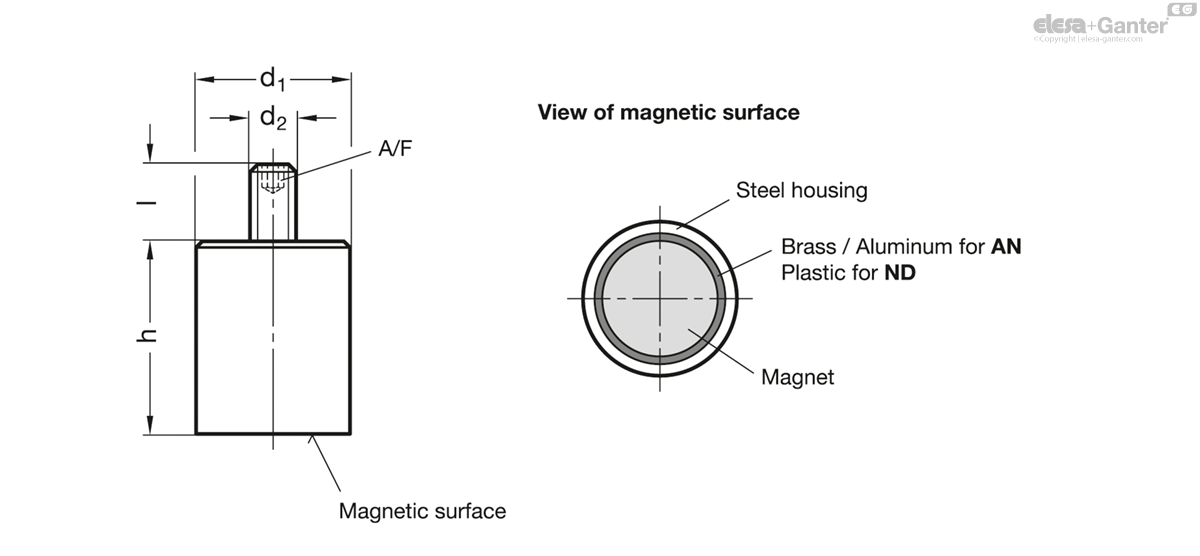

52.4-AN-50-M10-E drawing

Type

  • Type E: with threaded stud

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

Temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
