52.1-AN-16-2 GN 52.1 Magneten

52.1-AN-16-2

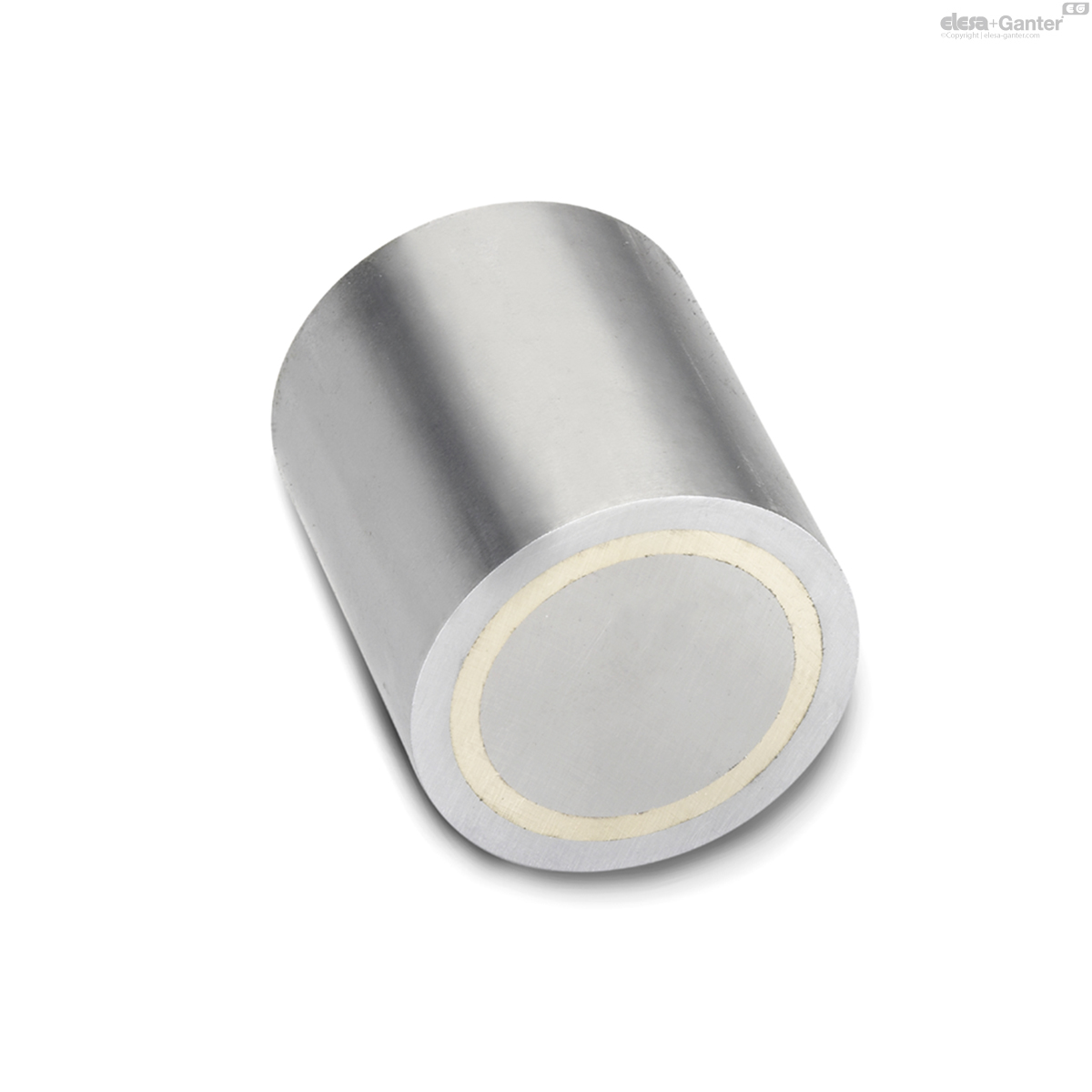

GN 52.1 Magneten

staafvormig, zonder boring, met/zonder pastolerantie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 52.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 52.1-AN-16-2
d
16
h ±0.2
20
k*
6
Nominal
magnetic forces
in N
20
30
52.1-AN-16-2 drawing
* k is the maximum dimension by which the retaining magnet can be shorted without losing its properties.

Identification No.

  • No. 1: Tolerance d = ±0.1
  • No. 2: Tolerance d = h6

Housing

Steel

  • Identification No. 1: zinc plated
  • Identification No. 2: blank

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Retaining magnets GN 52.1 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The retaining magnets are easy to fasten securely by pressing, shrinking or gluing.
