743.7-24-1NPT-B GN 743.7 Oliepeilglazen

743.7-24-1NPT-B

GN 743.7 Oliepeilglazen

Messing / natuurlijk glas, bestendig tot 100 °C
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 743.7

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 743.7-24-1NPT-B
d1
24
d2
1 NPT
a
10.2
d3
33.7
d4
1 NPT
e
41.5
l1
22
l2
8
s
34.9
p
2.21
70

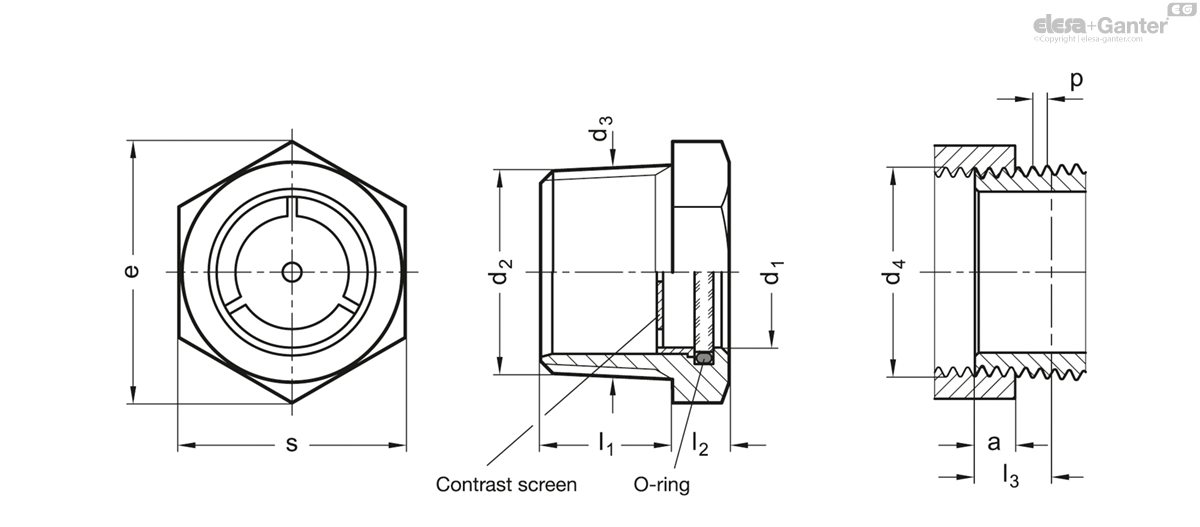

743.7-24-1NPT-B drawing

Types

  • Type A: with contrast screen
  • Type B: without contrast screen

Body

Brass

CuZn40Pb2

Contrast screen

Technopolymer (Polysulfon)

  • temperature resistant up to 100 °C
  • Sight glass Float-glass
  • O-Ring rubber NBR (Perbunan®)

The conical thread of the oil level sight glasses GN 743.7 makes a metallic seal possible. When tightening the conical male thread R it blocks itself with the appropriate cylindrical female thread Rp.

With the datum plane a the R-male thread has the same thread diameter as the Rp-female thread, so that it can be screwed in by hand. The strong tightening by means of a tool increases the length of engagement and seals the screw connection. Additionally a sealant (hemp or teflon band) is usually used. The R-thread is „roughened“, so that the sealant does not shift when screwing in.

  • EPDM O-rings
