607.5-6-6-ST GN 607.5 Blokkeerbouten

607.5-6-6-ST

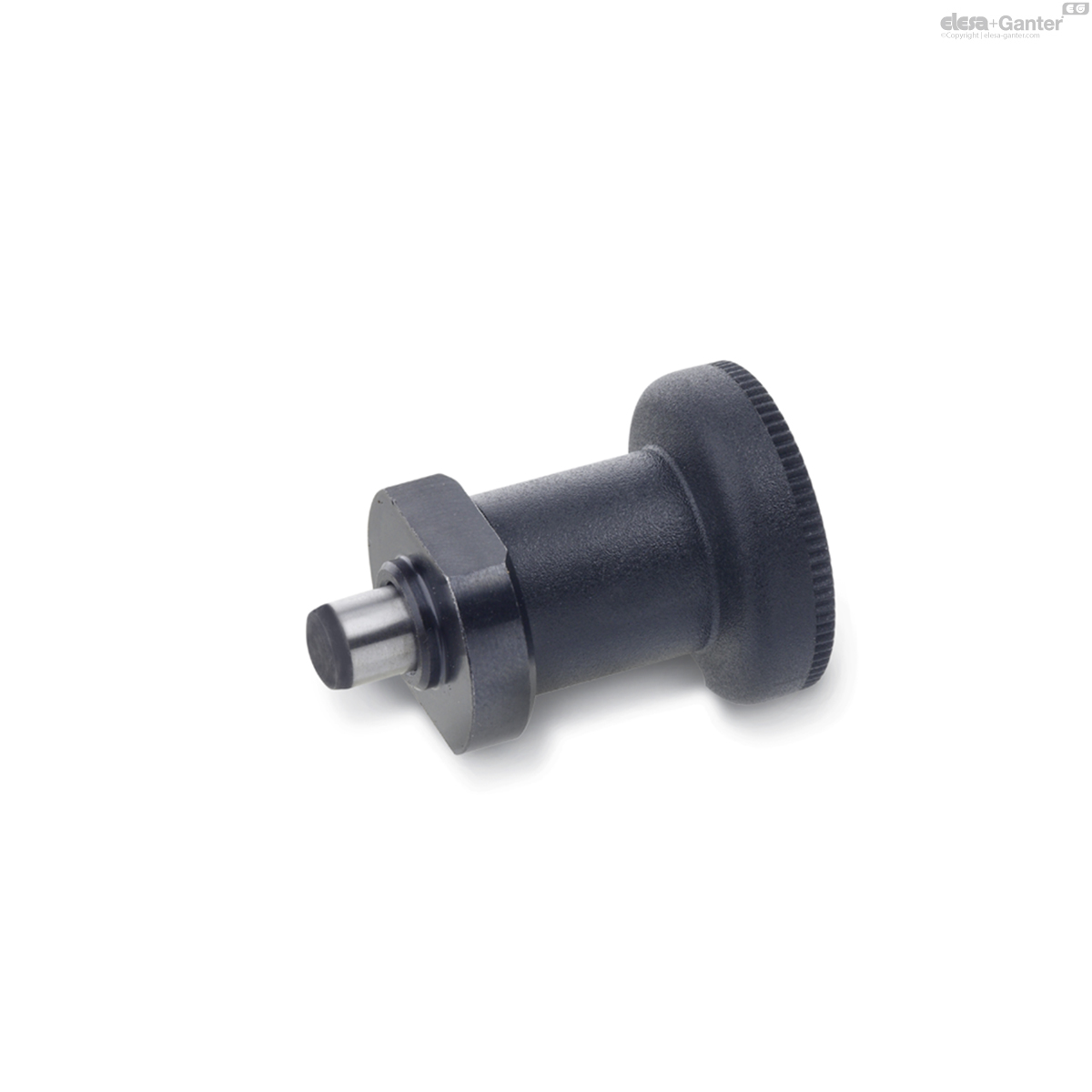

GN 607.5 Blokkeerbouten

voor lassen, met rustpositie
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 607.5

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 607.5-6-6-ST
d1 Pin -0.02/-0.05
Bore
+0.30/+0.25
6
l1
6
b
18
d2 -0.02/-0.1
10
d3
25
d4
22
l2
37
l3
1.5
l4
5.5
l5
6
Spring load in N ≈
initial
9
Spring load in N ≈
end
25
Axial load in N
400
34

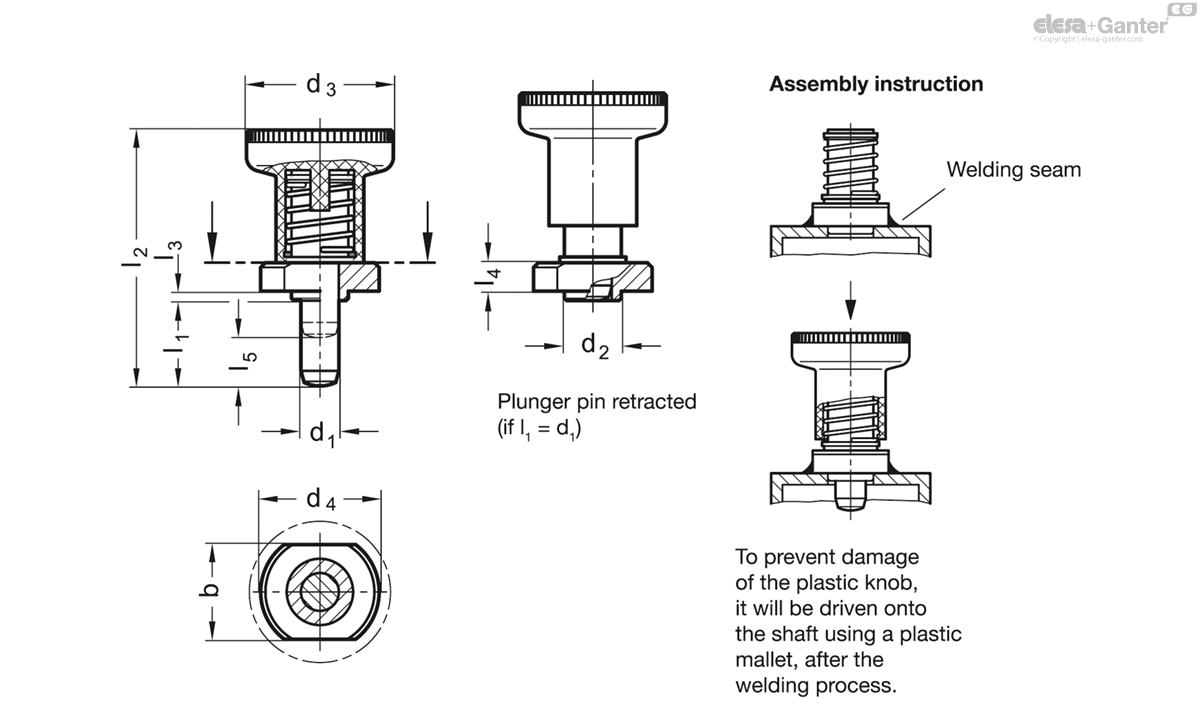

607.5-6-6-ST drawing

Steel ST

  • blackened
  • Pin hardened

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.5 with rest position are used in cases where the indexing pin is temporarily not allowed to protrude. After pulling out, the knob is turned by 90°.

A notch keeps the plunger in this position.

The GN 607.5 indexing plungers are intended for welded fixing, in particular for use in steel square tubings.

The lug d2 is intended for positioning.

The plastic knob with the in-moulded indexing pin is driven on after the welding process.
