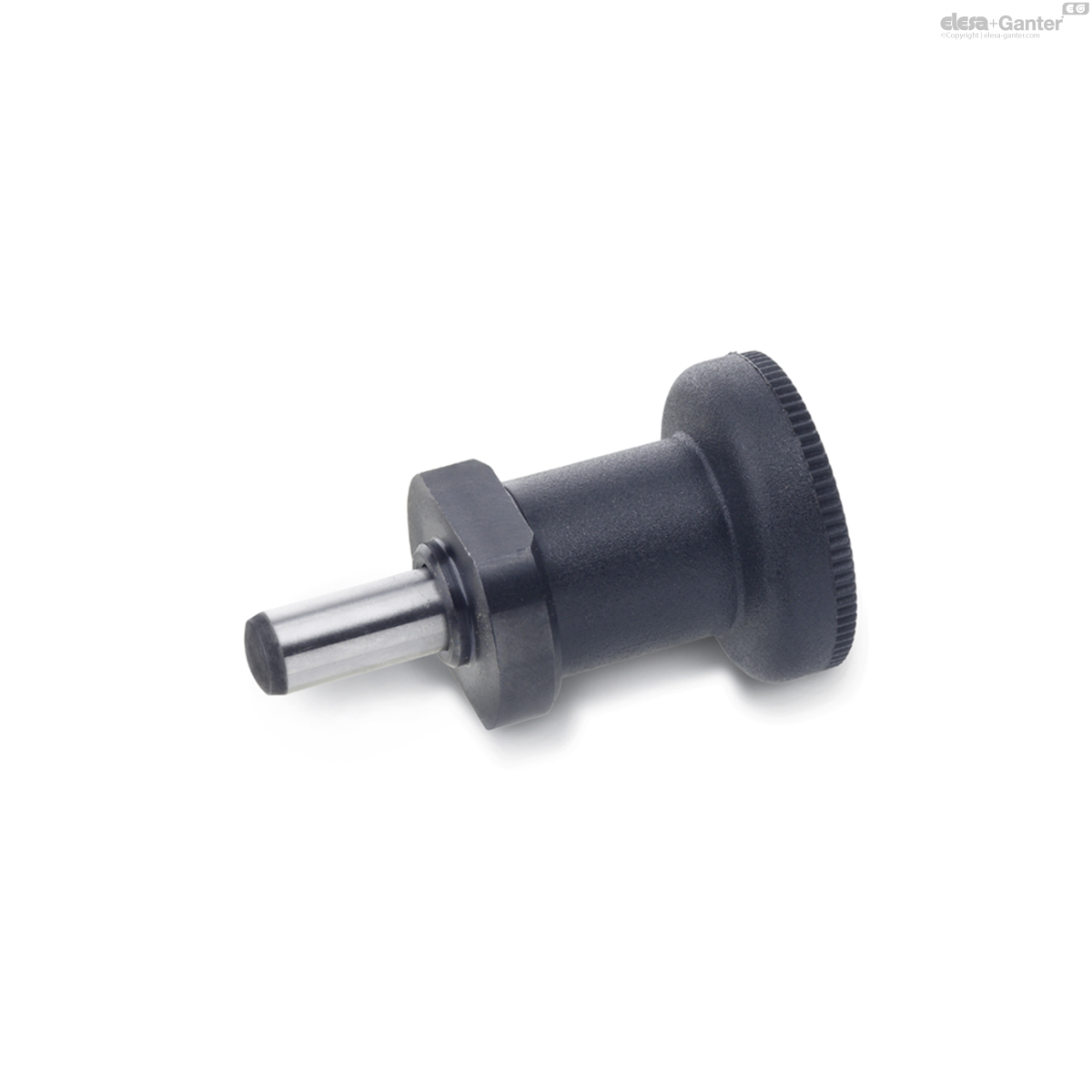

607.4-8-8-ST GN 607.4 Blokkeerbouten

607.4-8-8-ST

GN 607.4 Blokkeerbouten

voor lassen, zonder rustpositie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 607.4

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 607.4-8-8-ST
d1 Pin -0.02/-0.05
Bore
+0.30/+0.25
8
l1
8
b +0.3
20
d2 -0.02/-0.1
12
d3
31
d4
25
l2
44
l3
2
l4
6.5
l5
8
Spring load in N ≈
initial
15
Spring load in N ≈
end
29
Axial load in N
500
55

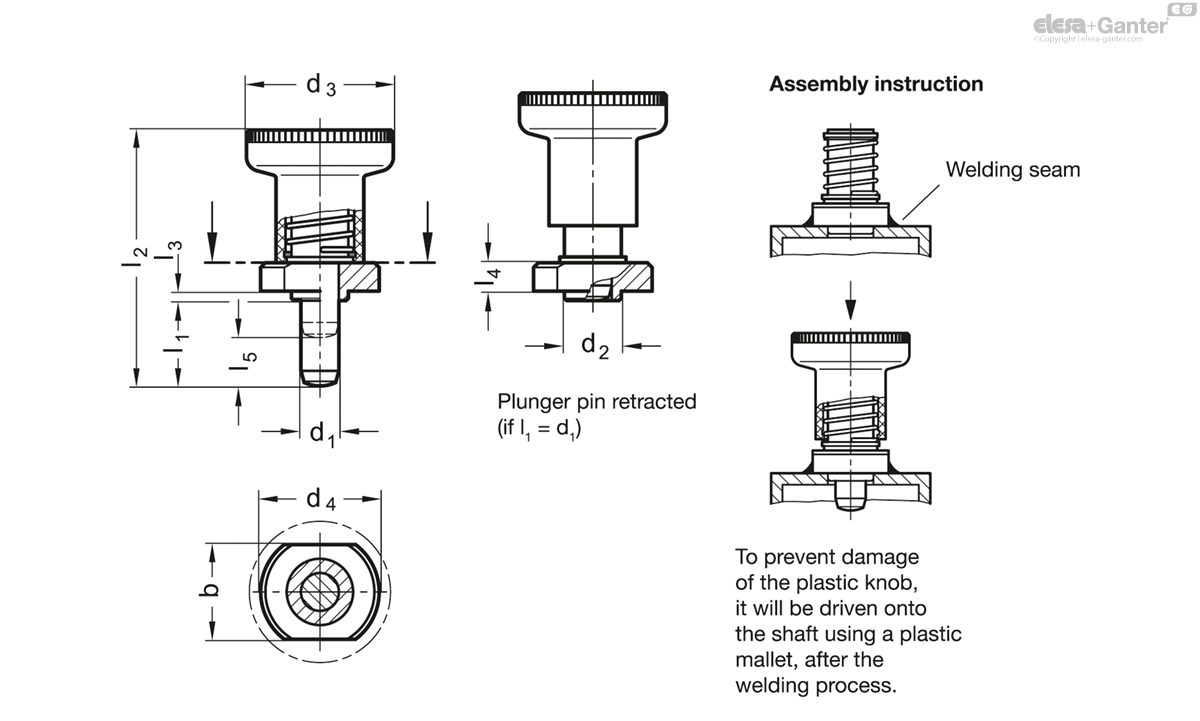

607.4-8-8-ST drawing

Steel ST

  • blackened
  • Pin hardened

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.4 are designed for welded fixing, in particular for use in steel square tubings.

The lug d2 is intended for positioning.

The plastic knob with the in-moulded indexing pin is driven on after the welding process.
