441-40-G1-1-SW GN 441 Schroefdraaddoppen

441-40-G1-1-SW

GN 441 Schroefdraaddoppen

Bestand tot 100 °C, Aluminium
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 441

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 441-40-G1-1-SW
d1
40
d2
G 1
d4
M 5
l1 ±0.5
32.5
l2
11
l3
18
s
7
t min.
8
48

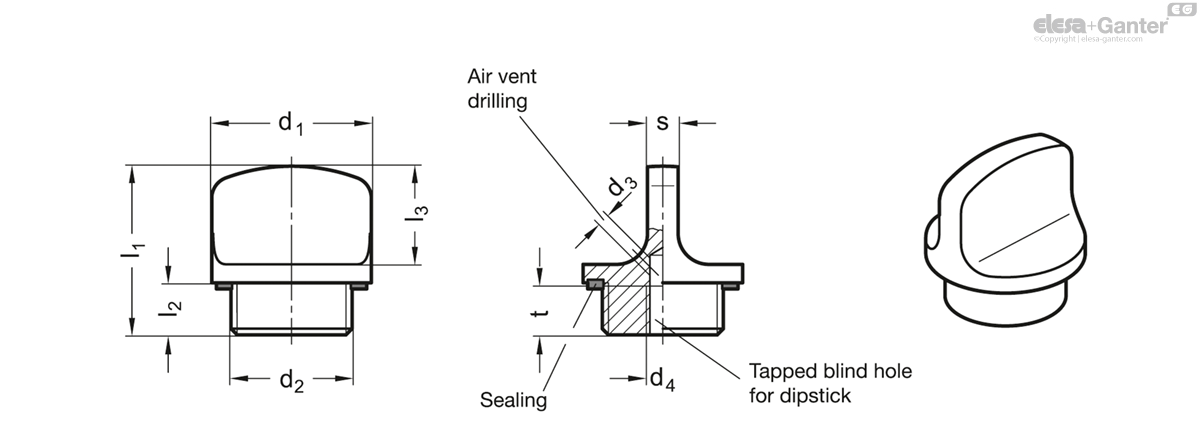

441-40-G1-1-SW drawing

Identification no.

  • No. 1: without vent hole
  • No. 2: with vent hole

Aluminium

plastic coated

black, RAL 9005, matte finish SW

blank BL

tumbled

temperature resistant up to 100 °C

Sealing ring rubber NBR (Perbunan)

Threaded plugs GN 441 with the external diameter d1 match the screw-in holes for DIN 3852 pipe bolt connections.

The sealing ring is embedded in a radial recess on the plane side, which makes the sealing ring captive and cannot be squeezed out during tightening. The sealing is also relatively soft, enhancing the sealing effect also on uneven surfaces.

  • Threaded plugs with dipstick
