430-400-SW GN 430 Handgrepen

430-400-SW

GN 430 Handgrepen

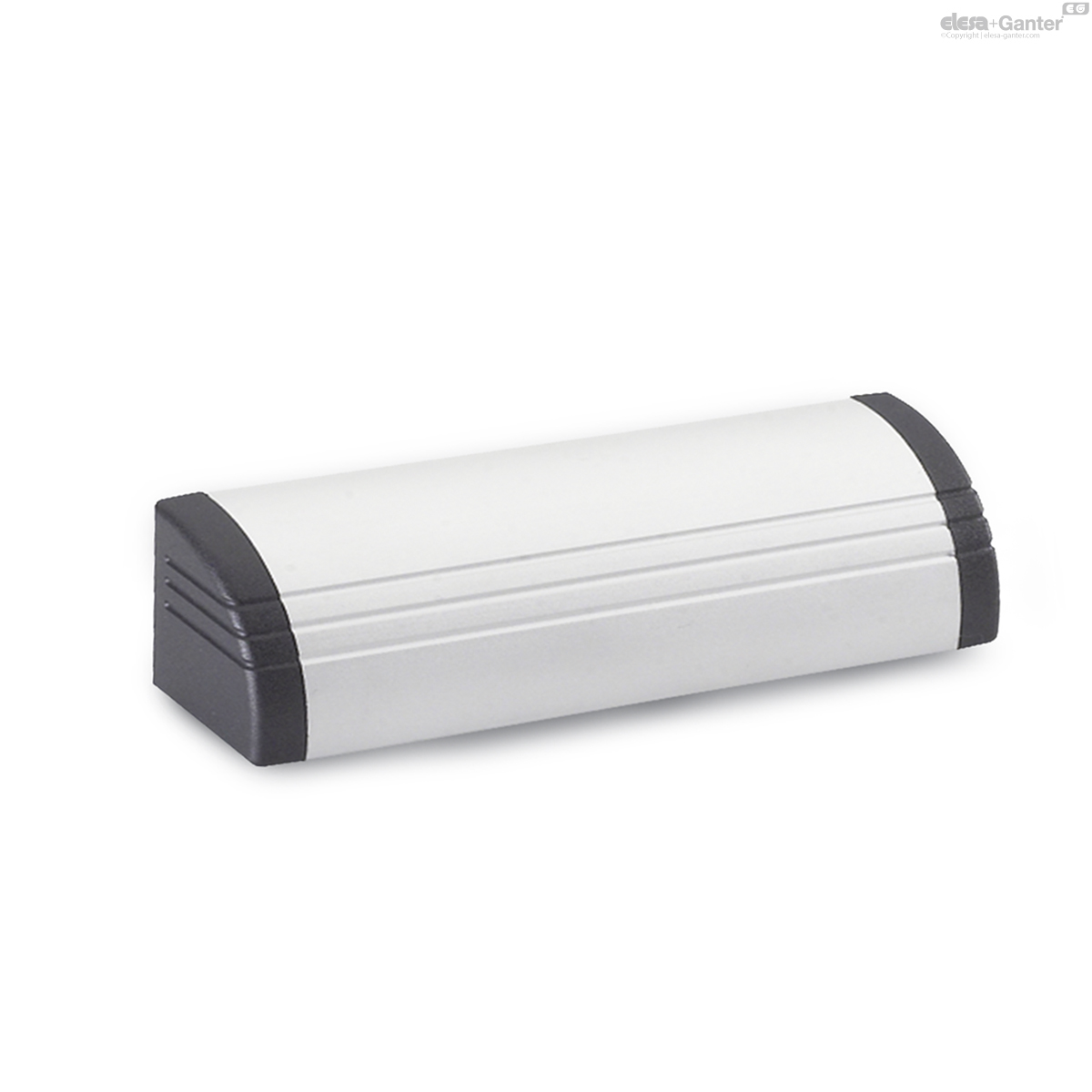

Handgreepprofiel aluminium, eindkappen kunststof
  • Icons/__logo__RoHS__.png
  • Icons/__logo__IF__.png

Lt: 1-2 weken Alle maten en varianten van GN 430

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 430-400-SW
l1
400
b1
36
b2
13
b3
8
h1
34
h2
24
l2
Screw area
356
l3
22
t
12
314

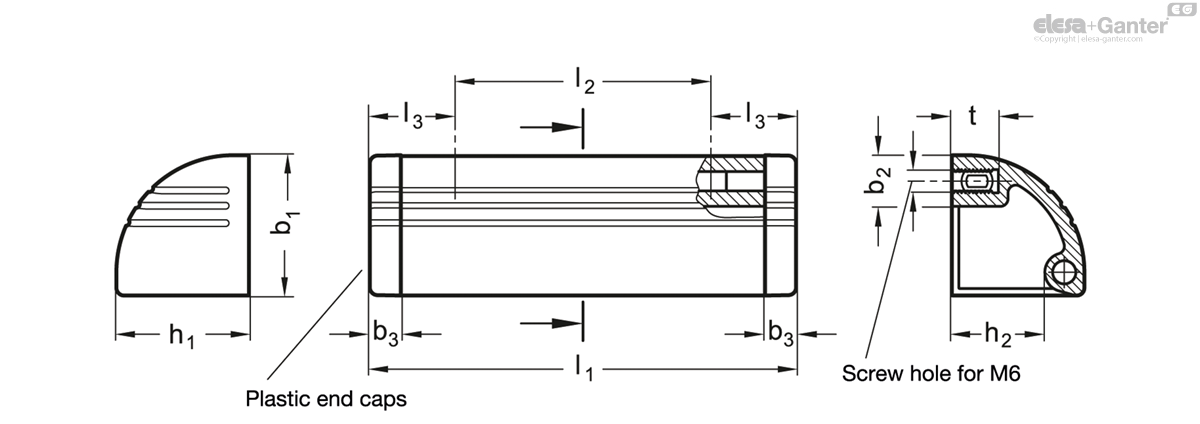

430-400-SW drawing

Handle profile

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Anodized, natural color EL

End caps

Plastic, Polyamide (PA)

Black-gray

Typical applications for ledge handles GN 430 include swivel or sliding doors on protective doors and equipment. They are also suitable for use as drawer handles.

The screw channel for screw sizes M6 allows an optional number of fixing screws in any position within the dimension l2.

Any length of the aluminum profile can be delivered and single end caps can also be delivered. Special lengths can be manufactured from relatively small quantities upwards.

  • Special lengths



Thanks to the screw channel which runs all the way through, any number of screws with standard thread M6 can be placed in any locations within the screw area l2. Please note the following guide values:

  • Minimum screw-in depth: 10 mm
  • Max. load (screw): 400 N
  • Max. tightening torque: 4 Nm
