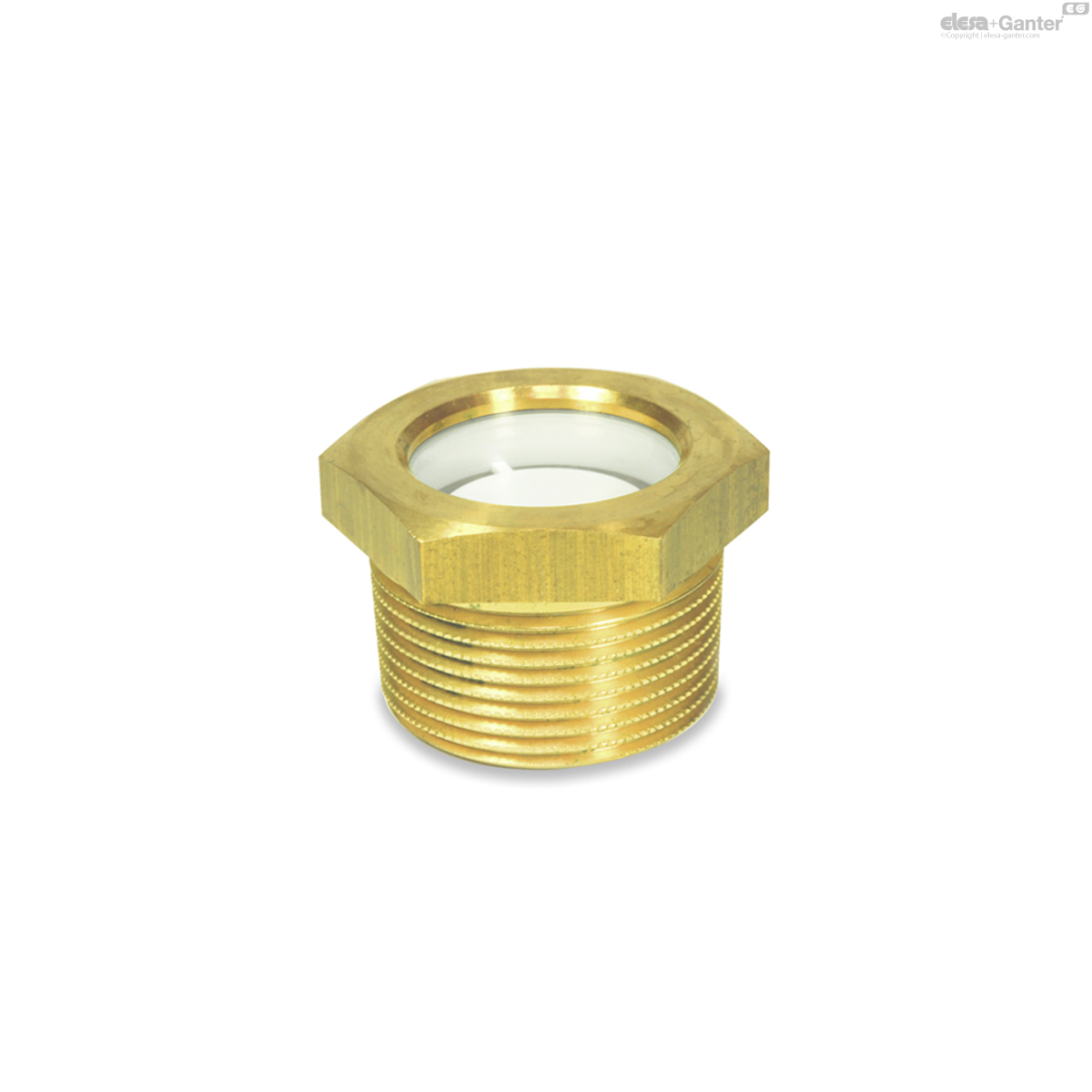

GN 743.8 Oliepeilglazen
Lt: 1-2 weken Alle maten en varianten van GN 743.8
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 743.8-24-1NPT-A
- d1
- 24
- d2
- 1 NPT
- a
- 10.2
- d3
- 33.7
- d4
- 1 NPT
- e
- 41.5
- l1
- 22
- l2
- 8
- s
- 34.9
- p
- 2.21
- 100
Types
- Type A: with contrast screen
- Type B: without contrast screen
Body
Brass
CuZn40Pb2
Contrast screen
Technopolymer (Polysulfon)
- temperature resistant up to 180 °C
- Sight glass ESG-glass
- O-Ring rubber FPM (Viton®)
Identification by not black finish of the sealing ring
The conical thread of the oil level sight glasses GN 743.8 makes a metallic seal possible. When tightening the conical male thread R it blocks itself with the appropriate cylindrical female thread Rp.
With the datum plane a the R-male thread has the same thread diameter as the Rp-female thread, so that it can be screwed in by hand. The strong tightening by means of a tool increases the length of engagement and seals the screw connection. Additionally a sealant (hemp or teflon band) is usually used. The R-thread is „roughened“, so that the sealant does not shift when screwing in.
- EPDM O-rings
