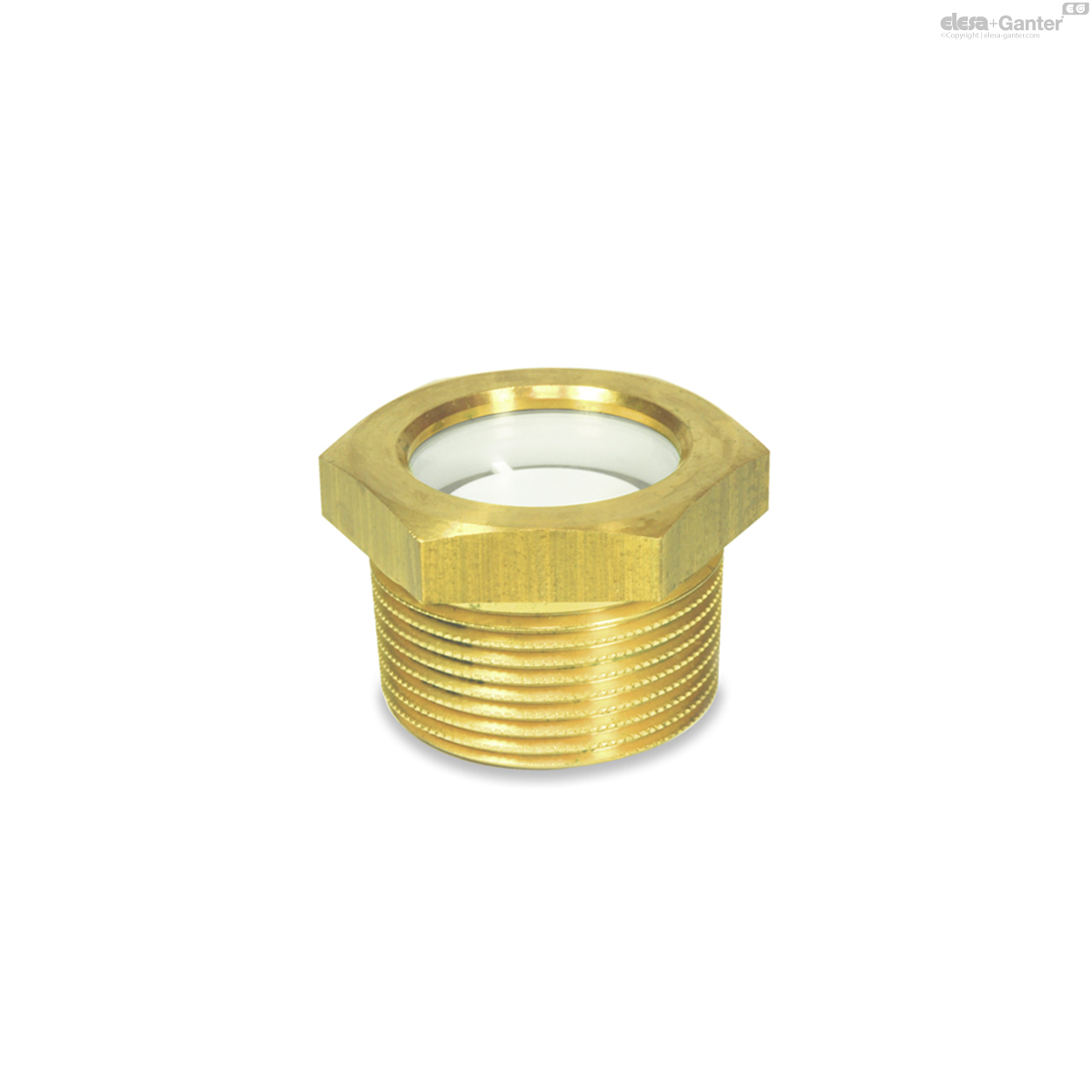

743.8-11-3/8NPT-A GN 743.8 Oliepeilglazen

743.8-11-3/8NPT-A

GN 743.8 Oliepeilglazen

Messing / natuurlijk glas, bestendig tot 180 °C
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g18020__.png

Lt: 1-2 weken Alle maten en varianten van GN 743.8

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 743.8-11-3/8NPT-A
d1
11
d2
3/8 NPT
a
6.1
d3
17.1
d4
3/8 NPT
e
22
l1
15
l2
6
s
19.1
p
1.41
27
743.8-11-3/8NPT-A drawing

Types

  • Type A: with contrast screen
  • Type B: without contrast screen

Body

Brass

CuZn40Pb2

Contrast screen

Technopolymer (Polysulfon)

  • temperature resistant up to 180 °C
  • Sight glass ESG-glass
  • O-Ring rubber FPM (Viton®)

Identification by not black finish of the sealing ring

The conical thread of the oil level sight glasses GN 743.8 makes a metallic seal possible. When tightening the conical male thread R it blocks itself with the appropriate cylindrical female thread Rp.

With the datum plane a the R-male thread has the same thread diameter as the Rp-female thread, so that it can be screwed in by hand. The strong tightening by means of a tool increases the length of engagement and seals the screw connection. Additionally a sealant (hemp or teflon band) is usually used. The R-thread is „roughened“, so that the sealant does not shift when screwing in.

  • EPDM O-rings
