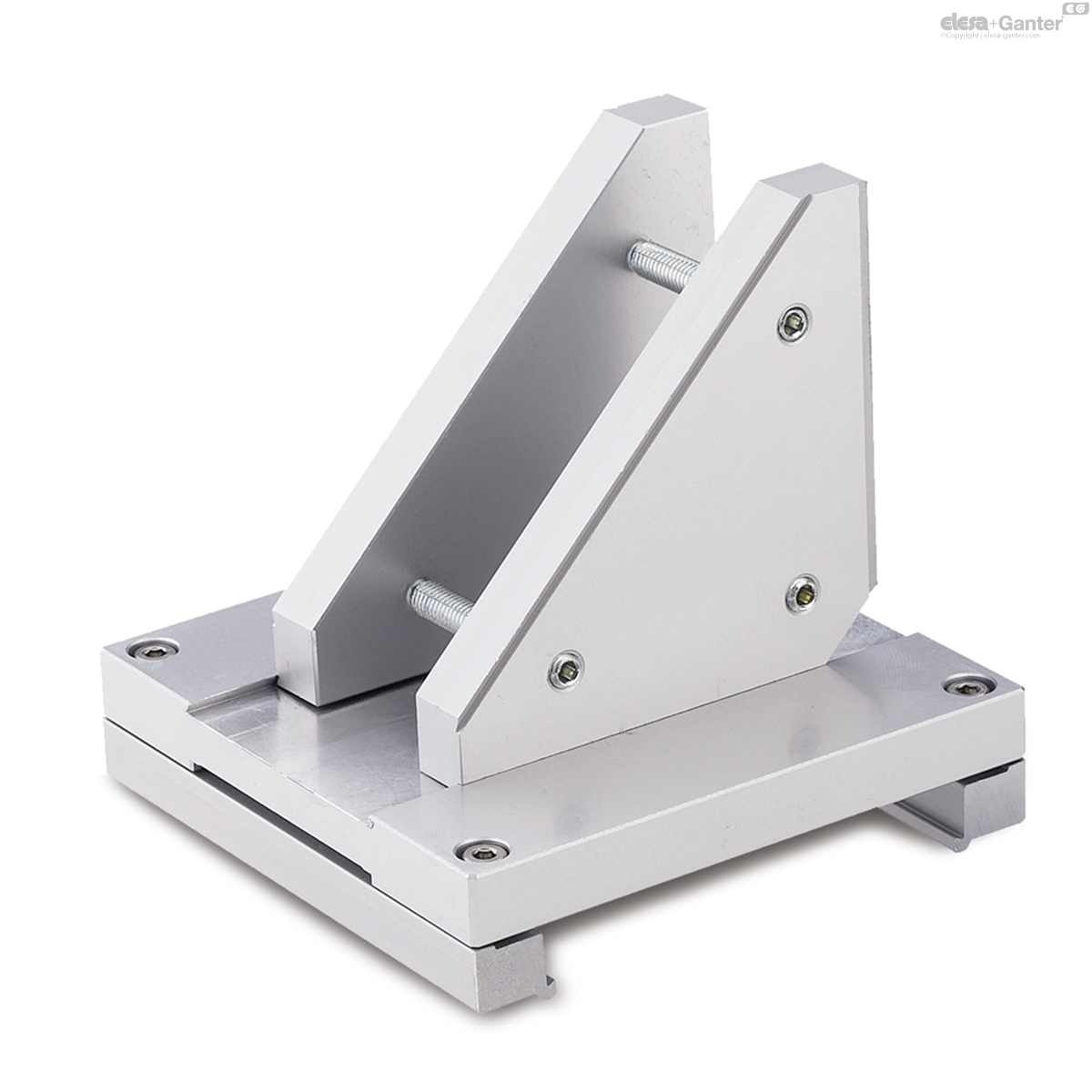

900.3-120-120-S
GN 900.3 Verbindingssets X-Z
Lt: 1-2 weken Alle maten en varianten van GN 900.3
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 900.3-120-120-S
- b Size of
the slide - 120
- l1
- 120
- d1
- M 8
- d2
- M 5
- l2
- 145
- l3
- 82
- l4
- 13
- s
- 16
- 779

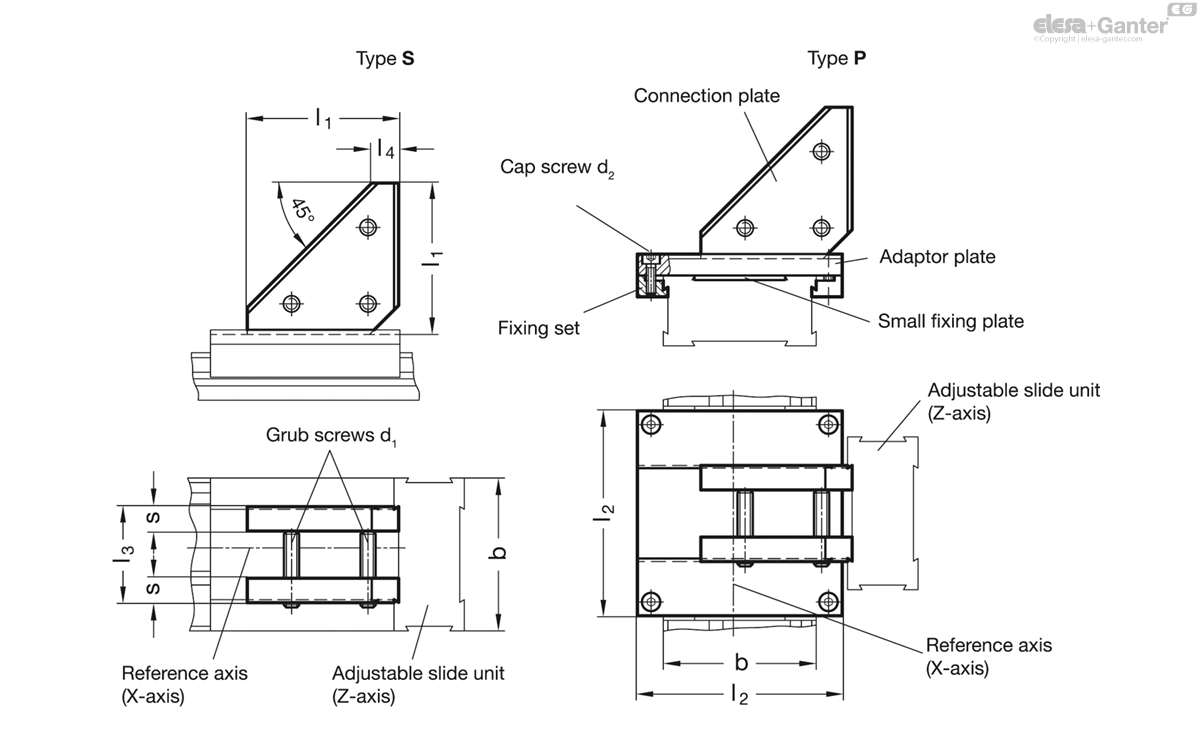

Types
- Type P: Mounting the Z-axis via connecting plate and additional plate
- Type S: Direct mounting of the Z-axis via connecting plate
Aluminium
anodized, natural colour
Grub screw DIN 913
Steel, zinc plated
Socket head cap screws DIN 912
Stainless Steel
With connecting sets GN 900.3 two adjustable slide units GN 900 can be combined to produce an X-Z axis configuration.
The combination is created by using two connection plates which eliminate any type of fixing holes in the slides. At the same time the adjustable slide unit with the Z-axis can, to a limited extent (vertically to the Z-axis), still be adjusted.
In the case of a slide configuration of the Z-axis parallel to the reference axis (type P) an adaptor plate (complete with a fastening set, small fixing plates and socket head cap screws) is required which is included in the set.
The small fixing plates serves for the 90° alignment of the Z-axis and fine adjustment of the adaptor plate (Type P).
All parts required to make up a set are included.
